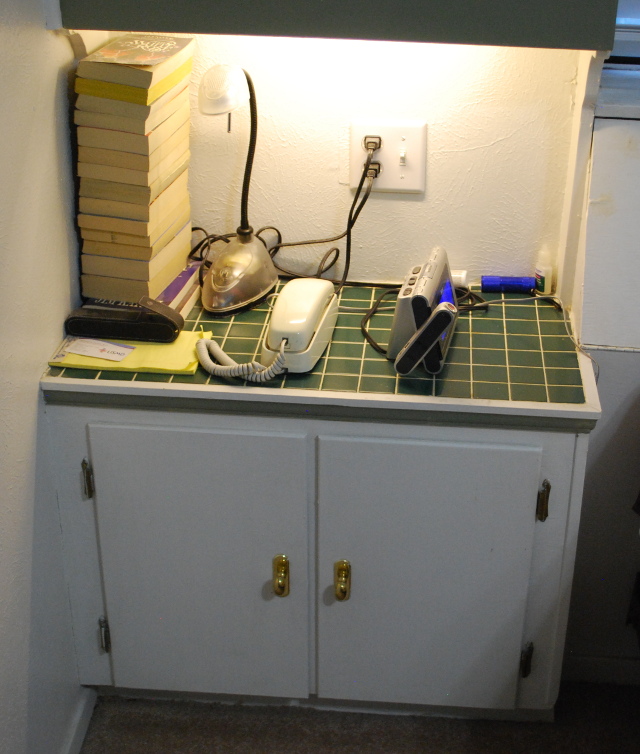

Old Night Stand	Left Nightstand	Right Nightstand
Bed Room Night Stand

The built-in nightstands were 29" wide, 15" deep and, 24" high.   The bed is 30" high.   They had two seperated doors concealing a storage space with one shelf.   Above the nightstand is a 17" gap then the bottom of a 2 shelf book shelf 40 " high.   The book shelf had a full 3-1/2" (1x4) for a lower front piece to conceal an old 24" flourescent with a magnetic ballast.

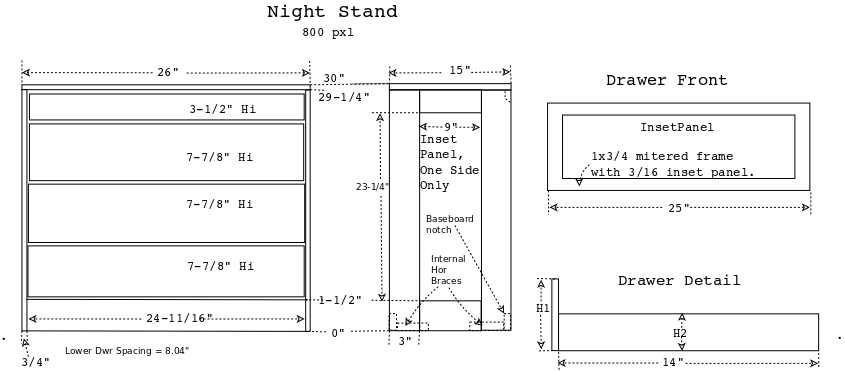

The new nightstand will be 30" high with one 3-1/2" hi drawer, three 7-7/8" high drawers, and a white Formica top and edges.   It will have a 1x3" frame, an inset panel on the side toward the bed, and a 3/16" back.

I'm going to machine all the 1x from 2x lumber because the price per board foot is dramatic.   And when I resaw a 2" thick board (1-1/2" actual) I loose 3/32" (kerf (1/16") and one jointer pass (1/32")) leaving 21/32" thick instead of 24/32" (normal 1x board).
Please see my Page on Price Per Board Foot.

I have a bandsaw, planer, table saw, and 6" jointer so I'm going to buy 2x8s then cut to len, resaw, and rip.   This means my 1x will be 21/32" instead of 24/32" (3/4) but otherwise most stuff should match.   If I have to make another jointer (or planer) pass on the original outside of the board, that'll cost another 1/32" for a total of 1/8" meaning my resulting boards will be 5/8" thick;   The trickey part is resawing 2x8s into two 1x8s.

I am making my standard shaped pulls only these will be 8" wide instead of 4".   This will make is slightly easier to open a drawer while lying in bed.

Drawer Sizing Info:
Top drawer: H1 = H2 = 3-1/2".
Lower drawers: H1 = 7-7/8" and H2 = 5-1/2".

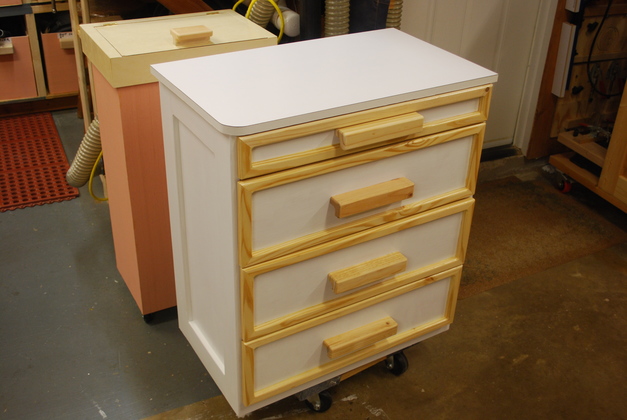

Drawers installed into one of the nightstands, ready to install in the master bed room.   This is the right hand nightstand.

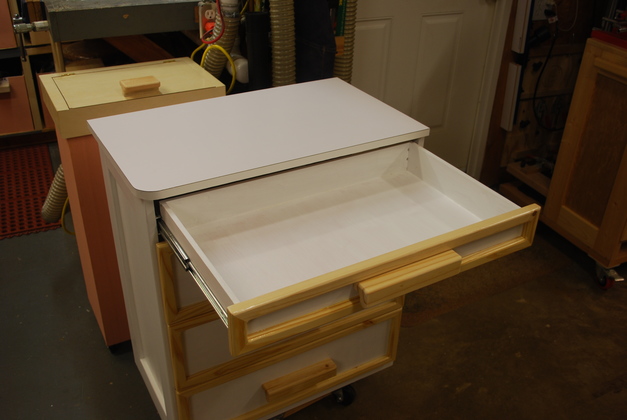

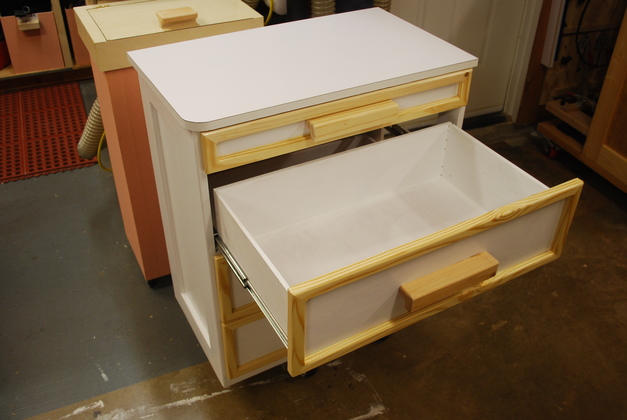

Drawers pull out quietly to full extension.

The top drawer also.

Left side installed.

Right side installed.

Finished night stand and bookcase.

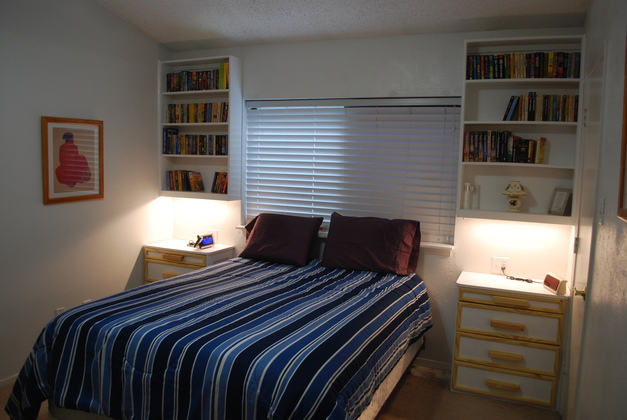

All finished, night stands and bookcases installed.
