I'm making thes entire project (except for plywood panels) from 2x8 material. The frames will be made by ripping a 2x8 into 11/32" thick slices, 3" wide. I'll join these with #20 biscuits.
![]() |

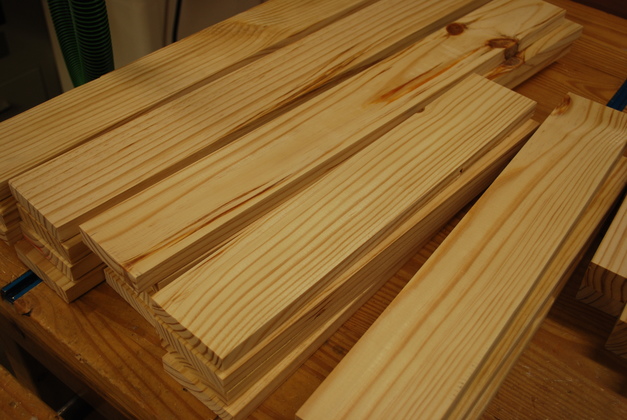

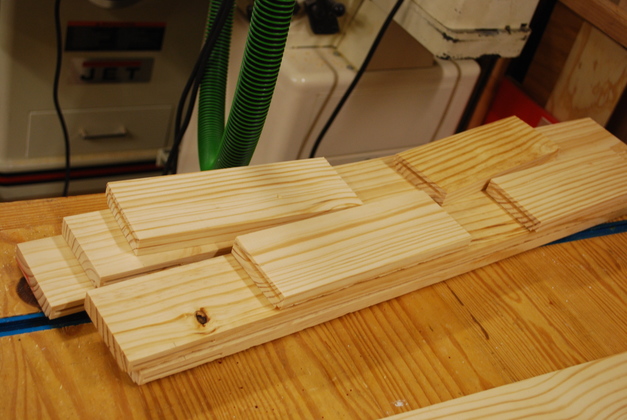

Pieces for the nightstand frames after being machined from a 2x8.
Pretty nice looking, good enough for almost any use, nice straight grain with only a few knots, unfortunately the knots are usually large, but tight.
|
![]() |

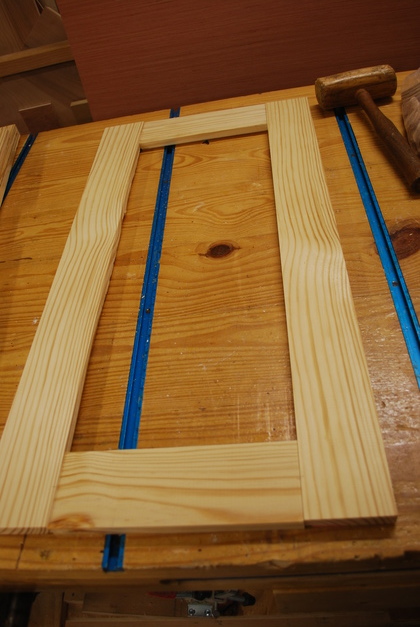

Frame sets of one of the end frames laid out. |
![]() |

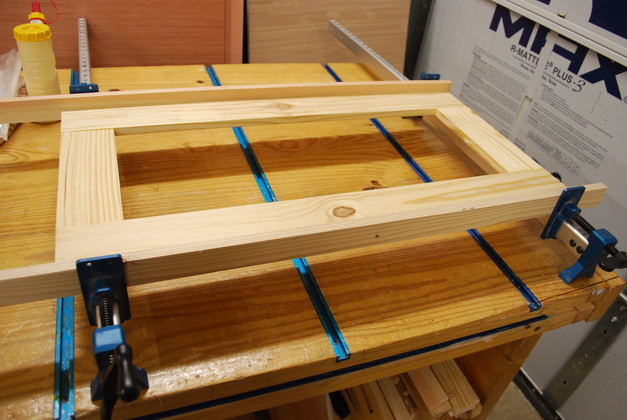

Test fit and marking biscuit positions. |
![]() |

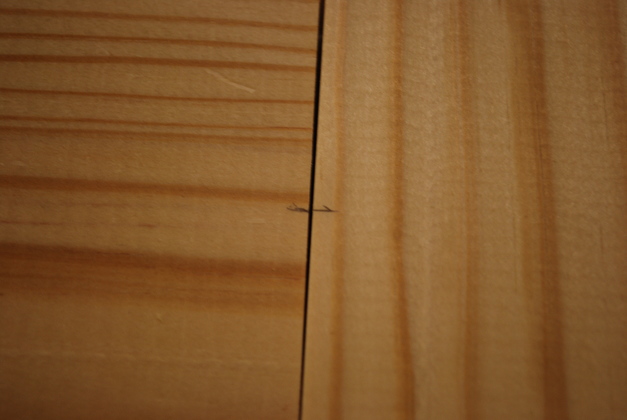

The little tic mark I make for cutting the biscuit slot. |
![]() |

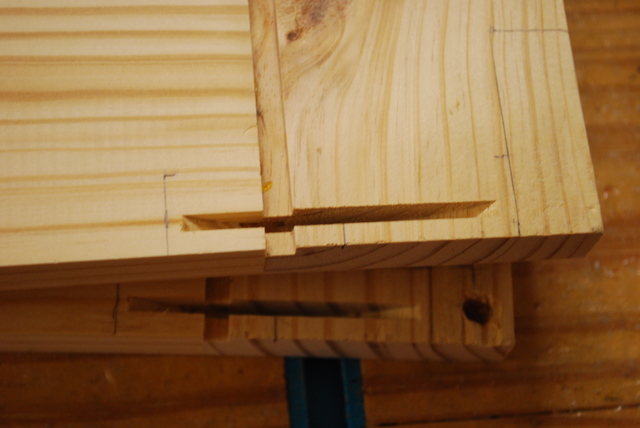

Biscuit slots cut, top piece is a frame cross brace, lower piece is a frame vertical. You can see the little tic mark on the top of the vertical where I cut the biscuit slot. |
![]() |
Inset panel rabbet machined into lower inside edge of frame piece. |
![]() |

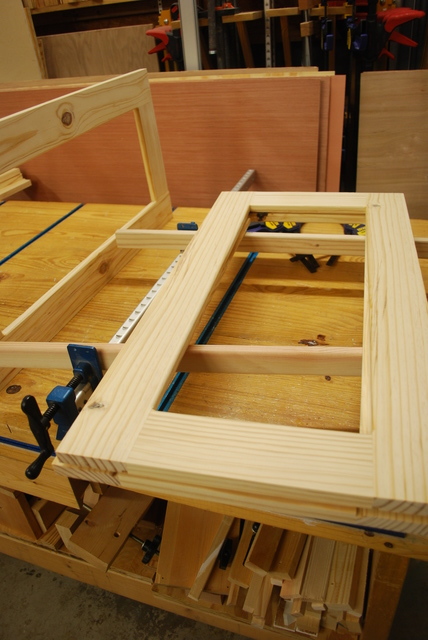

Side frame pair. |
![]() |

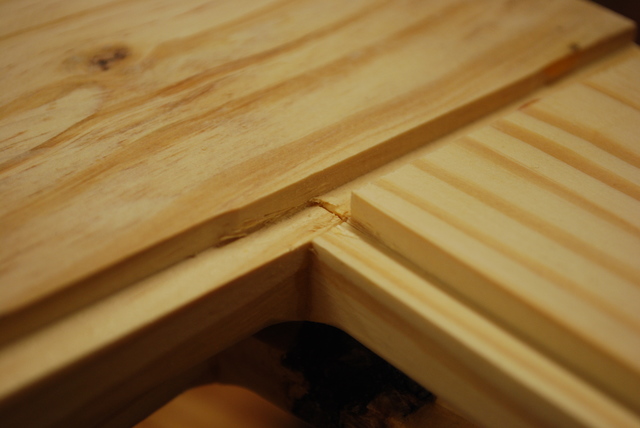

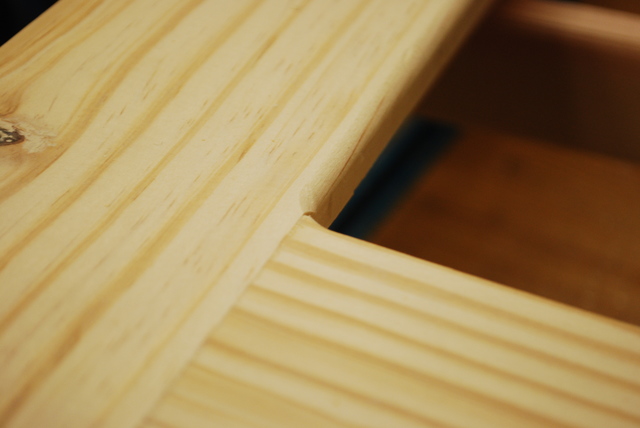

Rounded outside edge where the inset panel will be. |
![]() |

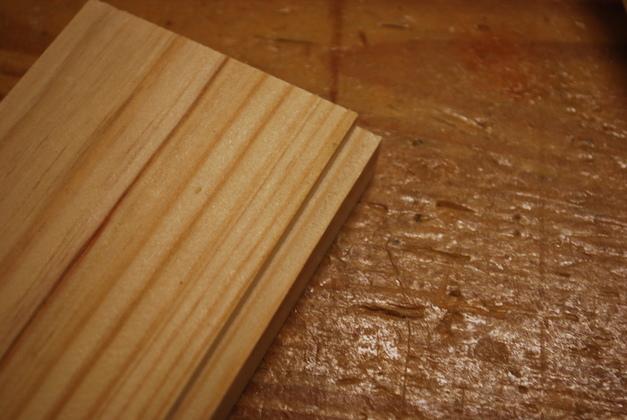

Rabbet on the under side for the inset panel. |
![]() |

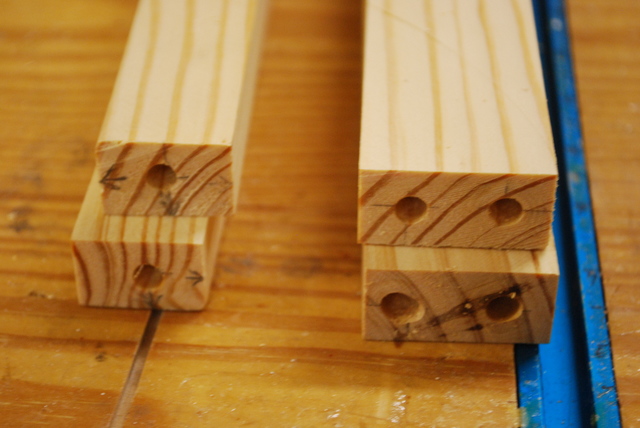

Dowel holes drilled in the ends of the small cross brace and bottom from bar. |
![]() |

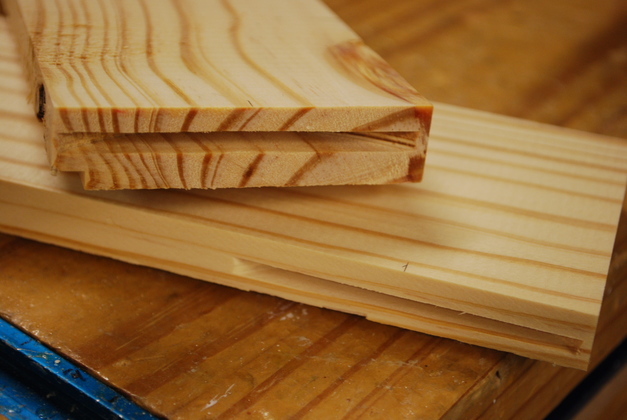

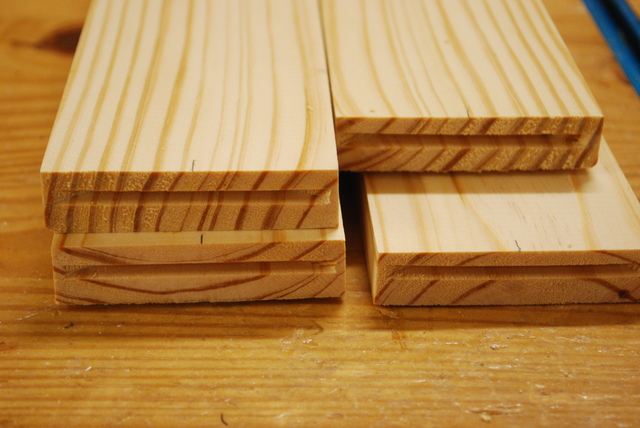

Biscuit slots cut in ends of internal cross braces. Remember these were cut from a 2x8, look at the end grain. |
![]() |

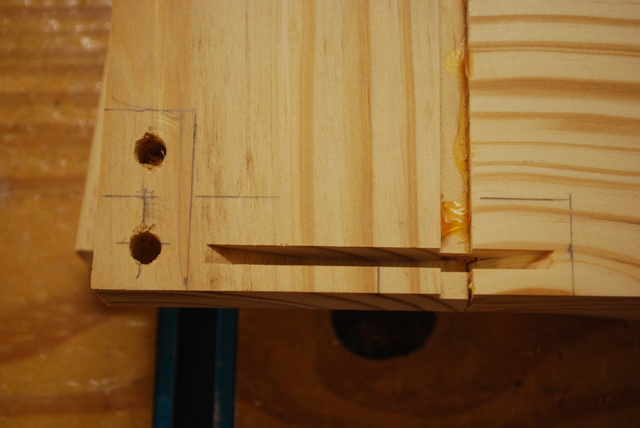

Lower inside front of one of the side braces, with biscuit slot and dowel holes for lower front bar. |
![]() |
Biscuit slot for rear bottom cross brace. |
![]() |

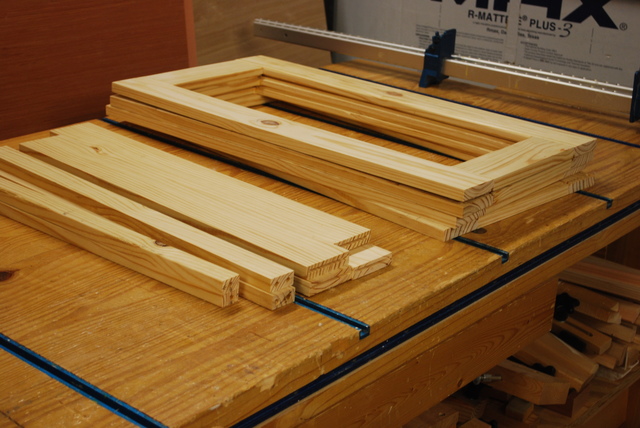

Two sets of side frames with all cross braces, bars etc. |
![]() |

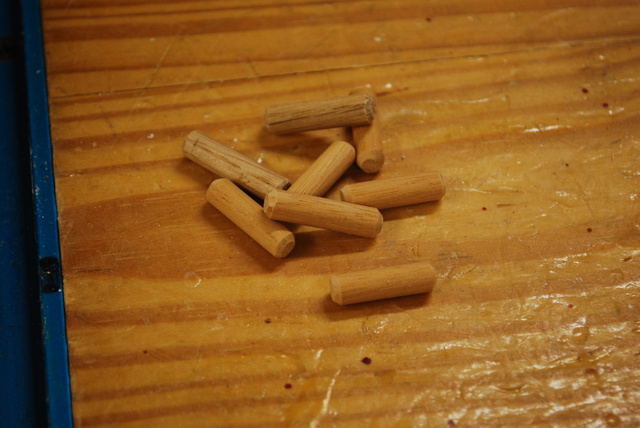

1/4" dowel pins for cross bars braces. |
![]() |

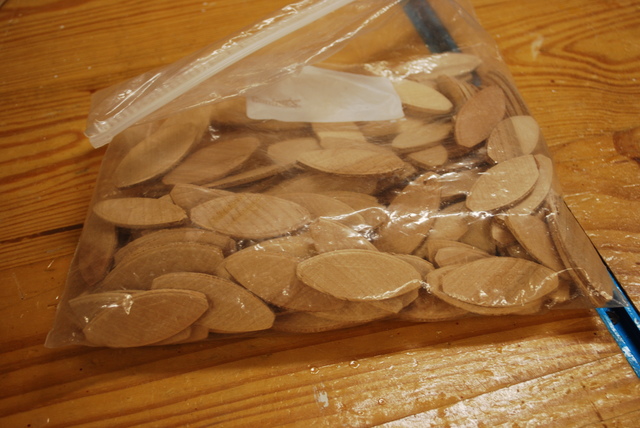

My bag of #20 biscuits. I keep them in a zip lock so they stay dry, remember they swell when damp. |
![]() |

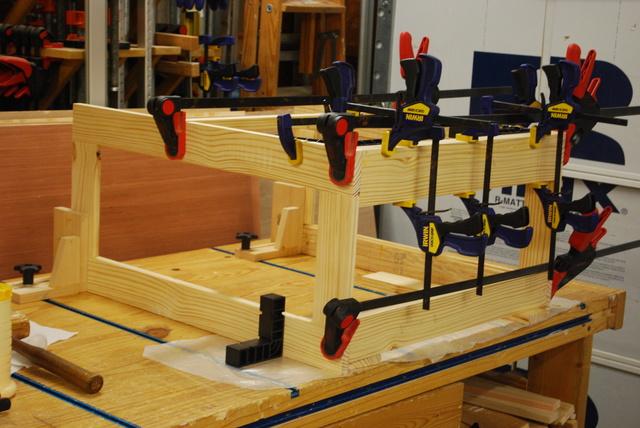

Nightstand frame in glue. I have two large Clampits holding the frame exactly square. Also have 3 6" Irwin clamps clamping the front bar to the horizontal brace, there are 3 biscuits in that joint. |
![]() |

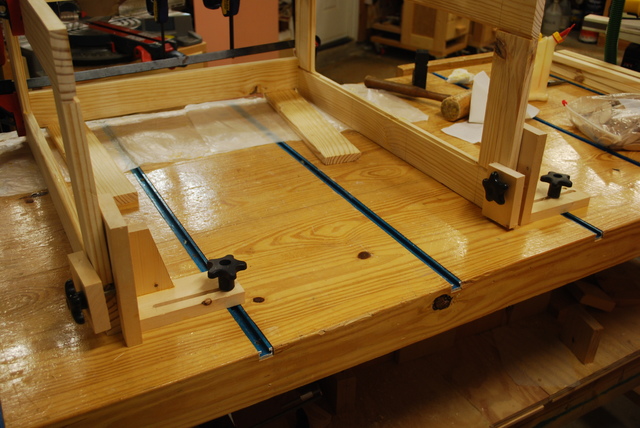

Two vertical stabilizers on holding a nightstand frame square. |
![]() |

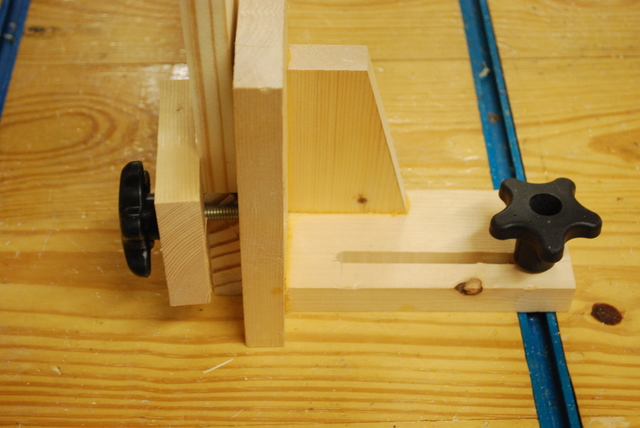

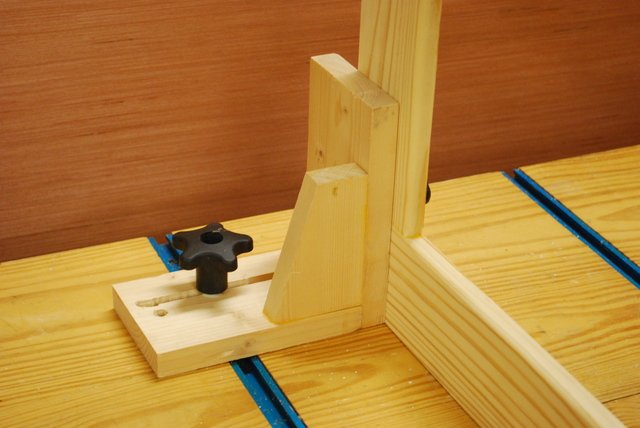

Closer look at a stabilizer. |
![]() |

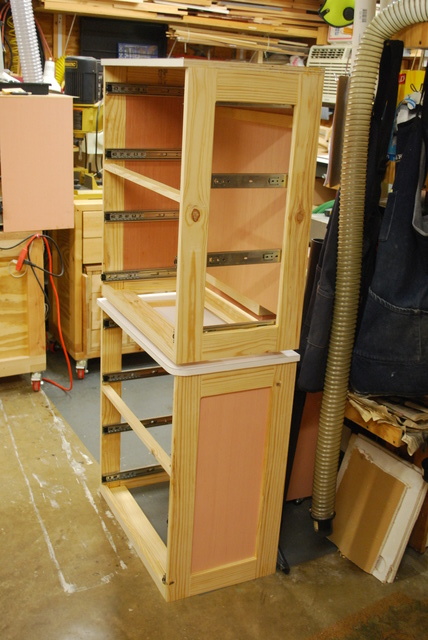

Inset panels, back and slides installed. |
![]() |

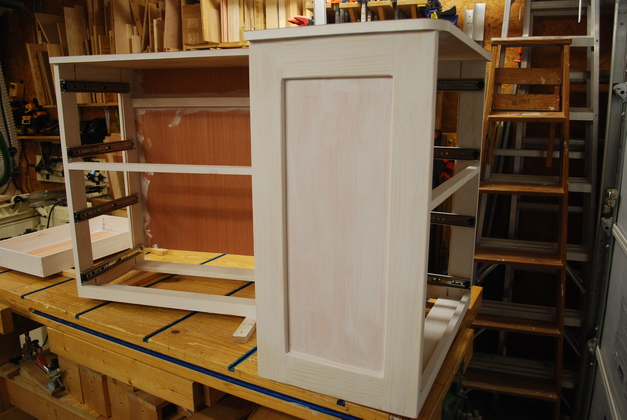

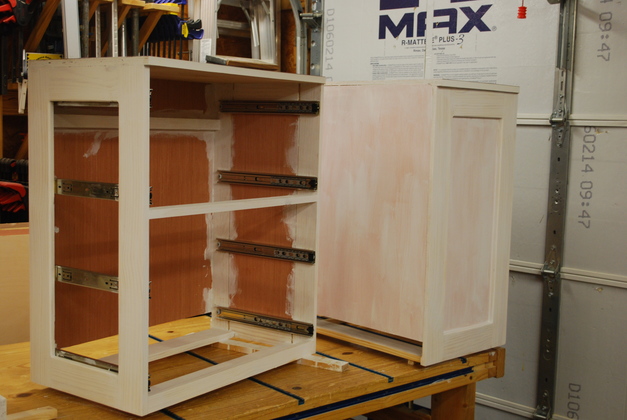

Primed. Notice the flat inset panels on the sides of the nightstands. Just a little nicer than a plain flat side. |
![]() |
Painted, I left the insdie primed. |
