Twin Bed Drawers

We decided the queen bed in the corner bedroom was way too large for the space, so I set out to design and build a single twin with storage under it.

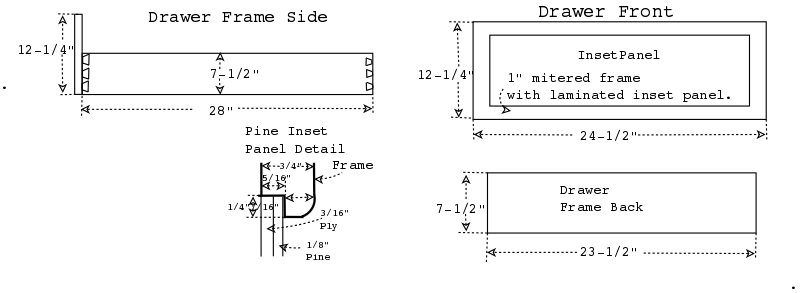

The Twin mattresses we found were 37-1/2" wide by 75" long.   The frame's 75-1/2" length, with two interim support frames, will require 3 drawers, each 24-1/2" wide and 12-1/4" high.   That leaves a little space above/below and side to side for each drawer.   The drawers will have a picture frame front but will be flush with the bed frame instead of overlap.   Each drawer front will have a pine inset panel with a 1" wide frame around it.

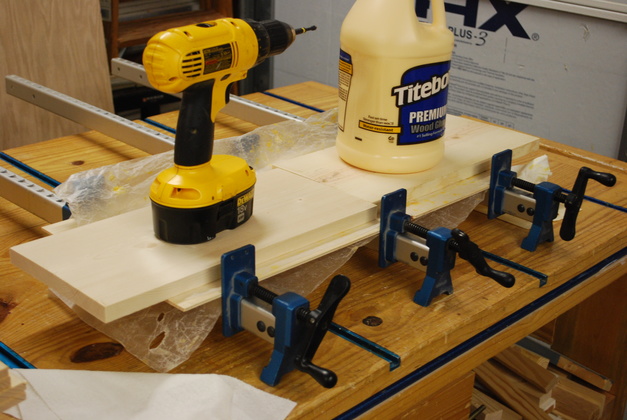

Edge joining resawn 1/8" pine panels.

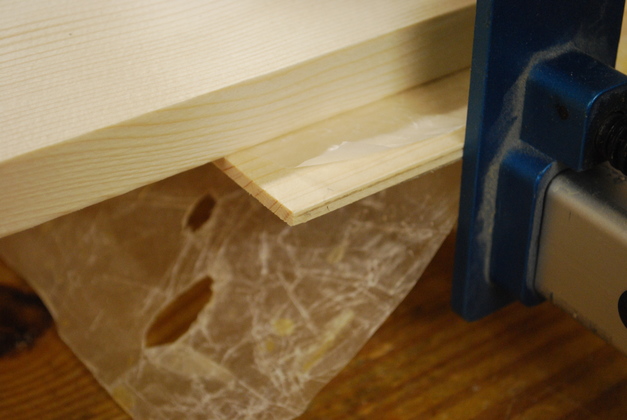

The edge of the 1/8" pine panel as its being edge joined to another.

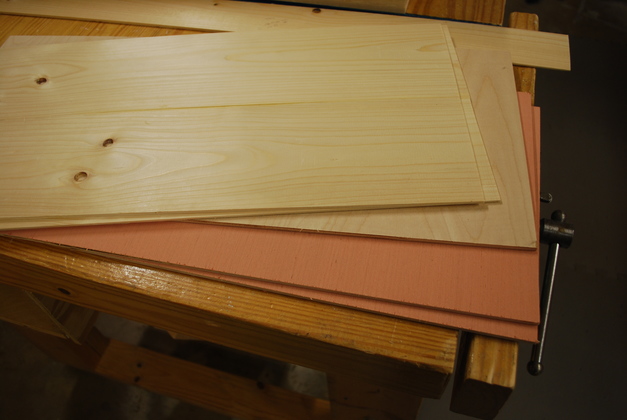

All 3 edge joined panels, ready to sand.   Notice, some of the knots are gone, we'll have to do something about that.

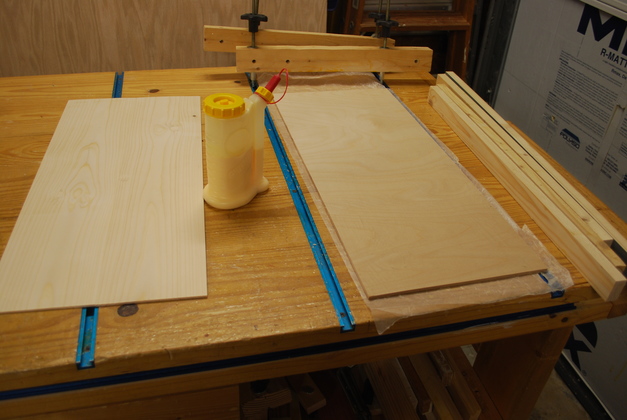

Laminating the backing plywood.

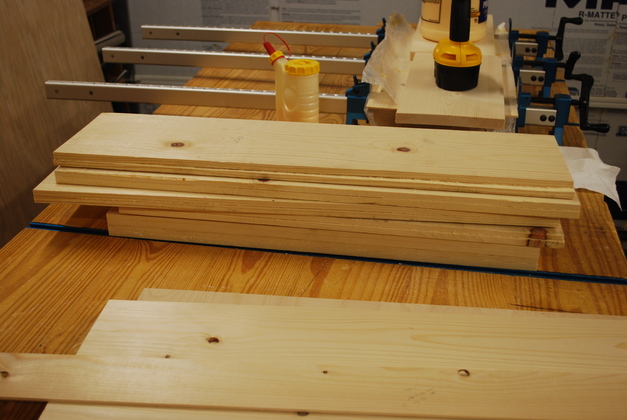

Drawer sides, fronts, and backs after resawing.
