07/25/16: Page Origin
UNDER CONSTRUCTION
Buy List
10 Pine WW 1 X 4 X 8' @ $5.83 Lowes
4 Pine WW 1 X 6 X 8' @ $9.83 Lowes
2 Pine WW 1 X 8 X 8' @ $11.52 Lowes
4 Pine WW 2 X 4 X 10' @ $3.98 Lowes
1 Sht 5mm Ply 4 X 8' @ $13.48 Lowes
3 Drawer Slides 28" @ $21 Rockler
4 Hanger Bolts 5/16 x 3" @ $1.24 Lowes
4 Tee Nuts 5/16" @ $1.04 Lowes
When you extend the prices it will cost about $225
Frame Cut List
4 Pine WW 1 X 4 X 75-1/2 Bed Rails
7 Pine WW 1 X 4 X 38-1/4 Bed Slats
4 Pine WW 1 X 4 X 35 Incl Tenons Crossframe Horiz
4 Pine WW 1 X 4 X 12-1/2 Crossframe Vert
1 Pine WW 2 X 4 X 75-1/2 Rip to 1-1/2 X 1-5/8 Bed Rail Stringers
2 Pine WW 2 X 4 X 38-3/4 Incl Tenons, Rip to 1-1/2 X 1-5/8 Top Bars
4 Pine WW 2 X 4 X 38-3/4 Incl Tenons End Rails
1 Pine WW 2 X 4 X 36 Rip to 1-1/2 X 1-5/8 Head Corner Posts
1 Pine WW 2 X 4 X 27-1/2 Rip to 1-1/2 X 1-5/8 Foot Corner Posts
1 Pine WW 1 X 6 X 38-1/4 Rsw to 1/8 FootBoard upper Pnl
2 Pine WW 1 X 6 X 38-1/4 Rsw to 1/8 FootBoard Lower Pnl
2 Pine WW 1 X 6 X 38-1/4 Rsw to 1/8 HeadBoard Upper Pnl
2 Pine WW 1 X 6 X 38-1/4 Rsw to 1/8 HeadBoard Lower Pnl
1 5mm Ply 38-1/4 X 17 Headboard Upper Pnl Core
2 5mm Ply 38-1/4 X 13 Head/FootBoard Lower Pnl Core
1 5mm Ply 38-1/4 X 18 Headboard Upper Pnl Core
Now Need 2 side drawers 24-1/2" wide and one center 24-3/4" wide

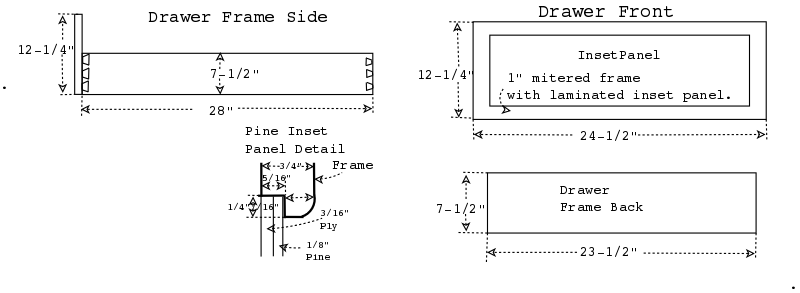

Drawer Frame Cut List
2 Pine WW 1 X 8 X 23-1/2 Rswn 5/16 Frt/Back (side)
1 Pine WW 1 X 8 X 23-3/4 Rswn 5/16 Frt/Back (ctr)
3 Pine WW 1 X 8 X 28 Rswn 5/16 Sides
Drawer Front Panel Cut List
2 Pine WW 1 X 6 X 22-3/4 Rswn 1/8 Frt Pine Pnl (side)
1 Pine WW 1 X 6 X 23 Rswn 1/8 Frt Pine Pnl (ctr)
4 Pine WW 1 X 4 X 24-1/4 Rip to 1" Dwr Frt Top Bot (side)
2 Pine WW 1 X 4 X 24-1/2 Rip to 1" Dwr Frt Top Bot (ctr)
6 Pine Ww 1 X 4 X 12-1/4 Rip to 1" Dwr Frt Sides
3 5mm Birch Ply 23-3/4 X 28 Dwr Bot
4 5mm Birch Ply 22-3/4 X 10-3/4 Dwr Frt Pnl Core (side)
2 5mm Birch Ply 23 X 10-3/4 Dwr Frt Pnl Core (ctr)
