Dust Detector

As part of the Dust Collector Automation (DustAuto) project, in order to
prevent Dust Bin overflows from clogging the filter, I wanted to include
a Dust Detector.
The dust detector would have the ability to shut down the system if the dust
bin is full.

I have made 3 attempts at bilding a dust detector for the dust bin.

1.

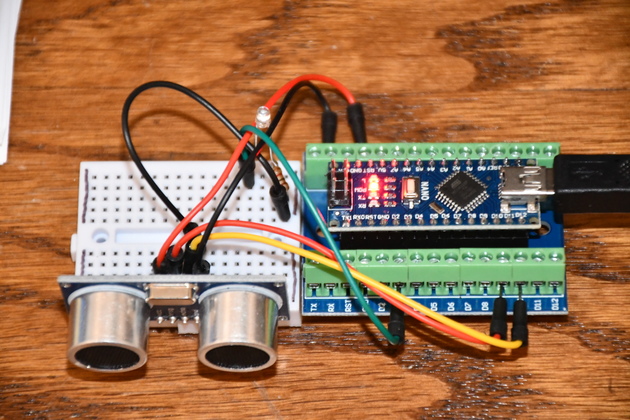

I tried an ultrasonic distance measuring device which worked great when the
dust bin wasn't full but, when the dust bin, under the cyclone, starts to fill
a cone or small hill starts to form.  As this cone forms the ultrasonic system
starts displaying more and more erratic distances.  The cone's almost vertical
sides deflect the sound pulses in many directions so the echos return after
bouncing around in the dust bin, and since the distance is based on the time of
echo return, we get many bad distance readings.  The closer to full the bin
gets the worse the distance readings.

2.
This Dust Detector will use infrared.
I looked at the Banner detector (QS18VP6D) used by Oneida's Dust Sentry, but
it was expensive ($31.19), and required 10 volts (I only have 5 volts available
unless I add another power supply), so I'm going to try some cheaper devices
first.
So far, the devices I've looked at don't return distance only a go/nogo (hi
low) with a distance pot on the device, so that means some changes to the
DustAuto program.

The sensor I'll try first is a E18-D80NK which draws less than 25Ma, available
from several sources.  The E18-D80NK costs $13 for 3 of them, about $4.33 each,
I usually buy a backup so this is not a bad deal, especially considering the
Banner device @ $31.19 (cheapest I could find).  The only thing unusual about
these sensors, the 3 wire color choices, BROWN: +5, BLACK: output, BLUE:
ground.  These sensors have a tiny little pot (potentiometer) on the back end
to adjust the distance it will trigger on and an LED which lights when
something is too close which is handy for setting it up.  It's output needs a
pullup resistor and goes low when something is detected in it's range.
The info on it says it has an NPN, normally open output, I'm thinking an open
collector, so I'll make sure the Nano sketch uses a pullup on that pin.

3.

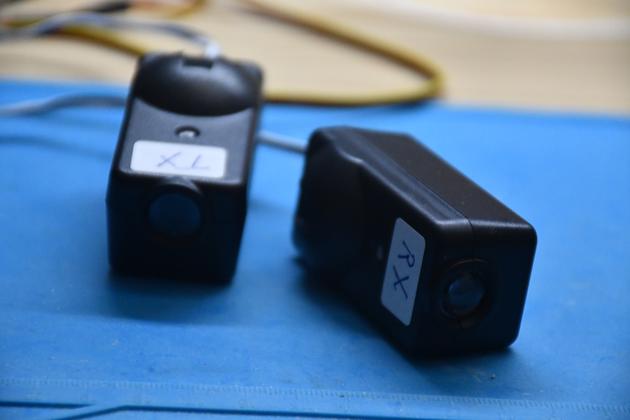

The 3rd dust detector uses a 41A5034 Safety Sensor (garage door safety sensor),
or photo eye.  I want the sensor to run on 5volts, and this guy does. The
output is either a negative pulse stream at 600Hz (which pulsein() returns the
pulse width about 450Us) or a 4 volt dc voltage, which pulsein() returns as
zero.

I decided to retain the other IR since I don't enjoy cleaning out a clogged
filter and redundancy is good.

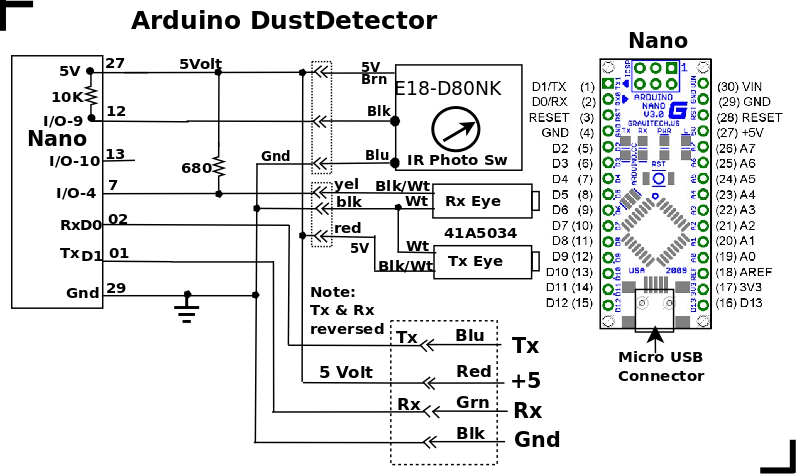

Changes to the hardware are minimal, I only added a 680 ohm pull-up resistor
for the beam receiver, everything else was just connections.

Changes to the software was also minimal, I added one function to read the
sensor, and make sure it had a number of blocked before it cried wolf.

CLick For Larger Pic

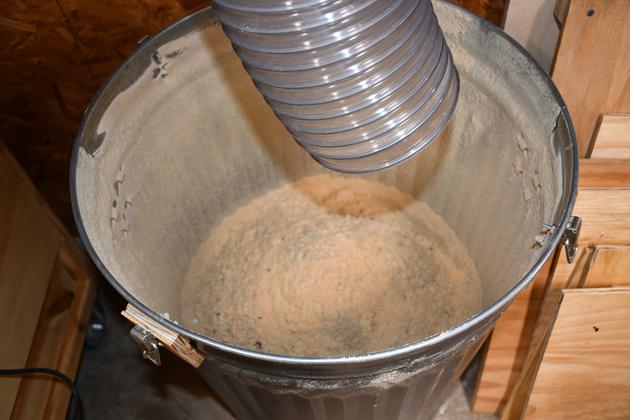

Dust 'cone' in dust bin, its a little hard to make out but look closely.   The sides of this 'cone' reflect ultrasonics all over the place, hence, ultrasonics don't work well for detecting top of the pile.

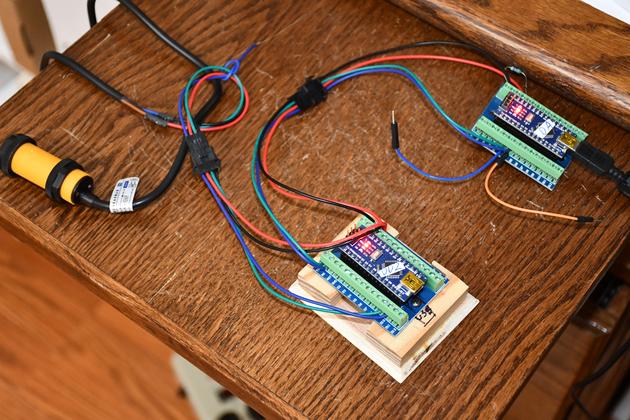

My test rig, the Nano in the foreground is the actual DestDetector2, still mounted on it's base.   The Nano at the top is on another Nano breakout board and connected to the Arduino IDE running on my workstation.   The yellow device on the left is the E18-D80NK Infrared detector. I have found this to be a good method to test and actually build Nano based devices.   I use 4 wire JST male and female connectors with wire pigtails.   When all the wires are screwed down in the screw terminal blocks, this is very reliable.

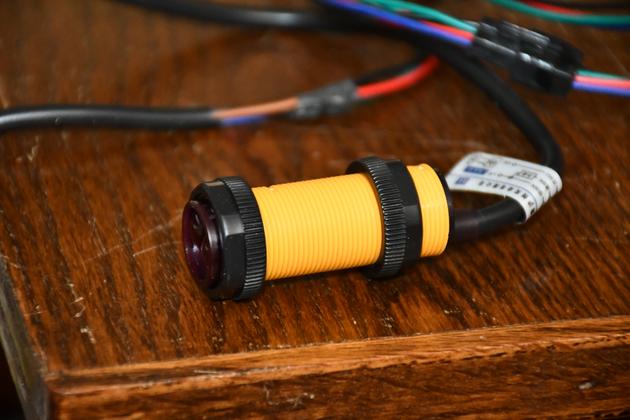

Close look at the E18-D80NK, infrared detector.   The detector is 3/4" in diameter adn 2" long.   The housing is threadded and the two black plastic knurled collars are threadded and used to clamp the sensor into up to a 1-1/2" thick mounting board.

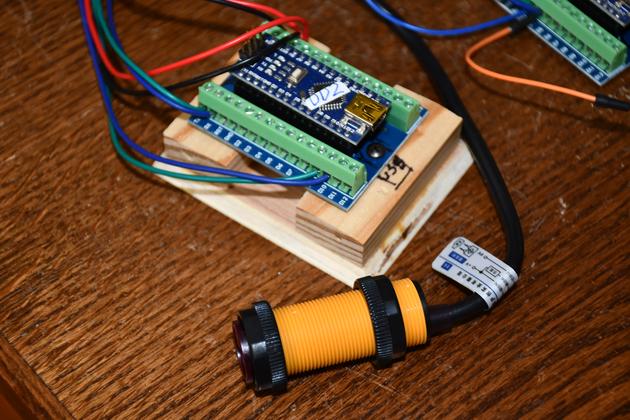

The E18-D80NK next to the Nano DD2.   Note the Nano breakout board is mounted on it's bottom for the Nano Mount.

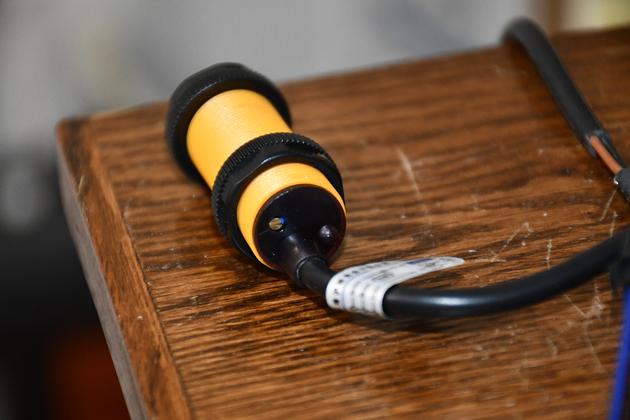

Back end of the E18-D80NK, the pot is on the left and the LED is on the right.

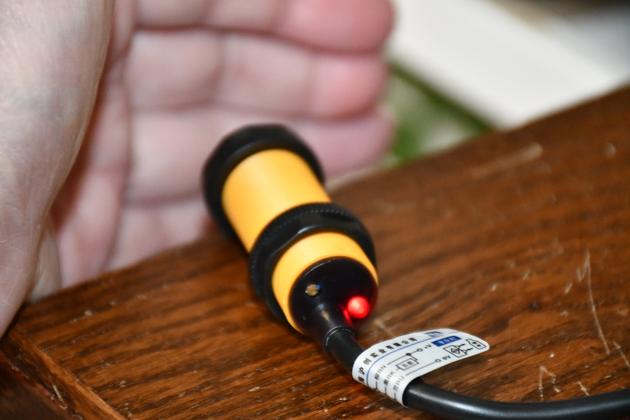

Object detected, red LED on.

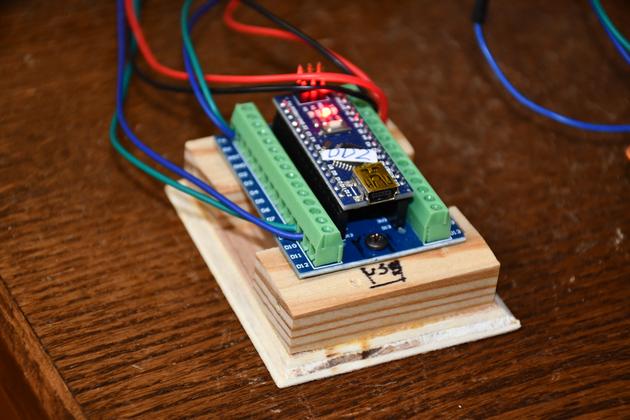

The DustDetector2 Nano mounted on it's cabinet base.

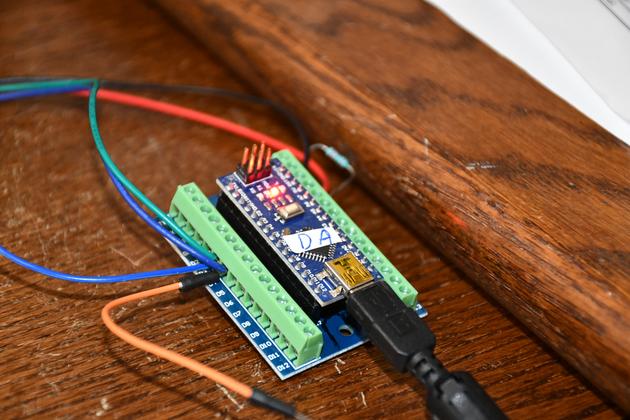

This a another Nano, on a Nano breakout board, running the Dust Auto program.   I can use the Arduino IDE to enter data and display it's outpu just like the terminal in the actual system.
