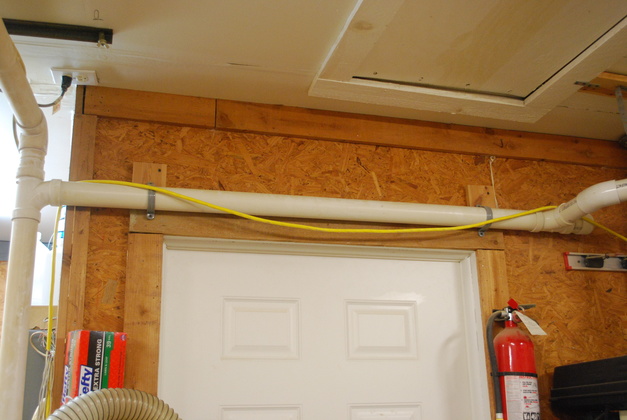

| Above the door to the utility room, this is where the new 2" plenum will be. The vertical PVC on the left goes down to the DC and the tee to the router table. I'll have to split off the DC from the router table add another vertical to the DC. The horizontal back over your left shoulder goes to the West side free hose at the end of the woodworking bench. The horizontal across the top of the door goes to the spindle sander/10" bandsaw. |

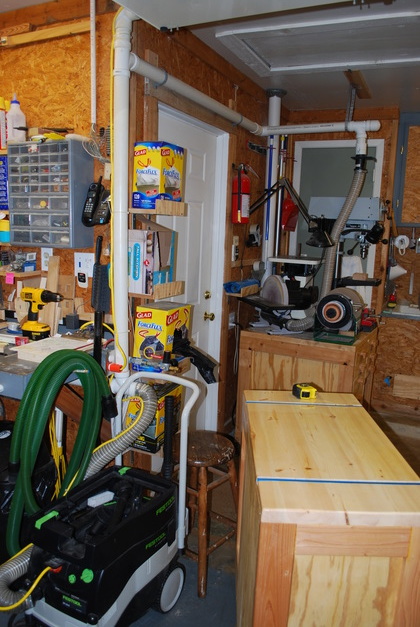

| You can see the Ct-22 on the floor, the vertical and one of the horizontal lines, not obvious is the 2" line under the bench to the router table. You can just barely see the 27quot; line leading from the tee under the bench to the router table out of the pic on the left. |

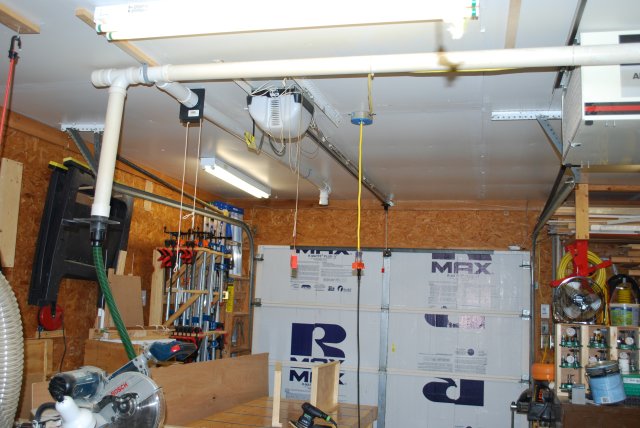

| Western end of 2" VacSys. You can see the free hose (green) hanging down from it's blast gate. You can also see another blast gate heading to the other end of the woodworking bench, I've never needed that line. |

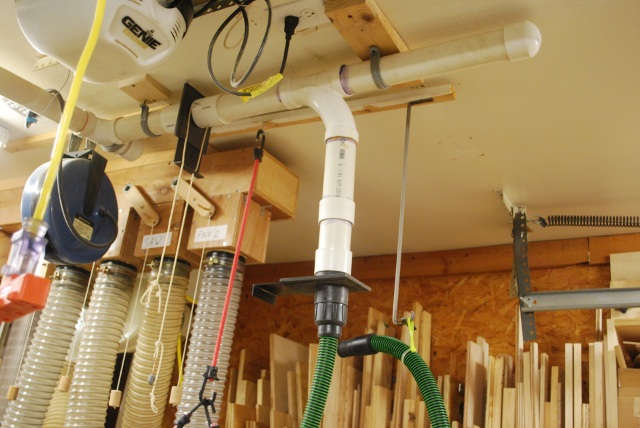

| Better pic of the West end of the vac sys, I'll remove both blast gates. |

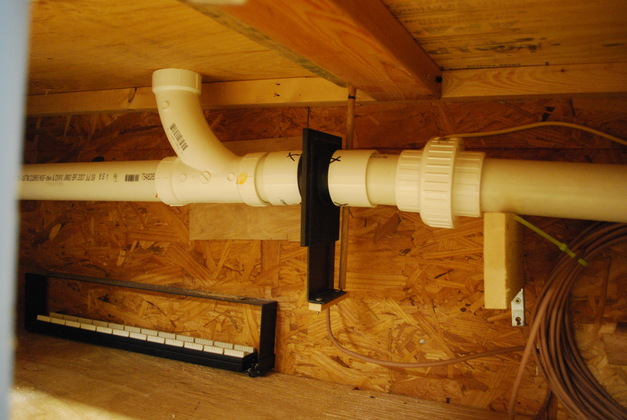

| 2" blast gate under the router table. Note the 3/8" vertical wooden rod behind the gate, it lets me control this gate from above. The line curving upward is for the dust port in the router fence, the one extending to the left is for the router box's clean out port. Note the 2" union, so I can break the line to clean the gate. With the new system I will remove this gate. |

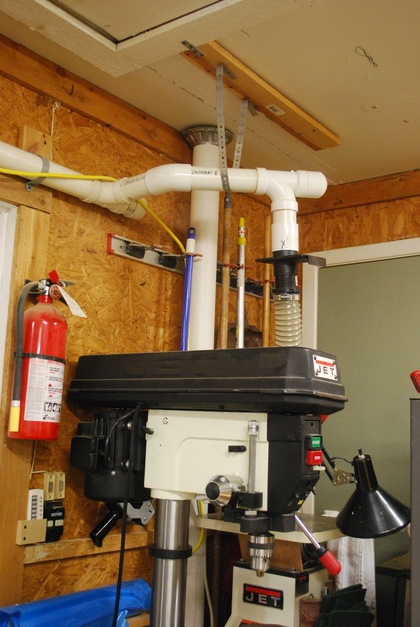

| Just to the right of the door line to spindle sander/10" bandsaw and it's blast gate. I treat this like a free hose, normally on the 10" bandsaw, can move to the spindle sander or the drill press fence. |
