Delta Drill Press Chuck Key Holder
07/08/13: Page Origin.
I had a Rockwell Delta drill press I purchased in about 1965, it was old but worked well, for it's age, but I decided to get a more modern drill press that had neat features like a crank to adjust the height of the table, and a light so I decided to buy a new Delta drill press.
When I got it home I realized that sometime over the years, Delta had omitted something I had grown quite fond of, a boss with a drilled hole to hold the chuck key.
I thought about it for a little while and came up with using a nylon tie wrap attached under a bolt to hold my new chuck key.
BTW, the Delta lasted about 3-1/2 years then a pin holding in a bushing inside the Reeves Drive wallowed out, and Delta doesn't make or sell parts anymore, so I had to get another DP, this time a Jet.
I added a key holder to the Jet-17.
Delta Drillpress Key Holder
|

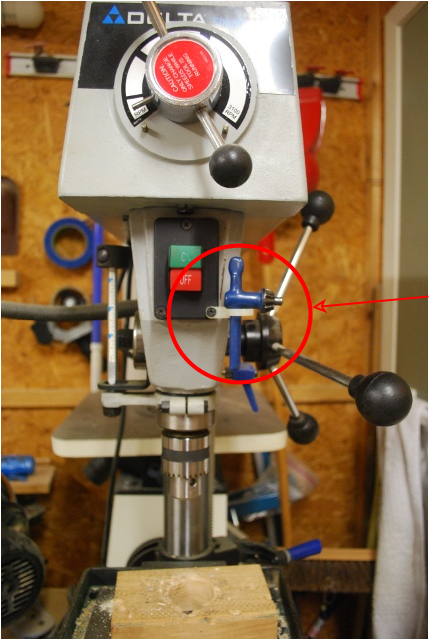

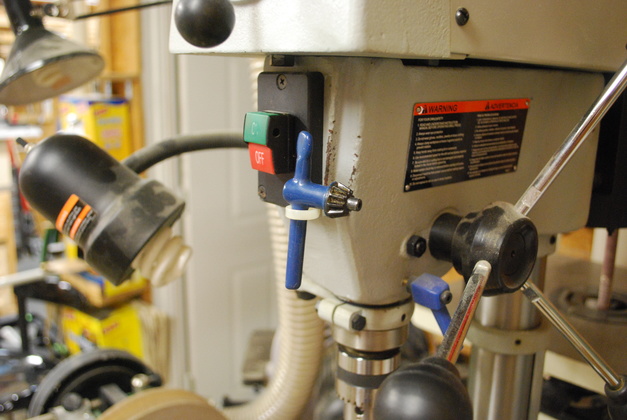

Heres the front of the drill press, note the chuck key in the tie wrap loop attached to a bolt, on the lower right of the switch.
|
|

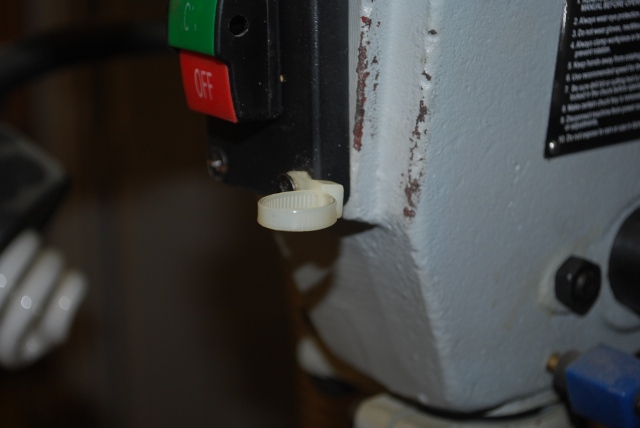

A pic from the right side.
|
|

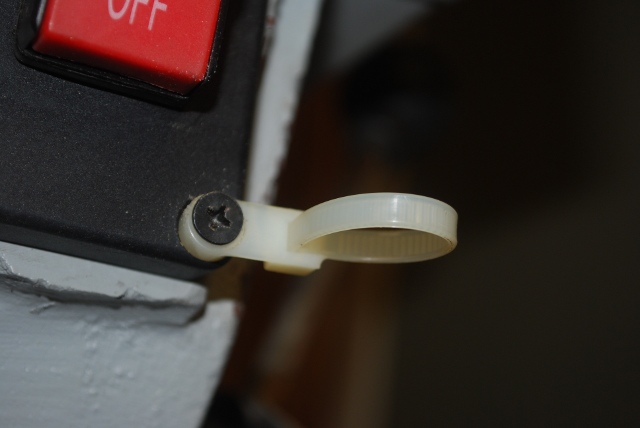

From the front without the key.
Its just a cable tie I got a Lowes and an existing bolt.
But it is every so handy.
|
|
With the chuck key.
Its handy and not in the way of anything.
|
|

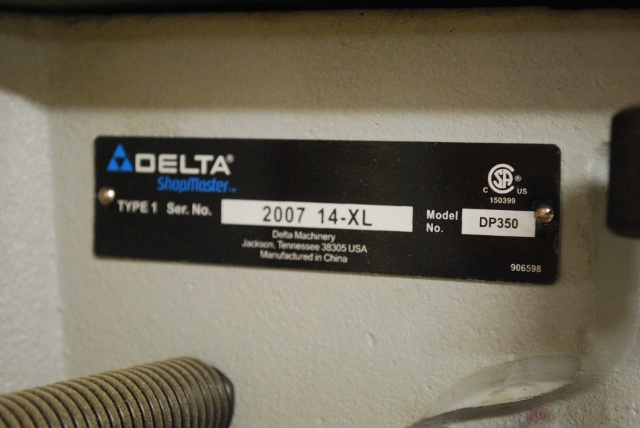

Its a DP350 Drill Press
|
|
A shot of the entire drill press on what I call my multi-bench.
|
|

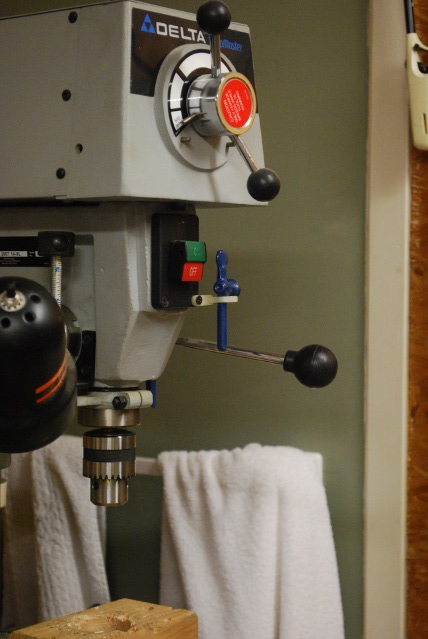

A pic from the left side.
|
Jet Floor Drillpress Key Holder
|

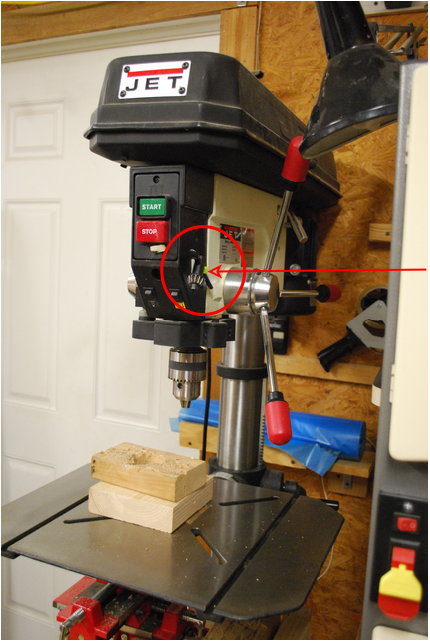

17" Jet Floor Drillpress with my add-on chuck key holder (Red Circle.
|
|

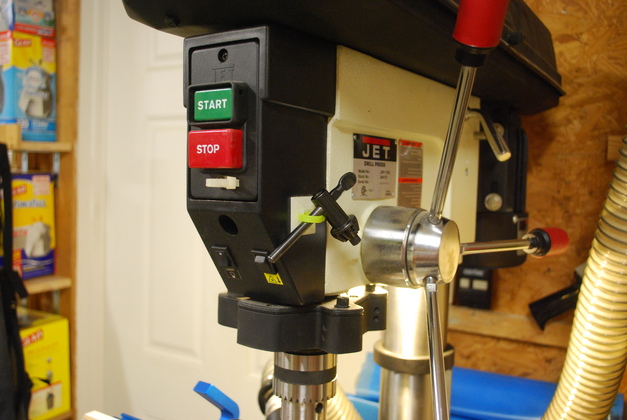

Key holder on my 17" Jet Floor model.
|
|

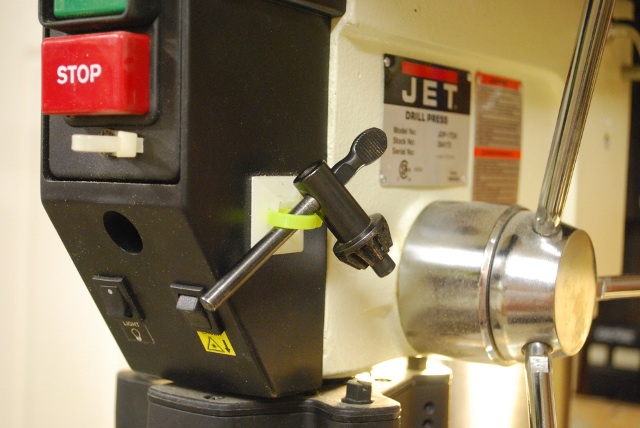

Closer look at the Jet-17 key holder.
Instead of using an existing bolt (there wasn't one available) I used a stick-on cable mount with a cable tie.
|
