Maintenance
|
12/25/21: Page Origin
Installed 12/21.
Filter
The filter cartridge is 65mm OD, 40mm ID, and 45mm hi.
Since I can't find an exact match, it appears the best thing to do is replaceboth filters.
The threads into the heads are 1/2" NPT, and there are a lot of filters on Amazon that will fit and they have replacement cartridges for them.
|

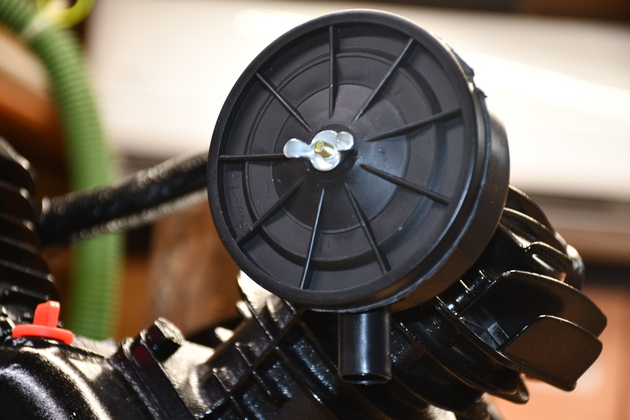

Pump filter housing.
|
|

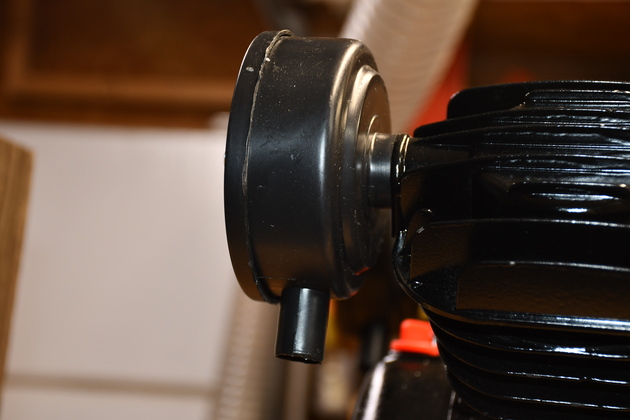

Side view of one of the pump's filter housing.
|
|
|

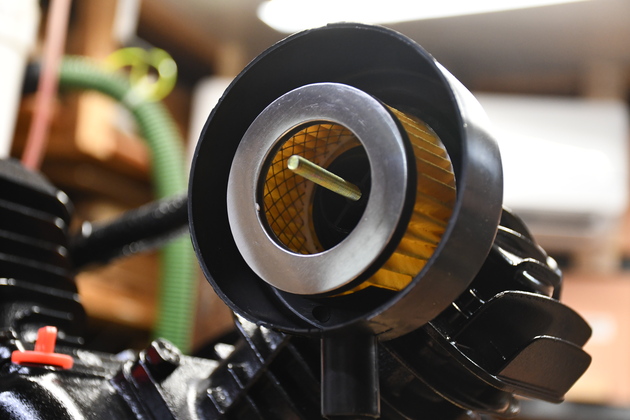

Filter cartridge inside housing.
The filter cartridge is 65mm (2.6")OD, 40mm (1.57") ID, and 45mm (1.77") hi.
| OD | ID | Height
|
| 65mm (2.6")
| 40mm (1.57")
| 45mm (1.77")
|
|
|

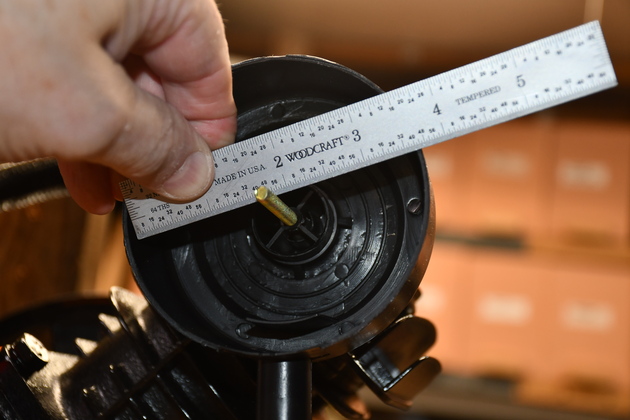

Scale showing filter OD = 3-5/8".
|
|

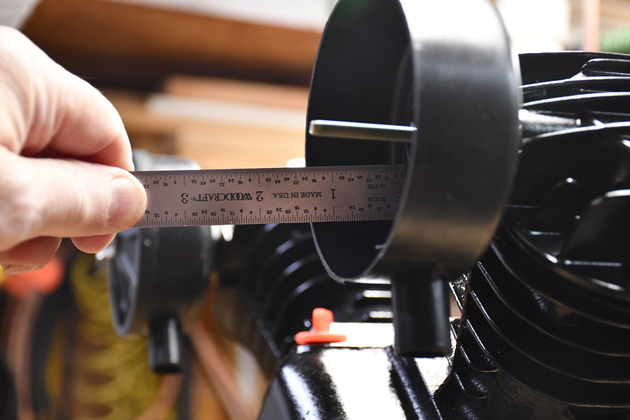

Filter housing depth is1-1/4"
|
|

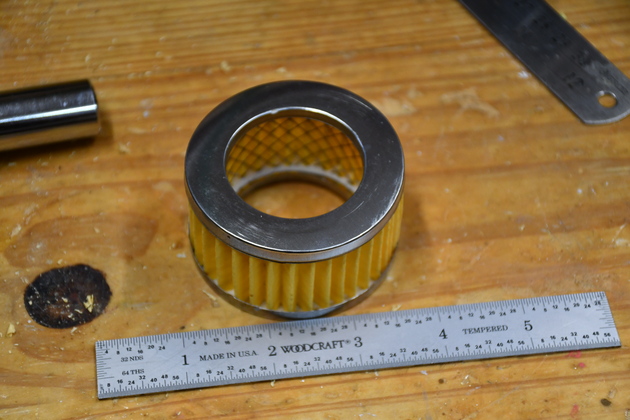

Filter cartridge.
|
|

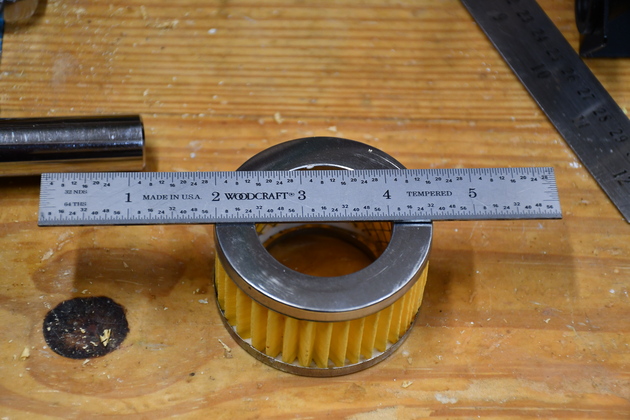

Filter cartridge OD = 2-1/2".
|
|

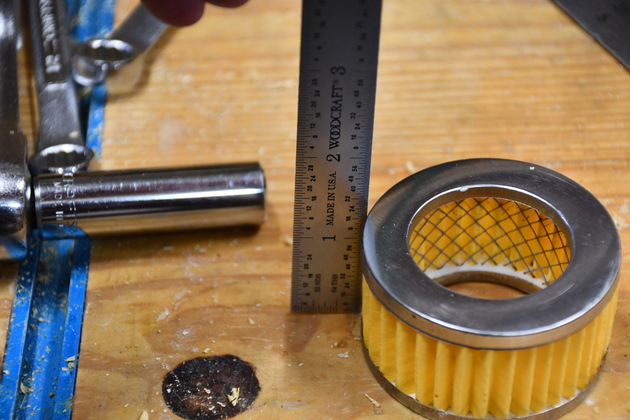

Filter cartridge height = 1-1/4".
|
Oil Change
Compressor Oil: 20 or 30 weight, non detergent, not engine oil.
It took about 16oz. (≅500ml) to fill the compressor's crank case.
|
Red circle is the oil fill cap, Green circle is the sight glass (should show cover 1/2), and Blue circle is the oil drain.
I started out with oil from Chicago Pneumatic, the primo American pneumatic tool company, they should know compresseors.
|
|
|
Close look at sight glass showing oil level. It took a little over than 16oz. (≅500ml), about 1/2 qt., to fill the compressor's crank case.
|
|
Funnel used to fill pump's crankcase.
This is the smallest funnel in the set, It's tip will actually screw partway into the compressor's oil fill hole.
|
Check The Belt
The belt is a 48" 1/2" V-belt.
D&D Power Drive: A46/4L480 V Belt, A/4L, Rubber, 1/2" x 48" OC.
The belt's span is 13.5"

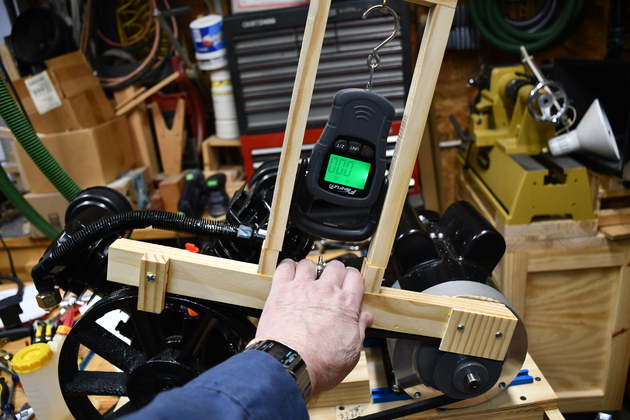

According to this doc when new, the deflection should be 13.5/64 = .21" with 5.4Lbs of force.
When the belt has worn the deflection should still be .21" but with 3.6Lbs of force.
