I have been an AMD fan for ever.
I have been using AMD Ryzen 3 2200G switching to AMD Ryzen 7 5700X
To remove a CPU cooler (fan/heat sink) release the cooler's screws (or lever)
then gently pull up while rotating back and forth.
I have been using Ryzen 3 processors in the last fwe years, but have decided to
move up to Ryzen 7 5700X.
The primary caveat about moving from Ryzen 3 2200 to Ryzen 7 5700X is
the 7 needs a higher capacity cooler. At lease 65W
| AMD Ryzen 7 5800 | |||||
| 8 Cores | 16 Threads | 65 W TDP | 3.4 GHz Frequency | 4.6 GHz Boost | Vermeer Codename | Socket AM4 Socket |
|
|
|
|

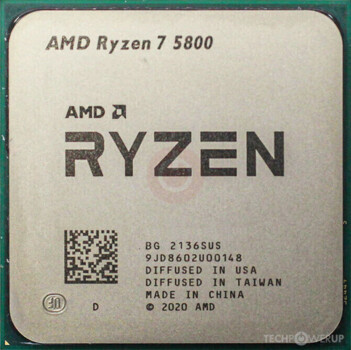

The AMD Ryzen 7 5800 is a desktop processor with 8 cores, launched in
January 2021. It is part of the Ryzen 7 lineup, using the Zen 3 (Vermeer)
architecture with Socket AM4. Thanks to AMD Simultaneous Multithreading
(SMT) the core-count is effectively doubled, to 16 threads. Ryzen 7 5800 has
32 MB of L3 cache and operates at 3.4 GHz by default, but can boost up to
4.6 GHz, depending on the workload. AMD is making the Ryzen 7 5800 on a 7 nm
production node using 4,150 million transistors. The silicon die of the chip
is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust
the unlocked multiplier on Ryzen 7 5800, which simplifies overclocking
greatly, as you can easily dial in any overclocking frequency.
With a TDP of 65 W, the Ryzen 7 5800 consumes typical power levels for a
modern PC. AMD's processor supports DDR4 memory with a dual-channel
interface. The highest officially supported memory speed is 3200 MT/s, but
with overclocking (and the right memory modules) you can go even higher. ECC
memory is supported, too, which is an important capability for mission
-critical systems, to avoid data corruption. For communication with other
components in the machine, Ryzen 7 5800 uses a PCI-Express Gen 4 connection.
This processor does not have integrated graphics, you will need a separate
graphics card.
Hardware virtualization is available on the Ryzen 7 5800, which greatly
improves virtual machine performance. Programs using Advanced Vector
Extensions (AVX) can run on this processor, boosting performance for
calculation-heavy applications. Besides AVX, AMD is including the newer AVX2
standard, too, but not AVX-512.
Ryzen 7 is a 4th generation Zen 3 based 5000 series CPU
TDP: Thermal Design Power
Ryzen 3 AMD Wraith Stealth.
Ryzen 7
5800 65W
5800X 1-5W
AM4 Amazon Prices
AMD Wraith Stealth Ryzen 3 $ 8.49
AMD Wraith Prism. $68.50
| Bundled Thermal Solution | Processors |
| AMD Wraith Prism (RGB programmable LED with compatible motherboards) | AMD Ryzen™ 9 7900 |
| AMD Wraith Spire (RGB programmable LED with compatible motherboards) | AMD Ryzen™ 7 8700G |
| AMD Wraith Spire Cooler (no LED) | N/A |
| AMD Wraith Stealth Cooler (no LED) | AMD Ryzen™ 5 8600G
AMD Ryzen™ 5 8500G AMD Ryzen™ 3 8300G AMD Ryzen™ 5 7600 AMD Ryzen™ 7 5700G AMD Ryzen™ 5 5600X AMD Ryzen™ 5 5600GT AMD Ryzen™ 5 5600G AMD Ryzen™ 5 5500GT |
| AMD Ryzen™ 105W and below Desktop Processor Recommended Coolers
AMD Socket AM4/AM5 ready Air and AIO liquid coolers offer support for at least 105W TDP, to ensure the best performance for AMD Ryzen™ Desktop Processors. | |||
| Arctic | Cooler Master | Corsair | Noctua |
|---|---|---|---|
| Liquid Freezer II 360 | MasterLiquid ML360R RGB | H150i RGB Elite | NH-D15 |
| Liquid Freezer II 280 | MasterLiquid ML240R RGB | H115i RGB Elite | NH-D15 chromax.black |
| MasterLiquid PL240 Flux | |||
| AMD Ryzen 120W and below Desktop Processor Recommended Coolers AMD Socket recommended coolers offer support for at least 120W TDP and below. | |||
| ARCTIC | ASUS | be quiet! | Cooler Master |
|---|---|---|---|
| Liquid Freezer II 360 | ROG STRIX LC RGB 360 White Edition | Dark Rock Pro 4 | MasterLiquid ML120L V2 RGB |
| Liquid Freezer II 280 | ROG RYUJIN 360 | Dark Rock 4 | MasterLiquid ML240R RGB |
| ROG STRIX LC 360 RGB | Dark Rock SLIM | MasterLiquid ML240 MIRROR | |
| ROG STRIX LC 360 | MasterLiquid ML280 MIRROR | ||
| MasterLiquid ML360R RGB | |||
| MasterLiquid ML360P Silver Edition | |||
| MasterLiquid ML240L RGB | |||
| Corsair | DeepCool | Enermax | EVGA |
| iCUE H150i ELITE CAPELLIX | ASSASSIN III | LIQTECH II 360 | EVGA CLC 280mm All-In-One RGB LED CPU Liquid Cooler |
| iCUE H115i ELITE CAPELLIX | AS500 PLUS | LIQTECH II 360 White | EVGA CLC 360mm All-In-One RGB LED CPU Liquid Cooler |
| iCUE H100i ELITE CAPELLIX | AK620 | AQUAFUSION 360 | |
| Hydro Series™ H115i RGB PLATINUM | AK500 | LIQFUSION 360 | |
| Hydro Series™ H100i RGB PLATINUM | AK400 | LIQMAX III ARGB 360 | |
| LS720 | LIQMAX III ARGB 360 White | ||
| LS520 | |||
| LT720 | |||
| LE500 | |||
| CASTLE 360EX A-RGB | |||
| CASTLE 240EX A-RGB | |||
| GAMMAXX L360 A-RGB | |||
| GAMMAXX L240 A-RGB | |||
| FRACTAL DESIGN | GIGABYTE | IceGiant | MSI |
| Celsius+ 24 Dynamic | AORUS LIQUID COOLER 280 | ProSiphon Elite | MSI MAG CORELIQUID 360R |
| Celsius+ 24 Prisma | AORUS LIQUID COOLER 360 | MAG CORELIQUID C280 | |
| Celsius+ S28 Prisma | MAG CORELIQUID C360 | ||
| Celsius+ S36 Prisma | MAG CORELIQUID P280 | ||
| Celsius+ S28 Dynamic | MAG CORELIQUID P360 | ||
| Celsius+ S36 Dynamic | MPG CORELIQUID K240 | ||
| Celsius S36 | MPG CORELIQUID K360 | ||
| MEG CORELIQUID S280 | |||
| MEG CORELIQUID S360 | |||
| MAG CORELIQUID 280R V2 | |||
| MAG CORELIQUID 360R V2 | |||
| Noctua | NZXT | Raijintek | SilverStone |
| NH-D15 | Kraken Z73 360mm All-In-One RGB CPU Liquid Cooler | Orcus 360 RBW | IceGem 240P |
| NH-D15 Chromax Black | Kraken Z63 280mm All-In-One RGB CPU Liquid Cooler | EOS 360 RBW | PF360-ARGB |
| NH-D15S | Kraken X73 360mm All-In-One RGB CPU Liquid Cooler | PF360W-ARGB | |
| NH-U14S | Kraken X72 360mm All-In-One RGB CPU Liquid Cooler | IceGem 280 | |
| NH-U12A | Kraken X63 280mm All-In-One RGB CPU Liquid Cooler | IceGem 360 | |
| Kraken X62 280mm All-In-One RGB CPU Liquid Cooler | |||
| Kraken X61 280mm All-In-One CPU Liquid Cooler | |||
| Thermaltake | |||
| Floe DX RGB 280 TT Premium Edition | |||
| Floe Riing RGB 280 TT Premium Edition | |||
| Water 3.0 Riing RGB 280 | |||
| Water 3.0 Riing Red 280 | |||
| Floe DX RGB 360 TT Premium Edition | |||
| Water 3.0 360 ARGB Sync | |||
| Water 3.0 Ultimate | |||
| Water 3.0 Riing RGB 360 | |||
| Floe Riing RGB 360 TT Premium Edition | |||
| AMD Ryzen 170W Desktop Processor Recommended Coolers AMD Socket AM5 and Ryzen 9 processor-ready AIO liquid coolers offer support for at least 170W TDP, to ensure the best performance for Ryzen 7000 Series desktop processors. | ||||
| be quiet! | CORSAIR | COOLER MASTER | DEEPCOOL | NZXT |
|---|---|---|---|---|
| Silent Loop 2 360mm | H115 Elite CAPELLIX | MasterLiquid PL360 Flux | LS720 | Kraken X63 280mm |
| Silent Loop 2 280mm | H115i Platinum 280mm RGB | LT720 | ||
