Crosscut Sled Extension

After using the sled I decided to make an extension so I could use a stop block for cutting longer pieces instead of marking each one.

I cut a 40" piece of 1x4 and cut a 3/4" by 3/8" groove for a tee track.   Under the tee track I counter bored and drilled two holes for tee bolts to attach to the existing sled face.

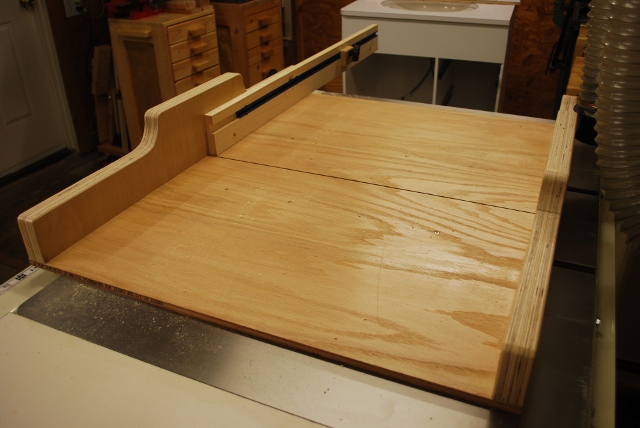

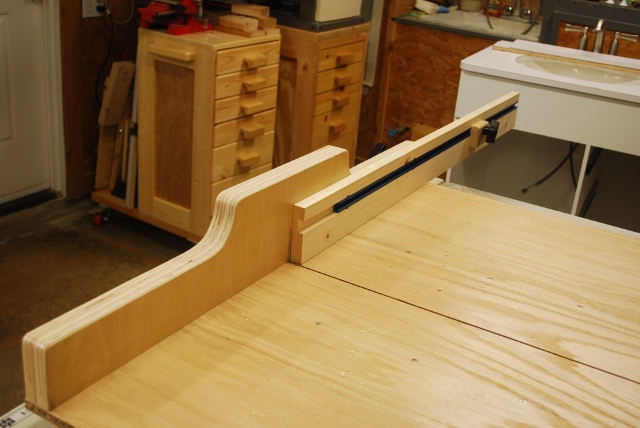

Extension attached to the left side of the Sled.

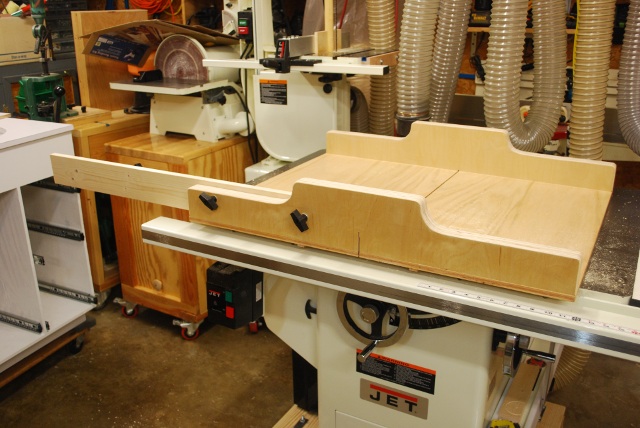

Extension attached, you can see the two tee knobs holding the extension to the sled's face.

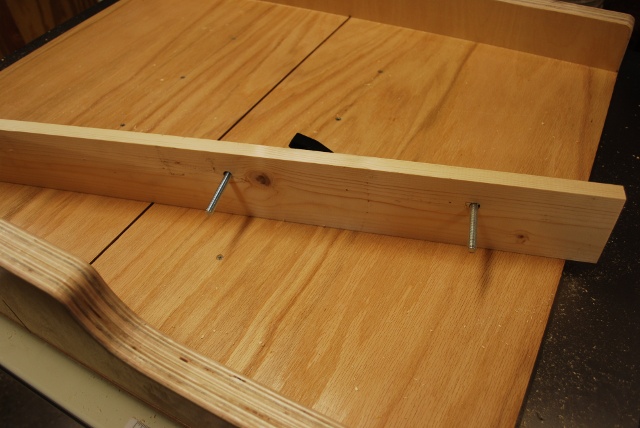

Extension's back side showing the tee bolts extending for attaching to the sled.

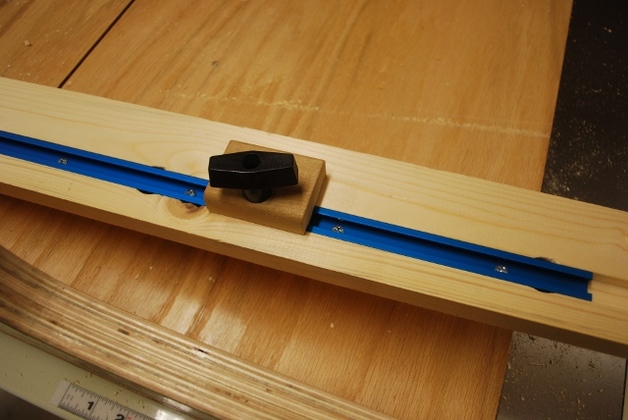

Front side of extension with the stop block in the tee track.

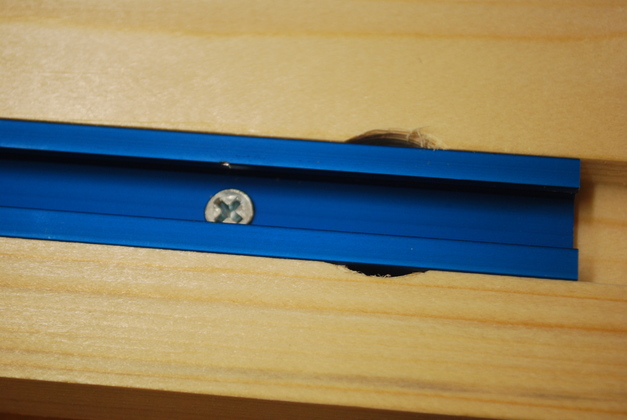

Close up of the tee track also showing the counter bore for the head of a tee bolt.

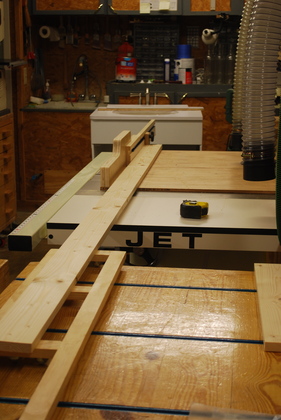

Set up to cut a 20" piece off a 8' 1x4 using the extension, stop block, and the skate on the work bench.

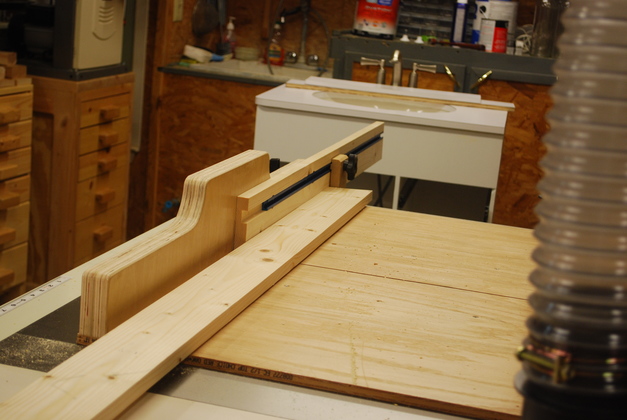

Closer look at the stop block and end of the piece to be cut off.
