The front of my woodworking bench is flat so I can clamp large objects (like doors or table tops) to it for working on their edges or top.
One end of the work piece is clamped on the front clamp, I also have a 4' long tee track embedded into the top front edge for clamping the other end of the workpiece.
Because of the variety of widths/lengths I need a variable way to support these objects.
So I came up with this support trestle.

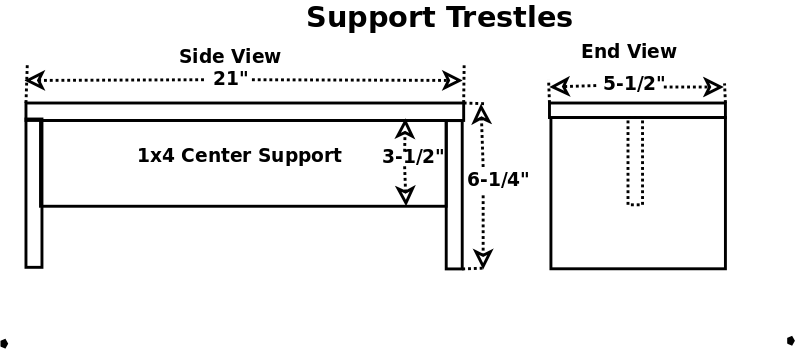

The trestles are 21" long, 6-1/4" high, and 5-1/2" wide with a center support/stiffener.
One problem I faced was the trestles moving around when I had several stacked, so I drilled a 1/2" hole in each diagonal corner of the legs and a mating 1/2" dowell sticking out of the matching top.
The dowels sticking out of the top help keep narrow doors / table tops from slipping off one side.
|

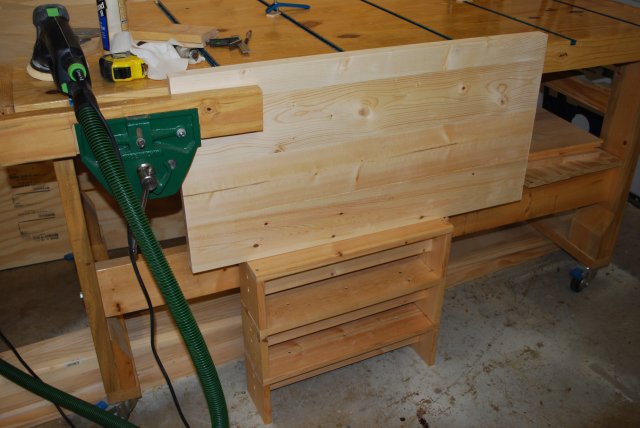

Trestle support in use.
Here is a 20x36" top for a loading bench being sanded.
|
|

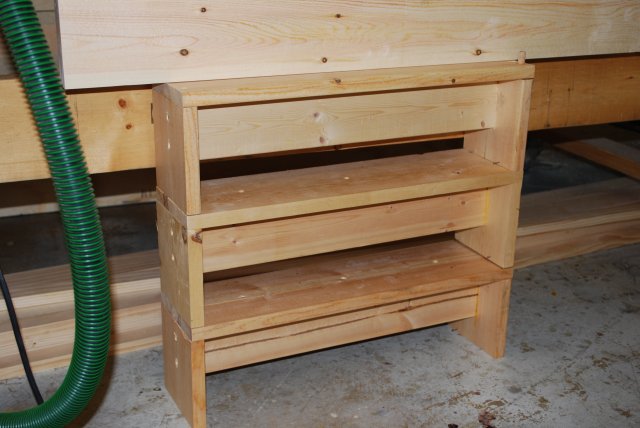

Trestle stack close up.
|
|

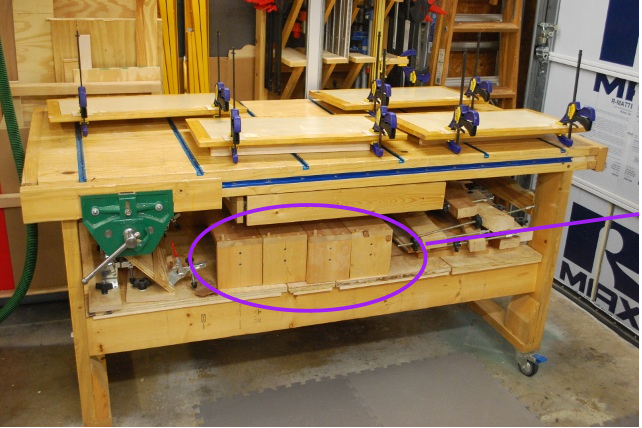

Trestles stored under my woodworking bench (in purple oval) .
|
|

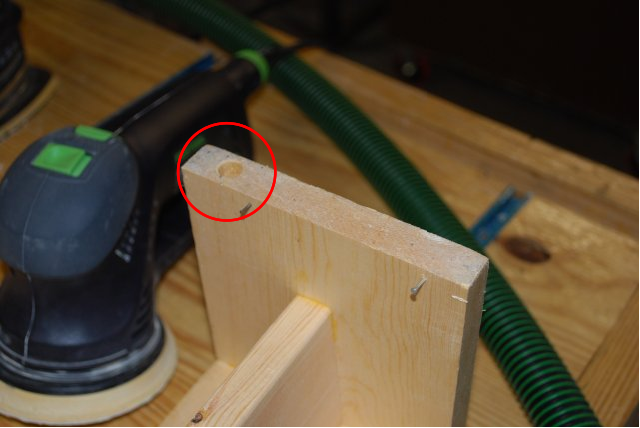

The alignment hole in the bottom of the foot (Red Circle).
|
|

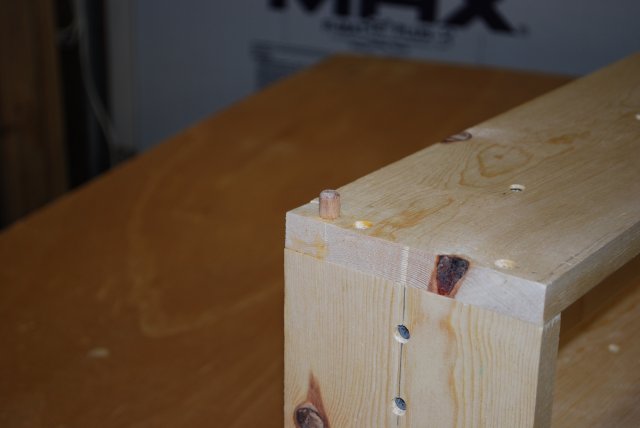

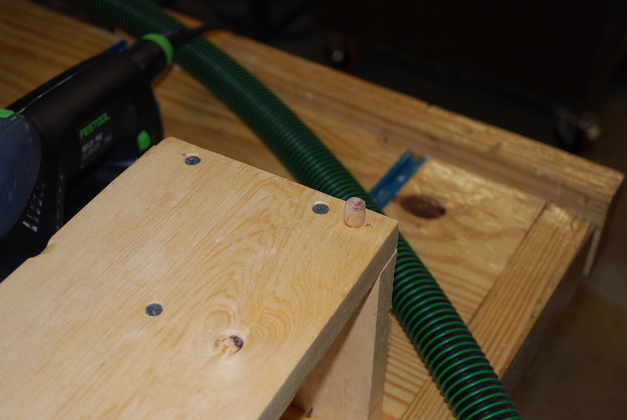

The alignment peg in the trestle top.
|
|

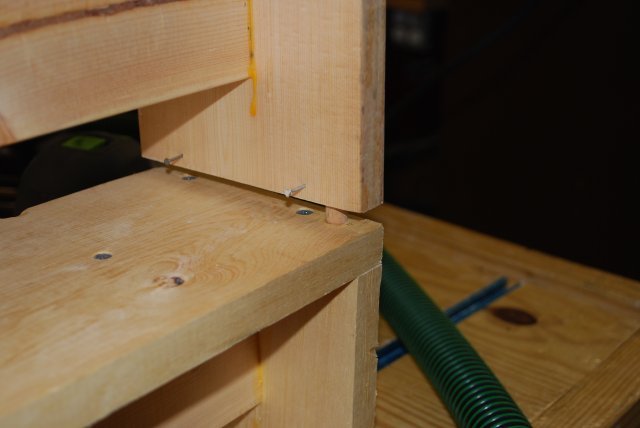

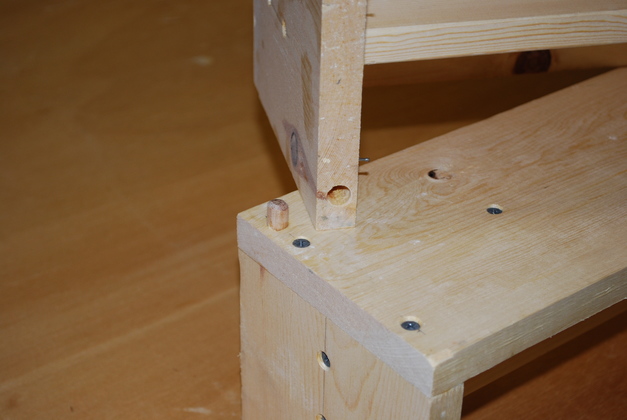

The allignment fit as they are stacked.
|
|
Yet another pic showing how they are aligned.
|
|

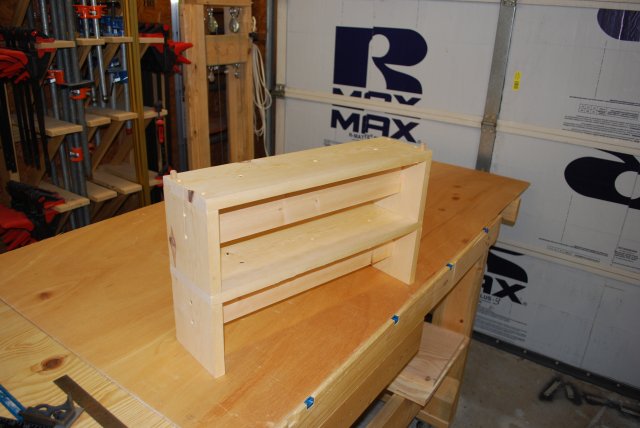

A pair stacked on top of the WW bench.
|
|
A closer view showing the wall board screws holding them together.
|
