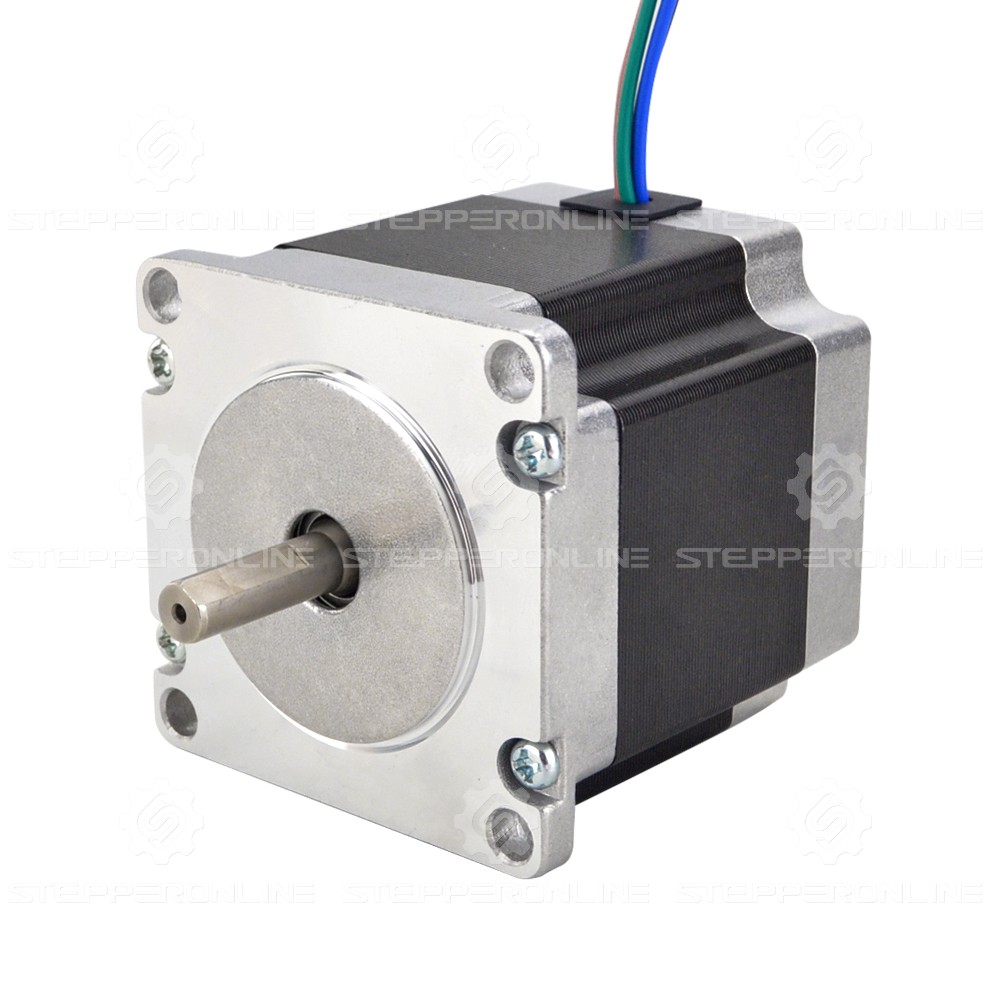

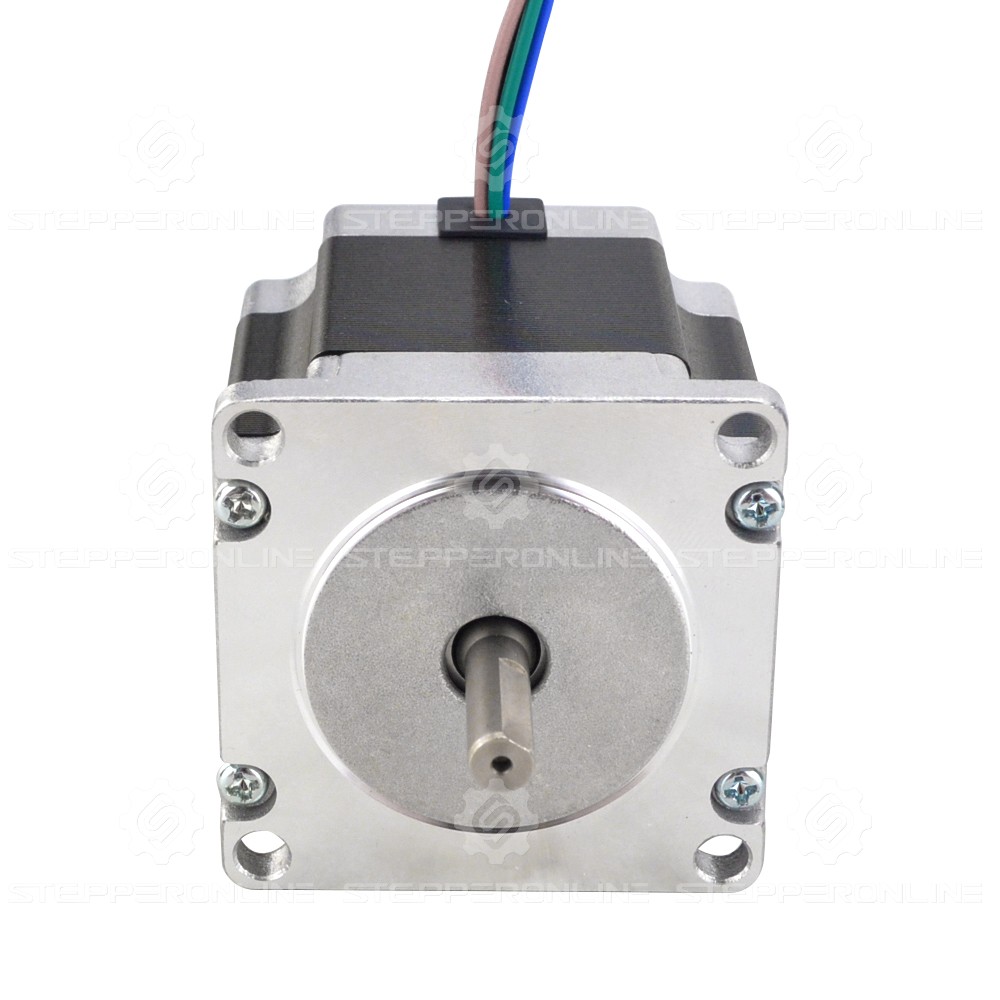

NEMA-23 Stepper Motor
From: https://www.omc-stepperonline.com/en-au/e-series-nema-23-stepper-motor-bipolar-1-8deg-1-26-nm-178-04oz-in-2-8a-57x57x56mm-4-wires-23he22-2804s
07/29/24: Page Origin
From: https://www.omc-stepperonline.com/en-au/nema-23-bipolar-1-26nm-178-4oz-in-2-8a-2-5v-57x56mm-4-wires-6mm-shaft-23hs22-2804s1
Torque Curve
Click For Larger Pic
The torque chart above shows the NEMA-23 (23HS22-2804S) top power at 1Khz
(150 RMP).
Electrical Specification

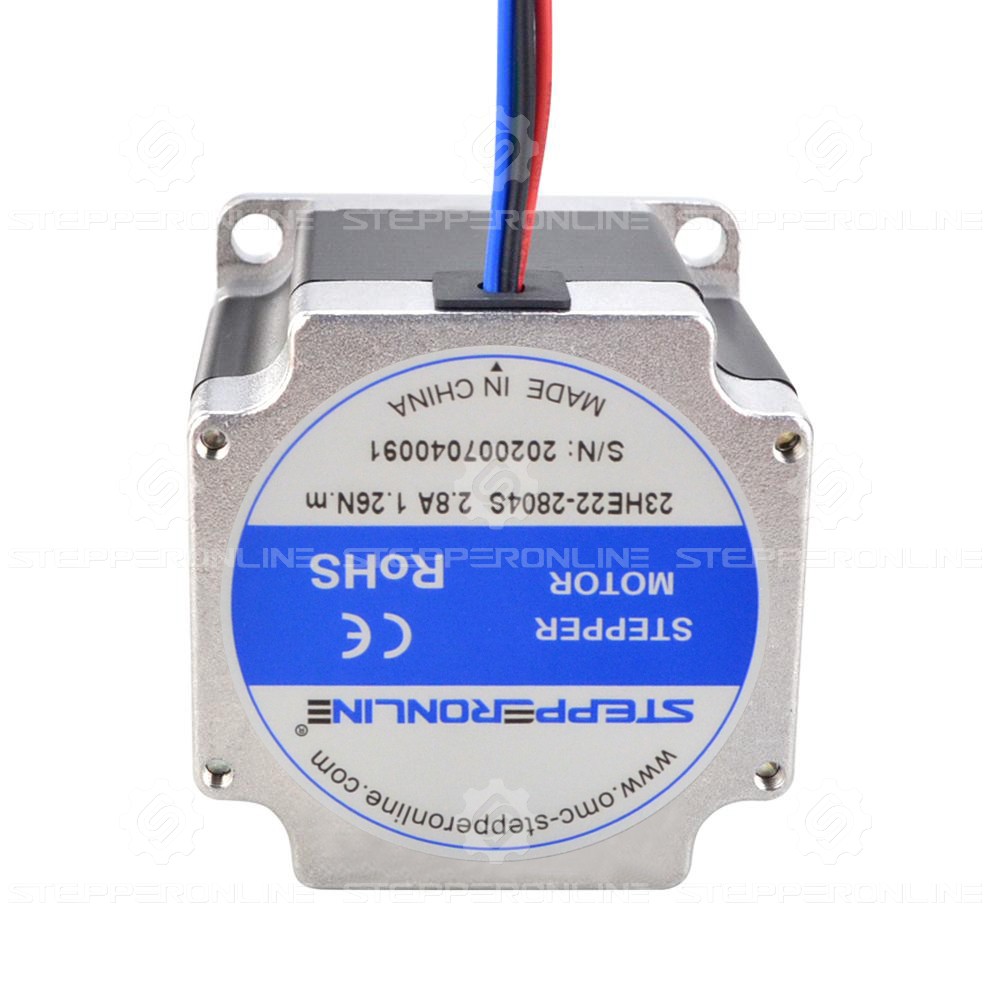

Manufacturer Part Number: 23HE22-2804S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.26Nm(178.4oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms± 10%
Inductance: 2.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Connection
| Connection
|
| A+
| A-
| B+
| B-
|
| BLK | GRN | RED | BLU
|
