Dust Automation Cabinet

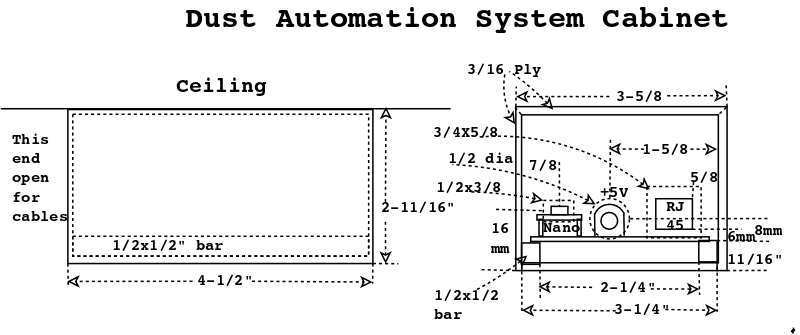

This little box contains the Dust Automation System Electronics.   It will be fastened under a small shelf above the end of the table saw.   The botom will have two 1/2 x 1/2" wooden bars to support the PCB and also catch the mounting screws from each side.   One end will have the data terminal's RJ-45, power connector, and mini USB for the Nano.   The opposite end will have large slots for I-sensor, servo cables, and the Dust Collector Go cable.

System cabinet with the control board, on it's base, next to it.

Cabinet with control board inside.

Rear of system cabinet, vertical slots are for servo and sensor cables.

Another view of the back of the cabinet and the control board.
