DS3231 Library


Wire.begin();

Then, Library functions are typically accessed through the DS3231 object. For example, to read the current date of the month (1 through 28, 29, 30 or 31, depending on the month and the year):

unsigned int theDate = myRTC.getDate();

The Library defines two other classes to assist with managing date and time data:

• DateTime enables a versatile object for managing date and time data. A variable of the DateTime type can represent a specific date and time in two different ways:
  1. as distinct values for year, month, day, hour, minute and second, or
  2. as a single, unsigned integer. The latter is handy for doing arithmetic with dates.
• RTClib institutes a convenient RTClib::now() function for receiving a date/time snapshot, as a DateTime object, from the DS3231 device.

How to Cite

If you use this library in a publicatoin, please cite it in one or both of the following two ways:

1. Through the CITATION.cff file here, which should be up to date with the permanent archive available from Zenodo
2. If you need an academic journal reference and/or you are discussing the integration of the DS3231 into a larger hardware + firmware ecosystem,
   Wickert, A. D., Sandell, C. T., Schulz, B., & Ng, G. H. C. (2019), Open-source Arduino-compatible data loggers designed for field research , Hydrology and Earth System Sciences , 23 (4), 2065-2076, doi:10.5194/hess-23-2065-2019.
   This option should not be the only one used because it does not credit the original library developer, Eric Ayars.

About the DS3231

DS3231 is a low-cost integrated circuit (IC) providing a highly accurate, real time clock for use with Arduino, Raspberry Pi, BBC micro:bit and other popular small computing devices.

The IC is typically mounted on a circuit board or module, along with other hardware, such as header pins, supportive electrical components, and even EEPROM memory chips, for convenient attachment to a breadboard or an Arduino.

Several different modules are available from a number of competing vendors. This Library aspires to work with any DS3231 module that supports I2C communications with the IC.

DS3231 runs independently and can be kept running for a considerable length of time by a small, backup battery, even if power to the Arduino is turned off.

According to the datasheet , the DS3231 hardware "completely manages all timekeeping functions (including):

• Seconds,
• Minutes,
• Hours
  • 12-hour format with AM/PM indication, or
  • 24-hour format,
• Day of the Week,
• Date of the Month,
• Month, and
• Year, with Leap-Year Compensation Valid Up to 2100"

Data for the time and date are stored in memory locations on the DS3231. Each, distinct value is stored separately. This means the seconds are in one location, the minutes in another, and so forth. The DS3231 updates the values in the memory locations every second.

The device keeps track of time by operating its own 32.768 kHz crystal oscillator, similar to the timekeeper in an electronic watch. Temperature can affect oscillator speed. Accordingly, the DS3231 takes further steps to maintain accuracy. It senses the temperature around the crystal and adjusts the speed of the oscillator.

The temperature can be read from the DS3231 using a Library function. The data sheet declares it to be accurate to within 3 degrees, Celsius.

Power Supply and Battery Backup

The DS3231 can run in a range between 2.3 volts and 5.5 volts. The device actually has two power supply pins: the primary source, V _CC , and a secondary, backup source, V _BAT .

Some popular modules mounting a DS3231 provide a receptacle for a coin battery, attaching it to the V _BAT pin. If a sufficiently-charged battery is present, the DS3231 will switch automatically to the battery after detecting a drop in V _CC voltage below a certain "power-fail" level.

It will switch back to V _CC automatically, if and when that voltage rises back up above both the power-fail and the battery voltage level.

One point regarding the choice of battery may deserve consideration: the question of whether to install a rechargeable coin battery, or to disable a charging circuit if such a thing is provided on the module being used. The topic is controversial and the authors of this Library do not express any opinion about it. Readers may choose to search online for more information.

back to top

Installation

First Method

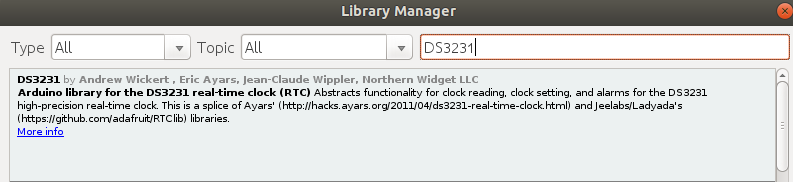

1. In the Arduino IDE, navigate to Sketch > Include Library > Manage Libraries
2. Then the Library Manager will open and you will find a list of libraries that are already installed or ready for installation.
3. Then search for DS3231 using the search bar.
4. Click on the text area and then select the specific version and install it.

Second Method

1. Navigate to the Releases page .
2. Download the latest release.
3. Extract the zip file
4. In the Arduino IDE, navigate to Sketch > Include Library > Add .ZIP Library

Dependencies

The user must also ensure that two, other, required libraries are available to the Arduino IDE. This DS3231 library takes care to #include the following in a program, but it does not install them in your Arduino IDE:

• Wire.h : a widely-used Arduino library for I2C communications
• time.h : a modified C language header file packaged with avr-libc and the AVR-GCC compiler

Note: At the time of writing, both of these libraries were included by default with a standard installation of the 1.8.x version of Arduino IDE for AVR-based devices.

A simple way to check for the availability of the two libraries is to compile the following, blank Arduino sketch. If the IDE does not complain that anything is missing, then the required libraries are available for use with this DS3231 library.

#include <Wire.h>
#include <time.h>
void setup() {}
void loop() {}
