The Arduino LedControl library was initially written for Arduino boards based on
8-bit AVR processors. But since the code does not use any sophisticated
internal functions of the processor it is highly portable und should run on any
Arduino(-like) board that supports the pinMode() and digitalWrite() functions.

A single MAX72XX Led driver is able to control 64 Leds. The library supports up
to 8 daisy chained MAX72XX drivers. Controlling 512 Leds should be more than
enough for most purposes.

The library code comes with three demo sketches. You probably want to have a
look at this code while reading this section. The demo code is well documented
and provides some insight how all the different parts of the library work together.





Library Initialization

#include "LedControl.h"

To include the library into your Arduino code you have to write a few lines of
initialization code.
Add the library to your sketch

This works like with any other Arduino libray, you can either use the Include
Library menu function from IDE, or you simply add an

    #include "LedControl.h"

statement to the top of your sketch.





Create a LedControl variable


All library API-functions are called through a variable of type LedControl which
 should be defined right at the top of your sketch to make it acessible to the
rest of the projects code.

The typical code for library initialization looks like this :

/*F********************************************************************
* Include LedControl library
**********************************************************************/
#include "LedControl.h"

/*H*******************************************************
 * Create a new LedControl variable.
 * We use pins 3,4 and 5 on Arduino for SPI interface
 * Pin 4 DATA IN-pin MAX7221
 * Pin 5 CLK-pin of the first MAX7221
 * Pin 3 CS)-pin of the first MAX7221
 * There will only be a single MAX7221 attached to arduino
 ********************************************************/
LedControl
lc1 = LedControl( 12, 11, 10, 1);

The initialization code for the variable through which we talk to the MAX72XX
devices takes 4 arguments. The first 3 arguments are the pin-numbers on the
Arduino that are connected to the MAX72XX. These can be any of the digital
IO-pins on an arduino. In the example pins 12,11 and 10 where choosen arbitrarily.
The library code does no sanity checks on the pin-numbers to be valid in any way.
Passing in something stupid (pin 123 ??), or simply the wrong pin-number will
break the code without notice or error messages. You don't have to initialize the
IO-pins as outputs or set them to a certain state, the library will do that for you.

The fourth argument to LedControl( dataPin, clockPin, csPin, numDevices) is the
number of cascaded MAX72XX devices you're using with this LedControl. The library
can address up to 8 devices from a single LedControl-variable. There is a little
performance penalty implied with each device you add to the chain, but the
amount of memory used by the library-code will stay the same, no matter how many
devices you set. Since one LedControl cannot address more than 8 devices, only
values between 1..8 are allowed here.

If your sketch needs to control more than 8 MAX72XX, another LedControl-variable
needs to be created that uses 3 different pins on your arduino-board.

/*F********************************************************************
*
**********************************************************************/
#include "LedControl.h"

LedControl lc1 = LedControl( 12, 11, 10, 8); // CREATE LedControl FOR FIRST 8 DEVICES
//LedControl lc2 = LedControl( 9, 8, 7, 8); // ANOTHER ONE FOR NEXT 8 DEVICES





Get number of attached devices

getDeviceCount();

There is no way to read the IO-pin numbers from code, but there is a function
that gets maximum number of devices attached to an LedControl.

/*F********************************************************************
* Gets maximum number of devices attached to this LedControl.
* Returns : int number of devices attached to this LedControl
**********************************************************************/
int LedControl::
getDeviceCount();

Used to loop over the full list of attached MAX72XX devices.
Here is a piece of code that switches all of the MAX72XX-devices from power
saving mode into normal operation. The idea behind this code should be clear
even though the shutdown(addr) function is introduced later on.

/*F********************************************************************
*
**********************************************************************/
#include "LedControl.h"

lc1 = LedControl( 12, 11, 10, 5);

/*F********************************************************************
*
**********************************************************************/
void
setup()
{
    for( int index =0; index < lc1.getDeviceCount(); index++)
        lc1.shutdown( index, false);
}

We iterate over the list of devices by an index that runs from 0 to getDeviceCount()-1.
The index is the address of each device. This address is the first argument of
every function that sets a feature or a (Led-)value on a device. Note that
getDeviceCount() returns the number of devices attached, but the address of an
device starts at 0 for the first one, 1 for the second one, getDeviceCount()-1
for the last one.





 Power saving mode

shutdown( int addr, bool status );

Leds consume quite a lot of energy when they are lit. Battery operated devices
need a way save power by switching the whole display off, when the user doesn't
need it. The MAX72XX supports a power shutdown mode.

In shutdown mode the device switches off all the Led's on the display, but the
data is retained. When the device comes out of shutdown mode the same Leds will
be lit as before it went to sleep. It is even possible to send new data during
shutdown mode. When the device is reactivated, the new data will appear the
display. Here is an example for an invisible countdown on a 7-segment display:

/*F********************************************************************
*
**********************************************************************/
void
countDown()
{
    int i = 9;
    lc.setDigit( 0, (byte)i, false );
    delay( 1000 );                           // DIGIT '9' APPEARS ON DISPLAY
    lc.shutdown( 0, true );                         // GO INTO SHUTDOWN MODE
    while( i > 1 )                                // AND COUNT DOWN SILENTLY
    g{                                      // DATA IS UPDATED, BUT NOT SHOWN
        lc.setDigit( 0, (byte)i, false);
        i--;
        delay( 1000 );
    }
    lc.shutdown( 0, false ); // COMING OUT OF SHUTDOWN MODE, ALREADY REACHED '1'
    lc.setDigit( 0, (byte)i, false );
}

/*H*******************************************************
 * Set shutdown (power saving) mode for device
 * Params :
 *   addr   ADDRESS OF DISPLAY TO CONTROL
 *   status: TRUE  - DEVICE GOES INTO POWER-DOWN MODE
 *           FALSE - FOR NORMAL OPERATION
 ********************************************************/
void
shutdown( int addr, bool status);

Note : MAX72XX is always in shutdown mode when Arduino is powered up.
Limiting number of digits (ScanLimit)

This is a kind of experts feature not really needed by most library users
Since the library initializes the MAX72XX to safe default values, you don't
have to read this section just to make your hardware work





setScanLimit


When a new LedControl is created it will activate all 8 digits on all devices.
Each lit digit will be switched on for 1/8 of a second by the multiplexer
circuit that drives the digits. If you have any reason to limit the number of
scanned digits the Led's get switched on more frequently, and therefore will be
 on for longer periods of time.

The effect of setting the scan limit to 4 is that a lit Led is now switched on
for 1/4 of a second instead of the standard 1/8 of a second. The MAX72XX has to
provide the current on the segment-driver for a longer period of time.

You should read the relevant section of the MAX72XX datasheet carefully! Its
actually possible to destroy a MAX72XX by choosing a bad combination of resistor
RSet that limits the current going through the Led's and the number of digits
scanned by the device. The only reason to tweak the scanlimit at all, is that
display looks too dark. But this is most likely due to the fact that the
intensity on was not raised on startup. Here's the prototype of setScanLimit()
for those who need it:

/*H*******************************************************
 * Set number of digits (or rows) to be displayed.
 * See datasheet for side effects of the scanlimit on the brightness
 * of the display.
 * Params :
 *   addr     The address of the display to control
 *   limit    The number of digits to be displayed
 ********************************************************/
void
setScanLimit( int addr, int limit);






Setting display brightness


There are three factors that determine the brightness of a display.
value of resistor Rset which limits the maximum current going through the Led's.
scan limit of the display. (If you read the section, you already know that
I'd recommend to leave this option its safe default.) and a comand that allows
the brightness of the Leds to be controlled from software.

With setIntensity( int addr, int intensity) method, brightness of Leds
Values greater than 15 will be discarded without changing brightness.
Even lowest value 0 will not switch display off completely off.

/*H*******************************************************
 * Set display brightness
 * Params:
 *   addr address of display to control
 *   intensity display brightness
*******************************************************/
void setIntensity( int addr, int intensity );





Device initialization


When a new LedControl is created library will initialize hardware with
    display cleared
    intensity set to the minimum
    device in power saving mode
    maximum number of digits on the device activated

A blanked display is probably what everybody wants on startup. But with
intensity at a minimum and device in shutdown-mode no Leds will light up in
startup configuration. Most users will do their own initialization inside
the setup()-function. Here is a piece of code that can be used as a template for
creating an LedControl that is ready to light up Leds at a medium brightness as
soon as display data arrives.

/*F********************************************************************
*
**********************************************************************/
#include "LedControl.h"

LedControl lc = LedControl( 12, 11, 10, 1);

/*F********************************************************************
*
**********************************************************************/
void
setup()
{
    lc.shutdown( 0, false );       // WAKE UP MAX72XX FROM POWER-SAVING MODE
    lc.setIntensity( 0, 8 );             // SET A MEDIUM BRIGHTNESS FOR lEDS
}





Led-Matrix


With all initialization code in place its now time to control some Leds.







Clearing display

clearDisplay( int *addr )

Name of function LedControl.clearDisplay( addr ) already suggests what it does

/*H*******************************************************
 * Switch all display Leds off.
 * Params:
 *   addr: display address to control
********************************************************/
void
clearDisplay( int *addr );

All Leds on the selected device are switched off. Its important to understand
that this is different from shutdown mode, where the data is retained.





Control a single Led

setLed( int addr, int row, int col, bool stat e)

This is function prototype that switches a single Led on or off.

/*H*******************************************************
 * Set status of a single Led.
 * Params:
 *   addr  address of the display
 *   row   the row of the Led (0..7)
 *   col   the column of the Led (0..7)
 *   state If true the led is switched on, if false it is switched off
********************************************************/
void
setLed( int addr, int row, int col, boolean state);

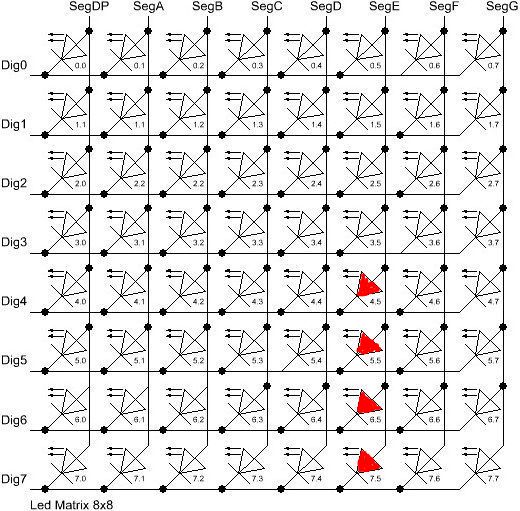

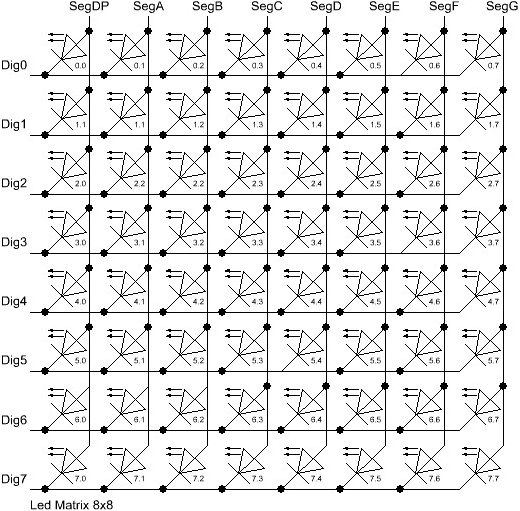

The idea behind the addr and state arguments should be clear, but what do the
row and column arguments refer to? This depends on the wiring between the MAX72XX
 and your matrix. The LedControl-library assumes the setup used in this schematic:



There are 8 rows (indexed from 0..7) and 8 columns (also indexed from 0..7) in
the matrix. If the Led located at the very right of the 3'rd row from the top is
 to be lit, the index of the Led 2.7 must used as the row and column arguments.

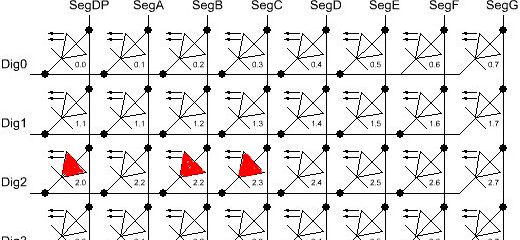

This code excerpt shows how few Leds on the first MAX72XX device are set

// switch on led in 3'rd row 8'th column of device at addr = 0
lc.setLed( 0, 2, 7, true );
lc.setLed( 0, 0, 1, true );       // NOW lED AT ROW 0, SECOND FROM LEFT SIDE
delay( 500 );
lc.setLed( 0, 2, 7, false );   // SWITCH FIRST lED OFF (SECOND ONE STAYS ON)

The setLed() function is fine for lighting up a few Leds, but if more Leds need
 to be updated, this would require many lines of code. So there are two more
functions in the library, that control a complete row and column with a single
command.





Control the row of a matrix

setRow( addr, row, value )

The setRow( addr, row, value ) -function takes 3 arguments.
Params:
	addr:	8x8 matrix number (address of the device)
	row:	0 - 7 row that needs to be updated
	value:	(0X00 - 0XFF) value to be set for this row

The 1st param is already familiar address of the device.
The 2nd param is row that needs to be updated and
the 3rd param value to be set for this row.

The value argument takes an 8-bit wide byte where each bit set to 1 represents
a lit led and a bit set to 0 a Led that is to be switched off.

For an example, the Leds marked in red are to be switched on, all others
switched off.



The index for the row to be updated is 2 (counted from the top). The value argument has to be set to the byte-value for the Leds to be lit. The easiest approach is to include the standard header-file  into to your sketch. The value is written in binary encoding is an exact mapping between bits set to 1 and the Leds to be switched on.

//include this file at the top of your Sketch
#includee <binary.h>

// ...Initialization code omitted ...

// Setting leds from third row (index=2) of first device
lc.setRow( 0, 2, B10110000 );

When specifying the value in binary encoding is not possible, a simple table
that maps the decimal values of each bit to the Led it affects can help.
The two rows at the bottom show the decimal value for the example is to be
calculated.







 Led2.0 Led2.1 Led2.2 Led2.3 Led2.4 Led2.5 Led2.6 Led2.7


Bit-Value     g128 	64 	32 	16 	8 	4 	2 	1


Led On?Yes NoYes    gYes No 	No 	No 	No


Row-Value128032160020




    value=176 (128+32+16)

The statement lc.setRow(0,2,176) updates the third row on the first MAX72XX attached to the Arduino.

The setRow()-call is obviuosly much faster than calling setLed() eight times for all the Leds in a row. The Hardware of a MAX72XX causes the setRow() function also to be 8 times faster than the setColumn() function introduced in the next section. If performance of the sketch code is important factor use the setRow() function whereever possible.

The Prototype of the function

/* *******************************************************
 * Set all 8 Led's in a row to a new state
 * Params:
 *   addr   ddress of the display
 *   row    row which is to be set (0..7)
 *   value  each bit set to 1 will light up the corresponding Led.
********************************************************/
void setRow( int addr, int row, byte value);





Control the column of a matrix

setColumn()

The setColumn()-function works just like the setRow()command but updates 8 Leds in a vertical column.

Again, the Leds marked in red are to be switched on, all others switched off.



This time the 4 leds at the bottom of column 6 are to be lit. With binary encoding the leftmost bit in the value refers to the Led at the top of the column.

//include this file at the top of your Sketch


// ...Initialization code omitted ...

//Setting leds from third row (index=2) of first device
lc.setRow( 0, 2, B00001111 );

A table similar to the one from the setRow() section helps if binary encoding of the value is not an option.







Led2.0 Led2.1 Led2.2 Led2.3
Led2.4 Led2.5 Led2.6 Led2.7


Bit-Value     g128 	64 	32 	16 	8 	4 	2 	1


Led On     gYes 	No 	Yes 	Yes 	No 	No 	No 	No


Row-Value     g128 	0 	32 	16 	0 	0 	2 	0



    =15 (8+4+2+1)

The Prototype of the function:

/*H*******************************************************
 * Set all 8 Led's in a column to a new state
 * Params:
 *   addr  address of the display
 *   col   column which is to be set (0..7)
 *   value each bit set to 1 will light up the corresponding Led.
********************************************************/
void  setColumn( int addr, int col, byte value);





Control 7-Segment displays



Print numbers on a 7-Segment display

The most common use of 7-segment displays is to print numbers.
The LedControl library has a function that simply takes an argument of type
byte and prints the corresponding digit on the specified column. Valid values
for the digit are from 0 to 15 to allow displaying hex values.
Values greater than 15 (or negative values) are silently discarded.
The function also provides an argumment to switch decimal point on the column
on or off.

Here is a code excerpt that prints an int value (-999..999) on a display with
4 digits.

/*F********************************************************************
*
**********************************************************************/
void
printNumber( int v )
{
    int ones;
    int tens;
    int hundreds;

    boolean negative = false;
    if(v < -999 || v > 999)
        return;
    if( v < 0 )
    g{
        negative = true;
        v = v * -1;
    }
    ones = v % 10;
    v = v / 10;
    tens = v % 10;
    v = v / 10;     g
    ghundreds = v;
    if( negative )
        lc.setChar(0,3,'-',false);// PRINT CHARACTER '-' IN THE LEFTMOST COLUMN
    else
        lc.setChar(0,3,' ',false);       // PRINT A BLANK IN THE SIGN COLUMN
    // NOW PRINT NUMBER DIGIT BY DIGIT
    lc.setDigit( 0, 2, (byte)hundreds, false );
    lc.setDigit( 0, 1, (byte)tens, false );
    lc.setDigit( 0, 0, (byte)ones, false );
}





setDigit( int addr, int digit, byte value, boolean dp)


The prototype for the function:

/*H*******************************************************
 * Display a (hexadecimal) digit on a 7-Segment Display
 * Params:
 *  addr   address of the display
 *  digit  the position of the digit on the display (0..7)
 *  value  the value to be displayed. (0x00..0x0F)
 *  dp     sets the decimal point.
********************************************************/
void
setDigit( int addr, int digit, byte value, boolean dp);

The digit-argument must be in the range 0..7 because the MAX72XX can control up to eight digits on a 7-segment display.
Print characters on a 7-Segment display

There is a limited set of characters that make (visual) sense on a 7-segment display. A common use would be the - character to prepend negative values and the 6 characters from 'A'..'F' for integer hex-values.

The setChar(addr,digit,value,dp)-function accepts a value of type char for the in the range of a 7-bit ASCII encoding. Since the recognizable patterns are limited, most of the defined characters will print the -char. But there are quite a few characters that make sense on a 7-segment display.

Here is the set of printable characters:



  1.  0 1 2 3 4 5 6 7 8 9

  2. A a (prints upper case)

  3. B b (prints lower case)

  4. C c (prints lower case)

  5. D d (prints lower case)

  6. E e (prints upper case)

  7. F f (prints upper case)

  8. H h (prints upper case)

  9. L l (prints upper case)

  10. P p (prints upper case)

  11.  - (minus sign)

  12.  . , (lights up decimal-point)

  13.  _ (underscore)

  14.  <SPACE> (blank or space char)



The hexadecimal characters (0..F) have been redefined at the character values 0x00...0x0F. This makes it possible to mix digits and characters values. The byte value for the setDigit()-function can be used with the setChar() and will print the hexadecimal representation of the value.





setChar( int addr, int digit, char value, boolean dp)


The prototype of the function looks very similar to the one for displaying digits.

/*H*******************************************************
 * Display a character on a 7-Segment display.
 * Params:
 *   addr  address of the display
 *   digit the position of the character on the display (0..7)
 *   value the character to be displayed.
 *   dp    sets the decimal point.
********************************************************/
void
setChar( int addr, int digit, char value, boolean dp);







Library Demos



The library comes with three well documented demo sketches. Basic methods to control a Led-Matrix, a 7-Segment display and access to daisy-chained MAX72XX devices are shown. The demos might be a good start for writing your own sketches.
