ESP-WIFI-MESH Programming Guide
This is a programming guide for ESP-WIFI-MESH, including the API reference and
coding examples. This guide is split into the following parts:
For documentation regarding the ESP-WIFI-MESH protocol, please see the
ESP-WIFI-MESH API Guide. For more information about ESP-WIFI-MESH Development
Framework, please see ESP-WIFI-MESH Development Framework.
ESP-WIFI-MESH Programming Model
Software Stack

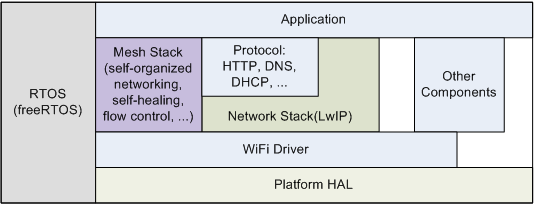

The ESP-WIFI-MESH software stack is built atop the Wi-Fi Driver/FreeRTOS and may
use the LwIP Stack in some instances (i.e. the root node). The following diagram
illustrates the ESP-WIFI-MESH software stack.
System Events
An application interfaces with ESP-WIFI-MESH via ESP-WIFI-MESH Events. Since
ESP-WIFI-MESH is built atop the Wi-Fi stack, it is also possible for the
application to interface with the Wi-Fi driver via the Wi-Fi Event Task. The

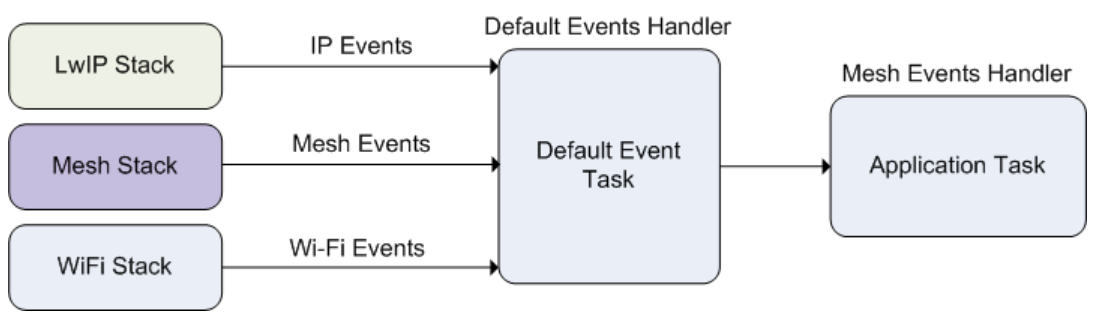

following diagram illustrates the interfaces for the various System Events in an
ESP-WIFI-MESH System Events Delivery
The mesh_event_id_t defines all possible ESP-WIFI-MESH events and can
indicate events such as the connection/disconnection of parent/child. Before
ESP-WIFI-MESH events can be used, the application must register a Mesh Events
handler via esp_event_handler_register() to the default event task. The Mesh
Events handler that is registered contain handlers for each ESP-WIFI-MESH event
relevant to the application.
Typical use cases of mesh events include using events such as
MESH_EVENT_PARENT_CONNECTED and MESH_EVENT_CHILD_CONNECTED to indicate when a
node can begin transmitting data upstream and downstream respectively. Likewise,
IP_EVENT_STA_GOT_IP and IP_EVENT_STA_LOST_IP can be used to indicate when the
root node can and cannot transmit data to the external IP network.
Warning
When using ESP-WIFI-MESH under self-organized mode, users must ensure that no
calls to Wi-Fi API are made. This is due to the fact that the self-organizing
mode will internally make Wi-Fi API calls to connect/disconnect/scan etc. Any
Wi-Fi calls from the application (including calls from callbacks and handlers of
Wi-Fi events) may interfere with ESP-WIFI-MESH’s self-organizing behavior.
Therefore, users should not call Wi-Fi APIs after esp_mesh_start() is called,
and before esp_mesh_stop() is called.
LwIP & ESP-WIFI-MESH
The application can access the ESP-WIFI-MESH stack directly without having to go
through the LwIP stack. The LwIP stack is only required by the root node to
transmit/receive data to/from an external IP network. However, since every node
can potentially become the root node (due to automatic root node selection),
each node must still initialize the LwIP stack.
Each node that could become root is required to initialize LwIP by calling
esp_netif_init(). In order to prevent non-root node access to LwIP, the
application should not create or register any network interfaces using
esp_netif APIs.
ESP-WIFI-MESH requires a root node to be connected with a router. Therefore,
in the event that a node becomes the root, the corresponding handler must start
the DHCP client service and immediately obtain an IP address. Doing so will
allow other nodes to begin transmitting/receiving packets to/from the external
IP network. However, this step is unnecessary if static IP settings are used.
Writing an ESP-WIFI-MESH Application
The prerequisites for starting ESP-WIFI-MESH is to initialize LwIP and Wi-Fi,
The following code snippet demonstrates the necessary prerequisite steps before
ESP-WIFI-MESH itself can be initialized.
ESP_ERROR_CHECK(esp_netif_init());
/* event initialization */
ESP_ERROR_CHECK(esp_event_loop_create_default());
/* Wi-Fi initialization */
wifi_init_config_t config = WIFI_INIT_CONFIG_DEFAULT();
ESP_ERROR_CHECK(esp_wifi_init(&config));
/* register IP events handler */
ESP_ERROR_CHECK(esp_event_handler_register(IP_EVENT, IP_EVENT_STA_GOT_IP, &ip_event_handler, NULL));
ESP_ERROR_CHECK(esp_wifi_set_storage(WIFI_STORAGE_FLASH));
ESP_ERROR_CHECK(esp_wifi_start());
After initializing LwIP and Wi-Fi, the process of getting an ESP-WIFI-MESH
network up and running can be summarized into the following three steps:
Initialize Mesh
The following code snippet demonstrates how to initialize ESP-WIFI-MESH
/* mesh initialization */
ESP_ERROR_CHECK(esp_mesh_init());
/* register mesh events handler */
ESP_ERROR_CHECK(esp_event_handler_register(MESH_EVENT, ESP_EVENT_ANY_ID, &mesh_event_handler, NULL));
Configuring an ESP-WIFI-MESH Network
ESP-WIFI-MESH is configured via esp_mesh_set_config() which receives its
arguments using the mesh_cfg_t structure. The structure contains the following
parameters used to configure ESP-WIFI-MESH:
| Parameter | Description
|
| Channel | Range from 1 to 14
|
| Mesh ID | ID of ESP-WIFI-MESH Network, see mesh_addr_t
|
| Router | Router Configuration, see mesh_router_t
|
| Mesh AP | Mesh AP Configuration, see mesh_ap_cfg_t
|
| Crypto Functions | Crypto Functions for Mesh IE, see mesh_crypto_funcs_t
|
The following code snippet demonstrates how to configure ESP-WIFI-MESH.
/* Enable the Mesh IE encryption by default */
mesh_cfg_t cfg = MESH_INIT_CONFIG_DEFAULT();
/* mesh ID */
memcpy((uint8_t *) &cfg.mesh_id, MESH_ID, 6);
/* channel (must match the router's channel) */
cfg.channel = CONFIG_MESH_CHANNEL;
/* router */
cfg.router.ssid_len = strlen(CONFIG_MESH_ROUTER_SSID);
memcpy((uint8_t *) &cfg.router.ssid, CONFIG_MESH_ROUTER_SSID, cfg.router.ssid_len);
memcpy((uint8_t *) &cfg.router.password, CONFIG_MESH_ROUTER_PASSWD,
strlen(CONFIG_MESH_ROUTER_PASSWD));
/* mesh softAP */
cfg.mesh_ap.max_connection = CONFIG_MESH_AP_CONNECTIONS;
memcpy((uint8_t *) &cfg.mesh_ap.password, CONFIG_MESH_AP_PASSWD,
strlen(CONFIG_MESH_AP_PASSWD));
ESP_ERROR_CHECK(esp_mesh_set_config(&cfg));
Start Mesh
The following code snippet demonstrates how to start ESP-WIFI-MESH.
/* mesh start */
ESP_ERROR_CHECK( esp_mesh_start() );
After starting ESP-WIFI-MESH, the application should check for ESP-WIFI-MESH
events to determine when it has connected to the network. After connecting, the
application can start transmitting and receiving packets over the ESP-WIFI-MESH
network using esp_mesh_send() and esp_mesh_recv().
Self Organized Networking
Self organized networking is a feature of ESP-WIFI-MESH where nodes can
autonomously scan/select/connect/reconnect to other nodes and routers. This
feature allows an ESP-WIFI-MESH network to operate with high degree of autonomy
by making the network robust to dynamic network topologies and conditions. With
self organized networking enabled, nodes in an ESP-WIFI-MESH network are able to
carry out the following actions without autonomously:
- Selection or election of the root node (see Automatic Root Node Selection in Building a Network)
- Selection of a preferred parent node (see Parent Node Selection in Building a Network)
- Automatic reconnection upon detecting a disconnection (see Intermediate
Parent Node Failure in Managing a Network)
When self organized networking is enabled, the ESP-WIFI-MESH stack will
internally make calls to Wi-Fi APIs. Therefore, the application layer should not
make any calls to Wi-Fi APIs whilst self organized networking is enabled as
doing so would risk interfering with ESP-WIFI-MESH.
toggling Self Organized Networking
Self organized networking can be enabled or disabled by the application at
runtime by calling the esp_mesh_set_self_organized() function. The function has
the two following parameters:
- bool enable specifies whether to enable or disable self organized networking.
- bool select_parent specifies whether a new parent node should be selected
when enabling self organized networking. Selecting a new parent has different
effects depending the node type and the node’s current state. This parameter is
unused when disabling self organized networking.
Disabling Self Organized Networking
The following code snippet demonstrates how to disable self organized networking.
// Disable self organized networking
esp_mesh_set_self_organized( false, false );
ESP-WIFI-MESH will attempt to maintain the node’s current Wi-Fi state when
disabling self organized networking.
If the node was previously connected to other nodes, it will remain connected.
If the node was previously disconnected and was scanning for a parent node or
router, it will stop scanning.
If the node was previously attempting to reconnect to a parent node or router,
it will stop reconnecting.
Enabling Self Organized Networking
ESP-WIFI-MESH will attempt to maintain the node’s current Wi-Fi state when
enabling self organized networking. However, depending on the node type and
whether a new parent is selected, the Wi-Fi state of the node can change. The
following table shows effects of enabling self organized networking.
| Select Parent | Is Root Node | Effects
|
| N | N |
- Nodes already connected to a parent node will remain connected.
- Nodes previously scanning for a parent nodes will stop scanning.
Call esp_mesh_connect() to restart.
|
| Y |
- A root node already connected to router will stay connected.
- A root node disconnected from router will need to call
esp_mesh_connect() to reconnect.
|
| Y | N |
- Nodes without a parent node will automatically select a preferred
parent and connect.
- Nodes already connected to a parent node will disconnect, reselect a
preferred parent node, and connect.
|
| Y |
- For a root node to connect to a parent node, it must give up it’s role
as root. Therefore, a root node will disconnect from the router and all
child nodes, select a preferred parent node, and connect.
|
The following code snipping demonstrates how to enable self organized networking.
//Enable self organized networking and select a new parent
esp_mesh_set_self_organized(true, true);
...
//Enable self organized networking and manually reconnect
esp_mesh_set_self_organized(true, false);
esp_mesh_connect();
Calling Wi-Fi API
There can be instances in which an application may want to directly call Wi-Fi
API whilst using ESP-WIFI-MESH. For example, an application may want to manually
scan for neighboring APs. However, self organized networking must be disabled
before the application calls any Wi-Fi APIs. This will prevent the ESP-WIFI-MESH
stack from attempting to call any Wi-Fi APIs and potentially interfering with
the application’s calls.
Therefore, application calls to Wi-Fi APIs should be placed in between calls of
esp_mesh_set_self_organized() which disable and enable self organized networking.
The following code snippet demonstrates how an application can safely call
esp_wifi_scan_start() whilst using ESP-WIFI-MESH.
//Disable self organized networking
esp_mesh_set_self_organized(0, 0);
//Stop any scans already in progress
esp_wifi_scan_stop();
//Manually start scan. Will automatically stop when run to completion
esp_wifi_scan_start();
//Process scan results
...
//Re-enable self organized networking if still connected
esp_mesh_set_self_organized(1, 0);
...
//Re-enable self organized networking if non-root and disconnected
esp_mesh_set_self_organized(1, 1);
...
//Re-enable self organized networking if root and disconnected
esp_mesh_set_self_organized(1, 0); //Don't select new parent
esp_mesh_connect(); //Manually reconnect to router
Application Examples
ESP-IDF contains these ESP-WIFI-MESH example projects:
The Internal Communication Example demonstrates how to set up a ESP-WIFI-MESH
network and have the root node send a data packet to every node within the
network.
The Manual Networking Example demonstrates how to use ESP-WIFI-MESH without the
self-organizing features. This example shows how to program a node to manually
scan for a list of potential parent nodes and select a parent node based on
custom criteria.
API Reference
Header File
components/esp_wifi/include/esp_mesh.h
Functions
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_init( void )
Mesh initialization.
Check whether Wi-Fi is started.
Initialize mesh global variables with default values.
Attention
This API shall be called after Wi-Fi is started.
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_deinit( void )
Mesh de-initialization.
- Release resources and stop the mesh
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_start( void )
Start mesh.
Initialize mesh IE.
Start mesh network management service.
Create TX and RX queues according to the configuration.
Register mesh packets receive callback.
Attention
This API shall be called after mesh initialization and configuration.
Returns
ESP_OK
ESP_FAIL
ESP_ERR_MESH_NOT_INIT
ESP_ERR_MESH_NOT_CONFIG
ESP_ERR_MESH_NO_MEMORY
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_stop( void )
Stop mesh.
Deinitialize mesh IE.
Disconnect with current parent.
Disassociate all currently associated children.
Stop mesh network management service.
Unregister mesh packets receive callback.
Delete TX and RX queues.
Release resources.
Restore Wi-Fi softAP to default settings if Wi-Fi dual mode is enabled.
Set Wi-Fi Power Save type to WIFI_PS_NONE.
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t esp_mesh_send( const mesh_addr_t *to, const mesh_data_t *data
, int flag, const mesh_opt_t opt[], int opt_count )
Send a packet over the mesh network.
Send a packet to any device in the mesh network.
Send a packet to external IP network.
Attention
This API is not reentrant.
Parameters
to – [in] the address of the final destination of the packet
If the packet is to the root, set this parameter to NULL.
If the packet is to an external IP network, set this parameter
to the IPv4:PORT combination. This packet will be delivered to
the root firstly, then the root will forward this packet to the
final IP server address.
data – [in] pointer to a sending mesh packet
Field size should not exceed MESH_MPS. Note that the size of one
mesh packet should not exceed MESH_MTU.
Field proto should be set to data protocol in use (default is M
ESH_PROTO_BIN for binary).
Field tos should be set to transmission tos (type of service) in
use (default is MESH_TOS_P2P for point-to-point reliable).
flag – [in] bitmap for data sent
Speed up the route search
If the packet is to the root and “to” parameter is NULL, set
this parameter to 0.
If the packet is to an internal device, MESH_DATA_P2P should
be set.
If the packet is to the root (“to” parameter isn’t NULL) or
to external IP network, MESH_DATA_TODS should be set.
If the packet is from the root to an internal device,
MESH_DATA_FROMDS should be set.
Specify whether this API is block or non-block, block by default
If needs non-blocking, MESH_DATA_NONBLOCK should be set.
Otherwise, may use esp_mesh_send_block_time() to specify a
blocking time.
In the situation of the root change, MESH_DATA_DROP identifies
this packet can be dropped by the new root for upstream data to
external IP network, we try our best to avoid data loss caused
by the root change, but there is a risk that the new root is
running out of memory because most of memory is occupied by the
pending data which isn’t read out in time by
esp_mesh_recv_toDS().
Generally, we suggest esp_mesh_recv_toDS() is called after a
connection with IP network is created. Thus data outgoing to
external IP network via socket is just from reading
esp_mesh_recv_toDS() which avoids unnecessary memory copy.
opt – [in] options
In case of sending a packet to a certain group,
MESH_OPT_SEND_GROUP is a good choice. In this option, the value
field should be set to the target receiver addresses in this
group.
Root sends a packet to an internal device, this packet is from
external IP network in case the receiver device responds this
packet, MESH_OPT_RECV_DS_ADDR is required to attach the target
DS address.
opt_count – [in] option count
Currently, this API only takes one option, so opt_count is only
supported to be 1.
Returns
ESP_OK
ESP_FAIL
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_START
ESP_ERR_MESH_DISCONNECTED
ESP_ERR_MESH_OPT_UNKNOWN
ESP_ERR_MESH_EXCEED_MTU
ESP_ERR_MESH_NO_MEMORY
ESP_ERR_MESH_TIMEOUT
ESP_ERR_MESH_QUEUE_FULL
ESP_ERR_MESH_NO_ROUTE_FOUND
ESP_ERR_MESH_DISCARD
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_send_block_time( uint32_t time_ms )
Set blocking time of esp_mesh_send()
Attention
This API shall be called before mesh is started.
Parameters
time_ms – [in] blocking time of esp_mesh_send(), unit:ms
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_recv( mesh_addr_t *from, mesh_data_t *data, int timeout_ms, int *flag
, mesh_opt_t opt[], int opt_count )
Receive a packet targeted to self over the mesh network.
flag could be MESH_DATA_FROMDS or MESH_DATA_TODS.
Attention
Mesh RX queue should be checked regularly to avoid running out of memory.
Use esp_mesh_get_rx_pending() to check the number of packets
available in the queue waiting to be received by applications.
Parameters
from – [out] the address of the original source of the packet
data – [out] pointer to the received mesh packet
Field proto is the data protocol in use. Should follow it to
parse the received data.
Field tos is the transmission tos (type of service) in use.
timeout_ms – [in] wait time if a packet isn’t immediately available
(0:no wait, portMAX_DELAY:wait forever)
flag – [out] bitmap for data received
MESH_DATA_FROMDS represents data from external IP network
MESH_DATA_TODS represents data directed upward within the mesh
network
opt – [out] options desired to receive
MESH_OPT_RECV_DS_ADDR attaches the DS address
opt_count – [in] option count desired to receive
Currently, this API only takes one option, so opt_count is only
supported to be 1.
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_START
ESP_ERR_MESH_TIMEOUT
ESP_ERR_MESH_DISCARD
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_recv_toDS( mesh_addr_t *from, mesh_addr_t *to, mesh_data_t *data
, int timeout_ms, int *flag, mesh_opt_t opt[], int opt_count )
Receive a packet targeted to external IP network.
Root uses this API to receive packets destined to external IP network
Root forwards the received packets to the final destination via socket.
If no socket connection is ready to send out the received packets and
this esp_mesh_recv_toDS() hasn’t been called by applications, packets
from the whole mesh network will be pending in toDS queue.
Use esp_mesh_get_rx_pending() to check the number of packets available in the
queue waiting to be received by applications in case of running out of memory in
the root.
Using esp_mesh_set_xon_qsize() users may configure the RX queue size, default:32.
If this size is too large, and esp_mesh_recv_toDS() isn’t called in time, there
is a risk that a great deal of memory is occupied by the pending packets. If
this size is too small, it will impact the efficiency on upstream. How to decide
this value depends on the specific application scenarios.
flag could be MESH_DATA_TODS.
Attention
This API is only called by the root.
Parameters
- from – [out] the address of the original source of the packet
- to – [out] the address contains remote IP address and port (IPv4:PORT)
- data – [out] pointer to the received packet
Contain the protocol and applications should follow it to parse the data.
- timeout_ms – [in] wait time if a packet isn’t immediately available (0:no wait, portMAX_DELAY:wait forever)
- flag – [out] bitmap for data received
MESH_DATA_TODS represents the received data target to external IP network. Root shall forward this data to external IP network via the association with router.
- opt – [out] options desired to receive
- opt_count – [in] option count desired to receive
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_START
ESP_ERR_MESH_TIMEOUT
ESP_ERR_MESH_DISCARD
ESP_ERR_MESH_RECV_RELEASE
esp_err_t esp_mesh_set_config(const mesh_cfg_t *config)
Set mesh stack configuration.
Use MESH_INIT_CONFIG_DEFAULT() to initialize the default values, mesh
IE is encrypted by default.
Mesh network is established on a fixed channel (1-14).
Mesh event callback is mandatory.
Mesh ID is an identifier of an MBSS. Nodes with the same mesh ID can
communicate with each other.
Regarding to the router configuration, if the router is hidden, BSSID
field is mandatory.
If BSSID field isn’t set and there exists more than one router with same
SSID, there is a risk that more roots than one connected with different
BSSID will appear. It means more than one mesh network is established with
the same mesh ID.
Root conflict function could eliminate redundant roots connected with the
same BSSID, but couldn’t handle roots connected with different BSSID.
Because users might have such requirements of setting up routers with same
SSID for the future replacement. But in that case, if the above situations
happen, please make sure applications implement forward functions on the
root to guarantee devices in different mesh networks can communicate with
each other. max_connection of mesh softAP is limited by the max number of
Wi-Fi softAP supported (max:10).
Attention
This API shall be called before mesh is started after mesh is
initialized.
Parameters
config – [in] pointer to mesh stack configuration
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_config( mesh_cfg_t *config )
Get mesh stack configuration.
Parameters
config – [out] pointer to mesh stack configuration
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_router( const mesh_router_t *router )
Get router configuration.
Attention
This API is used to dynamically modify the router configuration after
mesh is configured.
Parameters
router – [in] pointer to router configuration
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_router( mesh_router_t *router )
Get router configuration.
Parameters
router – [out] pointer to router configuration
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_id( const mesh_addr_t *id )
Set mesh network ID.
Attention
This API is used to dynamically modify the mesh network ID.
Parameters
id – [in] pointer to mesh network ID
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT: invalid argument
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_id( mesh_addr_t *id )
Get mesh network ID.
Parameters
id – [out] pointer to mesh network ID
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_type( mesh_type_t type )
Designate device type over the mesh network.
MESH_IDLE: designates a device as a self-organized node for a mesh
network
MESH_ROOT: designates the root node for a mesh network
MESH_LEAF: designates a device as a standalone Wi-Fi station that
connects to a parent
MESH_STA: designates a device as a standalone Wi-Fi station that
connects to a router
Parameters
type – [in] device type
Returns
ESP_OK
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
mesh_type_t
esp_mesh_get_type( void )
Get device type over mesh network.
Attention
This API shall be called after having received the event
MESH_EVENT_PARENT_CONNECTED.
Returns
mesh type
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_max_layer( int max_layer )
Set network max layer value.
for tree topology, the max is 25.
for chain topology, the max is 1000.
Network max layer limits the max hop count.
Attention
This API shall be called before mesh is started.
Parameters
max_layer – [in] max layer value
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_max_layer( void )
Get max layer value.
Returns
max layer value
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_ap_password( const uint8_t *pwd, int len )
Set mesh softAP password.
Attention
This API shall be called before mesh is started.
Parameters
pwd – [in] pointer to the password
len – [in] password length
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_ap_authmode( wifi_auth_mode_t authmode )
Set mesh softAP authentication mode.
Attention
This API shall be called before mesh is started.
Parameters
authmode – [in] authentication mode
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
wifi_auth_mode_t
esp_mesh_get_ap_authmode( void )
Get mesh softAP authentication mode.
Returns
authentication mode
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_ap_connections( int connections )
Set mesh max connection value.
Set mesh softAP max connection = mesh max connection + non-mesh max
connection
Attention
This API shall be called before mesh is started.
Parameters
connections – [in] the number of max connections
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_ap_connections( void )
Get mesh max connection configuration.
Returns
the number of mesh max connections
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_non_mesh_connections( void )
Get non-mesh max connection configuration.
Returns
the number of non-mesh max connections
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_layer( void )
Get current layer value over the mesh network.
Attention
This API shall be called after having received the event
MESH_EVENT_PARENT_CONNECTED.
Returns
layer value
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_parent_bssid( mesh_addr_t *bssid )
Get the parent BSSID.
Attention
This API shall be called after having received the event
MESH_EVENT_PARENT_CONNECTED.
Parameters
bssid – [out] pointer to parent BSSID
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_is_root( void )
Return whether the device is the root node of the network.
Returns
true/false
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_self_organized( bool enable, bool select_parent )
Enable/disable self-organized networking.
Self-organized networking has three main functions: select the root
node; find a preferred parent; initiate reconnection if a disconnection
is detected.
Self-organized networking is enabled by default.
If self-organized is disabled, users should set a parent for the device
` via esp_mesh_set_parent().
Attention
This API is used to dynamically modify whether to enable the self
organizing.
Parameters
enable – [in] enable or disable self-organized networking
select_parent – [in] Only valid when self-organized networking is
enabled.
if select_parent is set to true, the root will give up its mesh
root status and search for a new parent like other non-root
devices.
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_get_self_organized( void )
Return whether enable self-organized networking or not.
Returns
true/false
esp_err_t
esp_mesh_waive_root( const mesh_vote_t *vote, int reason )
Cause the root device to give up (waive) its mesh root status.
A device is elected root primarily based on RSSI from the external router.
If external router conditions change, users can call this API to perform
a root switch.
In this API, users could specify a desired root address to replace
itself or specify an attempts value to ask current root to initiate a
new round of voting. During the voting, a better root candidate would
be expected to find to replace the current one.
If no desired root candidate, the vote will try a specified number of
attempts (at least 15). If no better root candidate is found, keep the
current one. If a better candidate is found, the new better one will
send a root switch request to the current root, current root will
respond with a root switch acknowledgment.
After that, the new candidate will connect to the router to be a new
root, the previous root will disconnect with the router and choose
another parent instead.
Root switch is completed with minimal disruption to the whole mesh network.
Attention
This API is only called by the root.
Parameters
vote – [in] vote configuration
If this parameter is set NULL, the vote will perform the default 15 times.
Field percentage threshold is 0.9 by default.
Field is_rc_specified shall be false.
Field attempts shall be at least 15 times.
reason – [in] only accept MESH_VOTE_REASON_ROOT_INITIATED for now
Returns
ESP_OK
ESP_ERR_MESH_QUEUE_FULL
ESP_ERR_MESH_DISCARD
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_vote_percentage( float percentage )
Set vote percentage threshold for approval of being a root (default:0.9)
During the networking, only obtaining vote percentage reaches this
threshold, the device could be a root.
Attention
This API shall be called before mesh is started.
Parameters
percentage – [in] vote percentage threshold
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
float
esp_mesh_get_vote_percentage( void )
Get vote percentage threshold for approval of being a root.
Returns
percentage threshold
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_ap_assoc_expire( int seconds )
Set mesh softAP associate expired time (default:10 seconds)
If mesh softAP hasn’t received any data from an associated child within
this time, mesh softAP will take this child inactive and disassociate
it.
If mesh softAP is encrypted, this value should be set a greater value,
such as 30 seconds.
Parameters
seconds – [in] the expired time
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_ap_assoc_expire( void )
Get mesh softAP associate expired time.
Returns
seconds
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_total_node_num( void )
Get total number of devices in current network (including the root)
Attention
The returned value might be incorrect when the network is changing.
Returns
total number of devices (including the root)
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_routing_table_size( void )
Get the number of devices in this device’s sub-network (including self)
Returns
the number of devices over this device’s sub-network (including self)
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_routing_table( mesh_addr_t *mac, int len, int *size )
Get routing table of this device’s sub-network (including itself)
Parameters
mac – [out] pointer to routing table
len – [in] routing table size(in bytes)
size – [out] pointer to the number of devices in routing table
(including itself)
Returns
ESP_OK
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_post_toDS_state( bool reachable )
Post the toDS state to the mesh stack.
Attention
This API is only for the root.
Parameters
reachable – [in] this state represents whether the root is able to
access external IP network
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_tx_pending( mesh_tx_pending_t *pending )
Return the number of packets pending in the queue waiting to be sent by the
mesh stack.
Parameters
pending – [out] pointer to the TX pending
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_rx_pending( mesh_rx_pending_t *pending )
Return the number of packets available in the queue waiting to be received
by applications.
Parameters
pending – [out] pointer to the RX pending
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_available_txupQ_num( const mesh_addr_t *addr, uint32_t *xseqno_in )
Return the number of packets could be accepted from the specified address.
Parameters
addr – [in] self address or an associate children address
xseqno_in – [out] sequence number of the last received packet from
the specified address
Returns
the number of upQ for a certain address
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_xon_qsize( int qsize )
Set the number of queue.
Attention
This API shall be called before mesh is started.
Parameters
qsize – [in] default:32 (min:16)
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_xon_qsize( void )
Get queue size.
Returns
the number of queue
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_allow_root_conflicts( bool allowed )
Set whether allow more than one root existing in one network.
Parameters
allowed – [in] allow or not
Returns
ESP_OK
ESP_WIFI_ERR_NOT_INIT
ESP_WIFI_ERR_NOT_START
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_is_root_conflicts_allowed( void )
Check whether allow more than one root to exist in one network.
Returns
true/false
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_group_id( const mesh_addr_t *addr, int num )
Set group ID addresses.
Parameters
addr – [in] pointer to new group ID addresses
num – [in] the number of group ID addresses
Returns
ESP_OK
ESP_MESH_ERR_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_delete_group_id( const mesh_addr_t *addr, int num )
Delete group ID addresses.
Parameters
addr – [in] pointer to deleted group ID address
num – [in] the number of group ID addresses
Returns
ESP_OK
ESP_MESH_ERR_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_group_num( void )
Get the number of group ID addresses.
Returns
the number of group ID addresses
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_group_list( mesh_addr_t *addr, int num )
Get group ID addresses.
Parameters
addr – [out] pointer to group ID addresses
num – [in] the number of group ID addresses
Returns
ESP_OK
ESP_MESH_ERR_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_is_my_group( const mesh_addr_t *addr )
Check whether the specified group address is my group.
Returns
true/false
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_capacity_num( int num )
Set mesh network capacity (max:1000, default:300)
Attention
This API shall be called before mesh is started.
Parameters
num – [in] mesh network capacity
Returns
ESP_OK
ESP_ERR_MESH_NOT_ALLOWED
ESP_MESH_ERR_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_capacity_num( void )
Get mesh network capacity.
Returns
mesh network capacity
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_ie_crypto_funcs( const mesh_crypto_funcs_t *crypto_funcs )
Set mesh IE crypto functions.
Attention
This API can be called at any time after mesh is initialized.
Parameters
crypto_funcs – [in] crypto functions for mesh IE
If crypto_funcs is set to NULL, mesh IE is no longer encrypted.
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_ie_crypto_key( const char *key, int len )
Set mesh IE crypto key.
Attention
This API can be called at any time after mesh is initialized.
Parameters
key – [in] ASCII crypto key
len – [in] length in bytes, range:8~64
Returns
ESP_OK
ESP_MESH_ERR_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_ie_crypto_key( char *key, int len )
Get mesh IE crypto key.
Parameters
key – [out] ASCII crypto key
len – [in] length in bytes, range:8~64
Returns
ESP_OK
ESP_MESH_ERR_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_root_healing_delay( int delay_ms )
Set delay time before starting root healing.
Parameters
delay_ms – [in] delay time in milliseconds
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_root_healing_delay( void )
Get delay time before network starts root healing.
Returns
delay time in milliseconds
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_fix_root( bool enable )
Enable network Fixed Root Setting.
Enabling fixed root disables automatic election of the root node via
voting.
All devices in the network shall use the same Fixed Root Setting
(enabled or disabled).
If Fixed Root is enabled, users should make sure a root node is
designated for the network.
Parameters
enable – [in] enable or not
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_is_root_fixed( void )
Check whether network Fixed Root Setting is enabled.
Enable/disable network Fixed Root Setting by API esp_mesh_fix_root().
Network Fixed Root Setting also changes with the “flag” value in parent
networking IE.
Returns
true/false
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_parent( const wifi_config_t *parent
, const mesh_addr_t *parent_mesh_id, mesh_type_t my_type, int my_layer )
Set a specified parent for the device.
Attention
This API can be called at any time after mesh is configured.
Parameters
parent – [in] parent configuration, the SSID and the channel of the
parent are mandatory.
If the BSSID is set, make sure that the SSID and BSSID represent
the same parent, otherwise the device will never find this
specified parent.
parent_mesh_id – [in] parent mesh ID,
If this value is not set, the original mesh ID is used.
my_type – [in] mesh type
MESH_STA is not supported.
If the parent set for the device is the same as the router in
the network configuration, then my_type shall set MESH_ROOT and
my_layer shall set MESH_ROOT_LAYER.
my_layer – [in] mesh layer
my_layer of the device may change after joining the network.
If my_type is set MESH_NODE, my_layer shall be greater than
MESH_ROOT_LAYER.
If my_type is set MESH_LEAF, the device becomes a standalone
Wi-Fi station and no longer has the ability to extend the
network.
Returns
ESP_OK
ESP_ERR_ARGUMENT
ESP_ERR_MESH_NOT_CONFIG
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_scan_get_ap_ie_len( int *len )
Get mesh networking IE length of one AP.
Parameters
len – [out] mesh networking IE length
Returns
ESP_OK
ESP_ERR_WIFI_NOT_INIT
ESP_ERR_WIFI_ARG
ESP_ERR_WIFI_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_scan_get_ap_record( wifi_ap_record_t *ap_record, void *buffer )
Get AP record.
Attention
Different from esp_wifi_scan_get_ap_records(), this API only gets one
of APs scanned each time. See “manual_networking” example.
Parameters
ap_record – [out] pointer to one AP record
buffer – [out] pointer to the mesh networking IE of this AP
Returns
ESP_OK
ESP_ERR_WIFI_NOT_INIT
ESP_ERR_WIFI_ARG
ESP_ERR_WIFI_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_flush_upstream_packets( void )
Flush upstream packets pending in to_parent queue and to_parent_p2p queue.
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_subnet_nodes_num( const mesh_addr_t *child_mac, int *nodes_num )
Get the number of nodes in the subnet of a specific child.
Parameters
child_mac – [in] an associated child address of this device
nodes_num – [out] pointer to the number of nodes in the subnet of a
specific child
Returns
ESP_OK
ESP_ERR_MESH_NOT_START
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_subnet_nodes_list( const mesh_addr_t *child_mac
, mesh_addr_t *nodes, int nodes_num )
Get nodes in the subnet of a specific child.
Parameters
child_mac – [in] an associated child address of this device
nodes – [out] pointer to nodes in the subnet of a specific child
nodes_num – [in] the number of nodes in the subnet of a specific
child
Returns
ESP_OK
ESP_ERR_MESH_NOT_START
ESP_ERR_MESH_ARGUMENT
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_disconnect( void )
Disconnect from current parent.
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_connect( void )
Connect to current parent.
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_flush_scan_result( void )
Flush scan result.
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_switch_channel( const uint8_t *new_bssid, int csa_newchan, int csa_count
)
Cause the root device to add Channel Switch Announcement Element (CSA IE)
to beacon.
Set the new channel
Set how many beacons with CSA IE will be sent before changing a new
channel
Enable the channel switch function
Attention
This API is only called by the root.
Parameters
new_bssid – [in] the new router BSSID if the router changes
csa_newchan – [in] the new channel number to which the whole
network is moving
csa_count – [in] channel switch period(beacon count), unit is based
on beacon interval of its softAP, the default value is 15.
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_router_bssid( uint8_t *router_bssid )
Get the router BSSID.
Parameters
router_bssid – [out] pointer to the router BSSID
Returns
ESP_OK
ESP_ERR_WIFI_NOT_INIT
ESP_ERR_WIFI_ARG
/*F********************************************************************
*
**********************************************************************/
int64_t
esp_mesh_get_tsf_time( void )
Get the TSF time.
Returns
the TSF time
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_topology( esp_mesh_topology_t topo )
Set mesh topology. The default value is MESH_TOPO_TREE.
MESH_TOPO_CHAIN supports up to 1000 layers
Attention
This API shall be called before mesh is started.
Parameters
topo – [in] MESH_TOPO_TREE or MESH_TOPO_CHAIN
Returns
ESP_OK
ESP_MESH_ERR_ARGUMENT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
esp_mesh_topology_t
esp_mesh_get_topology( void )
Get mesh topology.
Returns
MESH_TOPO_TREE or MESH_TOPO_CHAIN
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_enable_ps( void )
Enable mesh Power Save function.
Attention
This API shall be called before mesh is started.
Returns
ESP_OK
ESP_ERR_WIFI_NOT_INIT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_disable_ps( void )
Disable mesh Power Save function.
Attention
This API shall be called before mesh is started.
Returns
ESP_OK
ESP_ERR_WIFI_NOT_INIT
ESP_ERR_MESH_NOT_ALLOWED
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_is_ps_enabled( void )
Check whether the mesh Power Save function is enabled.
Returns
true/false
/*F********************************************************************
*
**********************************************************************/
bool
esp_mesh_is_device_active( void )
Check whether the device is in active state.
If the device is not in active state, it will neither transmit nor
receive frames.
Returns
true/false
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_active_duty_cycle( int dev_duty, int dev_duty_type )
Set the device duty cycle and type.
The range of dev_duty values is 1 to 100. The default value is 10.
dev_duty = 100, the PS will be stopped.
dev_duty is better to not less than 5.
dev_duty_type could be MESH_PS_DEVICE_DUTY_REQUEST or
MESH_PS_DEVICE_DUTY_DEMAND.
If dev_duty_type is set to MESH_PS_DEVICE_DUTY_REQUEST, the device will
use a nwk_duty provided by the network.
If dev_duty_type is set to MESH_PS_DEVICE_DUTY_DEMAND, the device will
use the specified dev_duty.
Attention
This API can be called at any time after mesh is started.
Parameters
dev_duty – [in] device duty cycle
dev_duty_type – [in] device PS duty cycle type, not accept
MESH_PS_NETWORK_DUTY_MASTER
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_active_duty_cycle( int *dev_duty, int *dev_duty_type )
Get device duty cycle and type.
Parameters
dev_duty – [out] device duty cycle
dev_duty_type – [out] device PS duty cycle type
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_set_network_duty_cycle( int nwk_duty, int duration_mins
, int applied_rule )
Set the network duty cycle, duration and rule.
The range of nwk_duty values is 1 to 100. The default value is 10.
nwk_duty is the network duty cycle the entire network or the up-link
path will use. A device that successfully sets the nwk_duty is known as
a NWK-DUTY-MASTER.
duration_mins specifies how long the specified nwk_duty will be used.
Once duration_mins expires, the root will take over as the
NWK-DUTY-MASTER. If an existing NWK-DUTY-MASTER leaves the network, the
root will take over as the NWK-DUTY-MASTER again.
duration_mins = (-1) represents nwk_duty will be used until a new
NWK-DUTY-MASTER with a different nwk_duty appears.
Only the root can set duration_mins to (-1).
If applied_rule is set to MESH_PS_NETWORK_DUTY_APPLIED_ENTIRE, the
nwk_duty will be used by the entire network.
If applied_rule is set to MESH_PS_NETWORK_DUTY_APPLIED_UPLINK, the
nwk_duty will only be used by the up-link path nodes.
The root does not accept MESH_PS_NETWORK_DUTY_APPLIED_UPLINK.
A nwk_duty with duration_mins(-1) set by the root is the default network
duty cycle used by the entire network.
Attention
This API can be called at any time after mesh is started.
In self-organized network, if this API is called before mesh is
started in all devices, (1)nwk_duty shall be set to the same value for
all devices; (2)duration_mins shall be set to (-1); (3)applied_rule
shall be set to MESH_PS_NETWORK_DUTY_APPLIED_ENTIRE; after the voted
root appears, the root will become the NWK-DUTY-MASTER and broadcast
the nwk_duty and its identity of NWK-DUTY-MASTER.
If the root is specified (FIXED-ROOT), call this API in the root to
provide a default nwk_duty for the entire network.
After joins the network, any device can call this API to change the
nwk_duty, duration_mins or applied_rule.
Parameters
nwk_duty – [in] network duty cycle
duration_mins – [in] duration (unit: minutes)
applied_rule – [in] only support MESH_PS_NETWORK_DUTY_APPLIED_ENTIRE
Returns
ESP_OK
ESP_FAIL
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_get_network_duty_cycle( int *nwk_duty, int *duration_mins
, int *dev_duty_type, int *applied_rule )
Get the network duty cycle, duration, type and rule.
Parameters
nwk_duty – [out] current network duty cycle
duration_mins – [out] the duration of current nwk_duty
dev_duty_type – [out] if it includes MESH_PS_DEVICE_DUTY_MASTER,
this device is the current NWK-DUTY-MASTER.
applied_rule – [out] MESH_PS_NETWORK_DUTY_APPLIED_ENTIRE
Returns
ESP_OK
/*F********************************************************************
*
**********************************************************************/
int
esp_mesh_get_running_active_duty_cycle( void )
Get the running active duty cycle.
The running active duty cycle of the root is 100.
If duty type is set to MESH_PS_DEVICE_DUTY_REQUEST, the running active
duty cycle is nwk_duty provided by the network.
If duty type is set to MESH_PS_DEVICE_DUTY_DEMAND, the running active
duty cycle is dev_duty specified by the users.
In a mesh network, devices are typically working with a certain
duty-cycle (transmitting, receiving and sleep) to reduce the power
consumption. The running active duty cycle decides the amount of awake
time within a beacon interval. At each start of beacon interval, all
devices wake up, broadcast beacons, and transmit packets if they do have
pending packets for their parents or for their children. Note that
Low-duty-cycle means devices may not be active in most of the time, the
latency of data transmission might be greater.
Returns
the running active duty cycle
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_mesh_ps_duty_signaling( int fwd_times )
Duty signaling.
Parameters
fwd_times – [in] the times of forwarding duty signaling packets
Returns
ESP_OK
Unions
union mesh_addr_t
#include
Mesh address.
Public Members
uint8_t addr[6]
mac address
mip_t mip
mip address
union mesh_event_info_t
#include
Mesh event information.
Public Members
mesh_event_channel_switch_t channel_switch
channel switch
mesh_event_child_connected_t child_connected
child connected
mesh_event_child_disconnected_t child_disconnected
child disconnected
mesh_event_routing_table_change_t routing_table
routing table change
mesh_event_connected_t connected
parent connected
mesh_event_disconnected_t disconnected
parent disconnected
mesh_event_no_parent_found_t no_parent
no parent found
mesh_event_layer_change_t layer_change
layer change
mesh_event_toDS_state_t toDS_state
toDS state, devices shall check this state firstly before trying to send
packets to external IP network. This state indicates right now whether the root
is capable of sending packets out. If not, devices had better to wait until this
state changes to be MESH_TODS_REACHABLE.
mesh_event_vote_started_t vote_started
vote started
mesh_event_root_address_t root_addr
root address
mesh_event_root_switch_req_t switch_req
root switch request
mesh_event_root_conflict_t root_conflict
other powerful root
mesh_event_root_fixed_t root_fixed
fixed root
mesh_event_scan_done_t scan_done
scan done
mesh_event_network_state_t network_state
network state, such as whether current mesh network has a root.
mesh_event_find_network_t find_network
network found that can join
mesh_event_router_switch_t router_switch
new router information
mesh_event_ps_duty_t ps_duty
PS duty information
union mesh_rc_config_t
#include
Vote address configuration.
Public Members
int attempts
max vote attempts before a new root is elected automatically by mesh
network. (min:15, 15 by default)
mesh_addr_t rc_addr
a new root address specified by users for API esp_mesh_waive_root()
Structures
struct mip_t
IP address and port.
Public Members
ip4_addr_t ip4
IP address
uint16_t port
port
struct mesh_event_channel_switch_t
Channel switch information.
Public Members
uint8_t channel
new channel
struct mesh_event_connected_t
Parent connected information.
Public Members
wifi_event_sta_connected_t connected
parent information, same as Wi-Fi event SYSTEM_EVENT_STA_CONNECTED does
uint16_t self_layer
layer
uint8_t duty
parent duty
struct mesh_event_no_parent_found_t
No parent found information.
Public Members
int scan_times
scan times being through
struct mesh_event_layer_change_t
Layer change information.
Public Members
uint16_t new_layer
new layer
struct mesh_event_vote_started_t
vote started information
Public Members
int reason
vote reason, vote could be initiated by children or by the root itself
int attempts
max vote attempts before stopped
mesh_addr_t rc_addr
root address specified by users via API esp_mesh_waive_root()
struct mesh_event_find_network_t
find a mesh network that this device can join
Public Members
uint8_t channel
channel number of the new found network
uint8_t router_bssid[6]
router BSSID
struct mesh_event_root_switch_req_t
Root switch request information.
Public Members
int reason
root switch reason, generally root switch is initialized by users via
API esp_mesh_waive_root()
mesh_addr_t rc_addr
the address of root switch requester
struct mesh_event_root_conflict_t
Other powerful root address.
Public Members
int8_t rssi
rssi with router
uint16_t capacity
the number of devices in current network
uint8_t addr[6]
other powerful root address
struct mesh_event_routing_table_change_t
Routing table change.
Public Members
uint16_t rt_size_new
the new value
uint16_t rt_size_change
the changed value
struct mesh_event_root_fixed_t
Root fixed.
Public Members
bool is_fixed
status
struct mesh_event_scan_done_t
Scan done event information.
Public Members
uint8_t number
the number of APs scanned
struct mesh_event_network_state_t
Network state information.
Public Members
bool is_rootless
whether current mesh network has a root
struct mesh_event_ps_duty_t
PS duty information.
Public Members
uint8_t duty
parent or child duty
mesh_event_child_connected_t child_connected
child info
struct mesh_opt_t
Mesh option.
Public Members
uint8_t type
option type
uint16_t len
option length
uint8_t *val
option value
struct mesh_data_t
Mesh data for esp_mesh_send() and esp_mesh_recv()
Public Members
uint8_t *data
data
uint16_t size
data size
mesh_proto_t proto
data protocol
mesh_tos_t tos
data type of service
struct mesh_router_t
Router configuration.
Public Members
uint8_t ssid[32]
SSID
uint8_t ssid_len
length of SSID
uint8_t bssid[6]
BSSID, if this value is specified, users should also specify “allow_router_switch”.
uint8_t password[64]
password
bool allow_router_switch
if the BSSID is specified and this value is also set, when the router of this specified BSSID fails to be found after “fail” (mesh_attempts_t) times, the whole network is allowed to switch to another router with the same SSID. The new router might also be on a different channel. The default value is false. There is a risk that if the password is different between the new switched router and the previous one, the mesh network could be established but the root will never connect to the new switched router.
struct mesh_ap_cfg_t
Mesh softAP configuration.
Public Members
uint8_t password[64]
mesh softAP password
uint8_t max_connection
max number of stations allowed to connect in, default 6, max 10 = max_connection + nonmesh_max_connection max mesh connections
uint8_t nonmesh_max_connection
max non-mesh connections
struct mesh_cfg_t
Mesh initialization configuration.
Public Members
uint8_t channel
channel, the mesh network on
bool allow_channel_switch
if this value is set, when “fail” (mesh_attempts_t) times is reached, device will change to a full channel scan for a network that could join. The default value is false.
mesh_addr_t mesh_id
mesh network identification
mesh_router_t router
router configuration
mesh_ap_cfg_t mesh_ap
mesh softAP configuration
const mesh_crypto_funcs_t *crypto_funcs
crypto functions
struct mesh_vote_t
Vote.
Public Members
float percentage
vote percentage threshold for approval of being a root
bool is_rc_specified
if true, rc_addr shall be specified (Unimplemented). if false, attempts value shall be specified to make network start root election.
mesh_rc_config_t config
vote address configuration
struct mesh_tx_pending_t
The number of packets pending in the queue waiting to be sent by the mesh stack.
Public Members
int to_parent
to parent queue
int to_parent_p2p
to parent (P2P) queue
int to_child
to child queue
int to_child_p2p
to child (P2P) queue
int mgmt
management queue
int broadcast
broadcast and multicast queue
struct mesh_rx_pending_t
The number of packets available in the queue waiting to be received by
applications.
Public Members
int toDS
to external DS
int toSelf
to self
Macros
MESH_ROOT_LAYER
root layer value
MESH_MTU
max transmit unit(in bytes)
MESH_MPS
max payload size(in bytes)
ESP_ERR_MESH_WIFI_NOT_START
Mesh error code definition.
Wi-Fi isn’t started
ESP_ERR_MESH_NOT_INIT
mesh isn’t initialized
ESP_ERR_MESH_NOT_CONFIG
mesh isn’t configured
ESP_ERR_MESH_NOT_START
mesh isn’t started
ESP_ERR_MESH_NOT_SUPPORT
not supported yet
ESP_ERR_MESH_NOT_ALLOWED
operation is not allowed
ESP_ERR_MESH_NO_MEMORY
out of memory
ESP_ERR_MESH_ARGUMENT
illegal argument
ESP_ERR_MESH_EXCEED_MTU
packet size exceeds MTU
ESP_ERR_MESH_TIMEOUT
timeout
ESP_ERR_MESH_DISCONNECTED
disconnected with parent on station interface
ESP_ERR_MESH_QUEUE_FAIL
queue fail
ESP_ERR_MESH_QUEUE_FULL
queue full
ESP_ERR_MESH_NO_PARENT_FOUND
no parent found to join the mesh network
ESP_ERR_MESH_NO_ROUTE_FOUND
no route found to forward the packet
ESP_ERR_MESH_OPTION_NULL
no option found
ESP_ERR_MESH_OPTION_UNKNOWN
unknown option
ESP_ERR_MESH_XON_NO_WINDOW
no window for software flow control on upstream
ESP_ERR_MESH_INTERFACE
low-level Wi-Fi interface error
ESP_ERR_MESH_DISCARD_DUPLICATE
discard the packet due to the duplicate sequence number
ESP_ERR_MESH_DISCARD
discard the packet
ESP_ERR_MESH_VOTING
vote in progress
ESP_ERR_MESH_XMIT
XMIT
ESP_ERR_MESH_QUEUE_READ
error in reading queue
ESP_ERR_MESH_PS
mesh PS is not specified as enable or disable
ESP_ERR_MESH_RECV_RELEASE
release esp_mesh_recv_toDS
MESH_DATA_ENC
Flags bitmap for esp_mesh_send() and esp_mesh_recv()
data encrypted (Unimplemented)
MESH_DATA_P2P
point-to-point delivery over the mesh network
MESH_DATA_FROMDS
receive from external IP network
MESH_DATA_TODS
identify this packet is target to external IP network
MESH_DATA_NONBLOCK
esp_mesh_send() non-block
MESH_DATA_DROP
in the situation of the root having been changed, identify this packet can be dropped by new root
MESH_DATA_GROUP
identify this packet is target to a group address
MESH_OPT_SEND_GROUP
Option definitions for esp_mesh_send() and esp_mesh_recv()
data transmission by group; used with esp_mesh_send() and shall have payload
MESH_OPT_RECV_DS_ADDR
return a remote IP address; used with esp_mesh_send() and esp_mesh_recv()
MESH_ASSOC_FLAG_VOTE_IN_PROGRESS
Flag of mesh networking IE.
vote in progress
MESH_ASSOC_FLAG_NETWORK_FREE
no root in current network
MESH_ASSOC_FLAG_ROOTS_FOUND
root conflict is found
MESH_ASSOC_FLAG_ROOT_FIXED
fixed root
MESH_PS_DEVICE_DUTY_REQUEST
Mesh PS (Power Save) duty cycle type.
requests to join a network PS without specifying a device duty cycle. After the device joins the network, a network duty cycle will be provided by the network
MESH_PS_DEVICE_DUTY_DEMAND
requests to join a network PS and specifies a demanded device duty cycle
MESH_PS_NETWORK_DUTY_MASTER
indicates the device is the NWK-DUTY-MASTER (network duty cycle master)
MESH_PS_NETWORK_DUTY_APPLIED_ENTIRE
Mesh PS (Power Save) duty cycle applied rule.
MESH_PS_NETWORK_DUTY_APPLIED_UPLINK
MESH_INIT_CONFIG_DEFAULT()
Type Definitions
typedef mesh_addr_t mesh_event_root_address_t
Root address.
typedef wifi_event_sta_disconnected_t mesh_event_disconnected_t
Parent disconnected information.
typedef wifi_event_ap_staconnected_t mesh_event_child_connected_t
Child connected information.
typedef wifi_event_ap_stadisconnected_t mesh_event_child_disconnected_t
Child disconnected information.
typedef wifi_event_sta_connected_t mesh_event_router_switch_t
New router information.
Enumerations
enum mesh_event_id_t
Enumerated list of mesh event id.
Values:
enumerator MESH_EVENT_STARTED
mesh is started
enumerator MESH_EVENT_STOPPED
mesh is stopped
enumerator MESH_EVENT_CHANNEL_SWITCH
channel switch
enumerator MESH_EVENT_CHILD_CONNECTED
a child is connected on softAP interface
enumerator MESH_EVENT_CHILD_DISCONNECTED
a child is disconnected on softAP interface
enumerator MESH_EVENT_ROUTING_TABLE_ADD
routing table is changed by adding newly joined children
enumerator MESH_EVENT_ROUTING_TABLE_REMOVE
routing table is changed by removing leave children
enumerator MESH_EVENT_PARENT_CONNECTED
parent is connected on station interface
enumerator MESH_EVENT_PARENT_DISCONNECTED
parent is disconnected on station interface
enumerator MESH_EVENT_NO_PARENT_FOUND
no parent found
enumerator MESH_EVENT_LAYER_CHANGE
layer changes over the mesh network
enumerator MESH_EVENT_TODS_STATE
state represents whether the root is able to access external IP network
enumerator MESH_EVENT_VOTE_STARTED
the process of voting a new root is started either by children or by the root
enumerator MESH_EVENT_VOTE_STOPPED
the process of voting a new root is stopped
enumerator MESH_EVENT_ROOT_ADDRESS
the root address is obtained. It is posted by mesh stack automatically.
enumerator MESH_EVENT_ROOT_SWITCH_REQ
root switch request sent from a new voted root candidate
enumerator MESH_EVENT_ROOT_SWITCH_ACK
root switch acknowledgment responds the above request sent from current root
enumerator MESH_EVENT_ROOT_ASKED_YIELD
the root is asked yield by a more powerful existing root. If self organized is disabled and this device is specified to be a root by users, users should set a new parent for this device. if self organized is enabled, this device will find a new parent by itself, users could ignore this event.
enumerator MESH_EVENT_ROOT_FIXED
when devices join a network, if the setting of Fixed Root for one device is different from that of its parent, the device will update the setting the same as its parent’s. Fixed Root Setting of each device is variable as that setting changes of the root.
enumerator MESH_EVENT_SCAN_DONE
if self-organized networking is disabled, user can call esp_wifi_scan_start() to trigger this event, and add the corresponding scan done handler in this event.
enumerator MESH_EVENT_NETWORK_STATE
network state, such as whether current mesh network has a root.
enumerator MESH_EVENT_STOP_RECONNECTION
the root stops reconnecting to the router and non-root devices stop reconnecting to their parents.
enumerator MESH_EVENT_FIND_NETWORK
when the channel field in mesh configuration is set to zero, mesh stack will perform a full channel scan to find a mesh network that can join, and return the channel value after finding it.
enumerator MESH_EVENT_ROUTER_SWITCH
if users specify BSSID of the router in mesh configuration, when the root connects to another router with the same SSID, this event will be posted and the new router information is attached.
enumerator MESH_EVENT_PS_PARENT_DUTY
parent duty
enumerator MESH_EVENT_PS_CHILD_DUTY
child duty
enumerator MESH_EVENT_PS_DEVICE_DUTY
device duty
enumerator MESH_EVENT_MAX
enum mesh_type_t
Device type.
Values:
enumerator MESH_IDLE
hasn’t joined the mesh network yet
enumerator MESH_ROOT
the only sink of the mesh network. Has the ability to access external IP network
enumerator MESH_NODE
intermediate device. Has the ability to forward packets over the mesh network
enumerator MESH_LEAF
has no forwarding ability
enumerator MESH_STA
connect to router with a standlone Wi-Fi station mode, no network expansion capability
enum mesh_proto_t
Protocol of transmitted application data.
Values:
enumerator MESH_PROTO_BIN
binary
enumerator MESH_PROTO_HTTP
HTTP protocol
enumerator MESH_PROTO_JSON
JSON format
enumerator MESH_PROTO_MQTT
MQTT protocol
enumerator MESH_PROTO_AP
IP network mesh communication of node’s AP interface
enumerator MESH_PROTO_STA
IP network mesh communication of node’s STA interface
enum mesh_tos_t
For reliable transmission, mesh stack provides three type of services.
Values:
enumerator MESH_TOS_P2P
provide P2P (point-to-point) retransmission on mesh stack by default
enumerator MESH_TOS_E2E
provide E2E (end-to-end) retransmission on mesh stack (Unimplemented)
enumerator MESH_TOS_DEF
no retransmission on mesh stack
enum mesh_vote_reason_t
Vote reason.
Values:
enumerator MESH_VOTE_REASON_ROOT_INITIATED
vote is initiated by the root
enumerator MESH_VOTE_REASON_CHILD_INITIATED
vote is initiated by children
enum mesh_disconnect_reason_t
Mesh disconnect reason code.
Values:
enumerator MESH_REASON_CYCLIC
cyclic is detected
enumerator MESH_REASON_PARENT_IDLE
parent is idle
enumerator MESH_REASON_LEAF
the connected device is changed to a leaf
enumerator MESH_REASON_DIFF_ID
in different mesh ID
enumerator MESH_REASON_ROOTS
root conflict is detected
enumerator MESH_REASON_PARENT_STOPPED
parent has stopped the mesh
enumerator MESH_REASON_SCAN_FAIL
scan fail
enumerator MESH_REASON_IE_UNKNOWN
unknown IE
enumerator MESH_REASON_WAIVE_ROOT
waive root
enumerator MESH_REASON_PARENT_WORSE
parent with very poor RSSI
enumerator MESH_REASON_EMPTY_PASSWORD
use an empty password to connect to an encrypted parent
enumerator MESH_REASON_PARENT_UNENCRYPTED
connect to an unencrypted parent/router
enum esp_mesh_topology_t
Mesh topology.
Values:
enumerator MESH_TOPO_TREE
tree topology
enumerator MESH_TOPO_CHAIN
chain topology
enum mesh_event_toDS_state_t
The reachability of the root to a DS (distribute system)
Values:
enumerator MESH_TODS_UNREACHABLE
the root isn’t able to access external IP network
enumerator MESH_TODS_REACHABLE
the root is able to access external IP network
