| Buy List
| | 1 | SYP | 2 X 8 X 8' | $ 5.45 Lowes
| | 6 | Bronze Bushing | 3/8"ID X 1"Long | $ 2.78 Lowes
| | 1 | 3/8-16" Threadded Rod | 3/8 X 36" | $ 3.58 Lowes
| | 1 | 1/4" Round Steel Rod | 1/4 X 36" | $ 2.58 Lowes
| | 4 | 3/8-16 Hex Bolt Anchor | 3/8 X 3-1/2" | $ 2.08 Lowes
| | 2 | 3/8-16 Hex Bolt Ctr Pivot | 3/8 X 3" | $ 2.00 Lowes
| | 2 | 1/4-20 Clinch Nuts | 1/4-20 | $ .19 Lowes
| | 2 | 3/8-16 Nuts | 3/8-16 | $ .07 Lowes
| | 4 | 3/8-16 Tee Nuts | 3/8-16 | $ 1.02 Lowes
| | 1 | 3/8 Ceiling Flange | 3/8-16 | $ 3.78 Lowes
| | 1 | 10mm Thrust Bearing | 10mm ID | $ 7.19 Amazon
| | 4 | Conveyor Skate Wheels | 1/4" Bore 1-15/16" | $ 9.70 Amazon
|
|

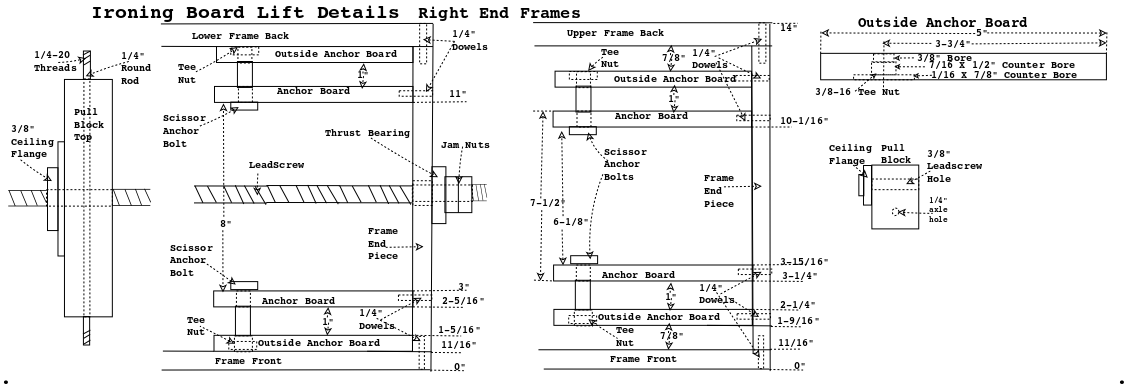

| Cut List
| | 2>4 | SYP | 11/16 X 1-3/4 X 35-1/2 | Frame Sides
| | 4 | SYP | 1 X 1-1/2 X 28 | Scissors
| | 2>4 | SYP | 11/16 X 1-3/4 X 12-3/4 | Frame Ends
| | 2 | SYP | 1-1/2 X 1-1/2 X 7-1/2 | Cross Braces
| | 1 | SYP | 1-1/2 X 1-3/4 X 7-1/2 | Pull Block
| | 6 | SYP | 11/16 X 1-3/4 X 5 | Anchor Board
| | 4 | SYP | 5/8 X 1-3/4 X 5 | Outside Anchor Board
| | 2 | 5/8 | 5/8 X 1-3/4 X 2 | Hi Anchors
| | 1 | 1/4 Rod | 1/4 X 12 | 1/4 Axle Tapped end
| | 1 | 1/4 Rod | 1/4 X 14-1/16 | 1/4 Axle
| | 1 | 3/8 Rod | 3/8 X 35" | Lead Screw
|
|
