WiFi API
From:https://espressif-docs.readthedocs-hosted.com/projects/arduino-esp32/en/latest/api/wifi.html
About
The Wi-Fi API provides support for the 802.11b/g/n protocol driver. This API
includes:
- Station mode (STA mode or Wi-Fi client mode). ESP32 connects to an
access point
- AP mode (aka Soft-AP mode or Access Point mode). Devices connect to the
ESP32
- Security modes (WPA2, WPA3 etc.)
- Scanning for access points
Working as AP
In this mode, the ESP32 is configured as an Access Point (AP) and it’s capable
of receiving incoming connections from other devices (stations) by providing a
Wi-Fi network.
This mode can be used for serving an HTTP or HTTPS server inside the ESP32, for
example.
Working as STA

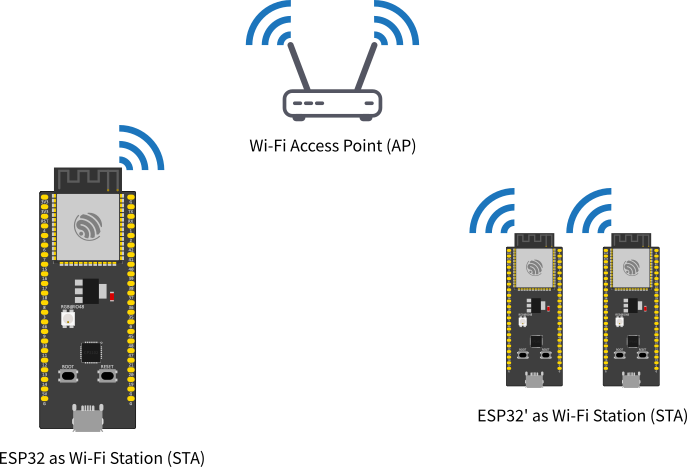

The STA mode is used to connect the ESP32 to a Wi-Fi network, provided by an Access Point.
This is the mode to be used if you want to connect your project to the Internet.
API Description
Here is the description of the WiFi API.
Common API
Here are the common APIs that are used for both modes, AP and STA.
useStaticBuffers
/*F********************************************************************
* set the memory allocation mode for the Wi-Fi buffers.
**********************************************************************/
static void
useStaticBuffers( bool bufferMode );
Set true to use the Wi-Fi buffers memory allocation as static
Set false to set the buffers memory allocation to dynamic.
The use of dynamic allocation is recommended to save memory and reduce resources
usage. However, the dynamic performs slightly slower than the static allocation.
Use static allocation if you want to have more performance and if your
application is multi-tasking.
By default, the memory allocation will be set to dynamic if
this function is not being used.
setDualAntennaConfig
/*F********************************************************************
* Configures the Dual antenna functionallity. This function should be used
only on the ESP32-WROOM-DA module or any other ESP32 with
RF switch.
**********************************************************************/
bool
setDualAntennaConfig( uint8_t gpio_ant1, uint8_t gpio_ant2
, wifi_rx_ant_t rx_mode, wifi_tx_ant_t tx_mode );
gpio_ant1 Configure the GPIO number for the antenna 1 connected to the RF
switch (default GPIO2 on ESP32-WROOM-DA)
gpio_ant2 Configure the GPIO number for the antenna 2 connected to the RF
switch (default GPIO25 on ESP32-WROOM-DA)
rx_mode Set the RX antenna mode. See wifi_rx_ant_t for the options.
tx_mode Set the TX antenna mode. See wifi_tx_ant_t for the options.
Return true if the configuration was successful.
For the rx_mode you can use the following configuration:
WIFI_RX_ANT0 Selects the antenna 1 for all RX activity.
WIFI_RX_ANT1 Selects the antenna 2 for all RX activity.
WIFI_RX_ANT_AUTO Selects the antenna for RX automatically.
For the tx_mode you can use the following configuration:
WIFI_TX_ANT0 Selects the antenna 1 for all TX activity.
WIFI_TX_ANT1 Selects the antenna 2 for all TX activity.
WIFI_TX_ANT_AUTO Selects the antenna for TX automatically.
WiFiAP
The WiFiAP is used to configure and manage the Wi-Fi as an Access Point. This is
where you can find the related functions for the AP.
Basic Usage
/*F********************************************************************
* start the Wi-Fi as an Access Point.
**********************************************************************/
WiFi.softAP( ssid, password );
Please see the full WiFiAP example in: ap example .
AP Configuration
softAP
/*F********************************************************************
* configure the Wi-Fi AP characteristics:
**********************************************************************/
bool
softAP( const char *ssid, const char *passphrase = NULL, int channel = 1
, int ssid_hidden = 0, int max_connection = 4, bool ftm_responder = false);
Where:
ssid: sets the Wi-Fi network SSID.
passphrase: sets the Wi-Fi network password. If the network is open, set
as NULL.
channel: configures the Wi-Fi channel.
ssid_hidden: sets the network as hidden.
max_connection: sets the maximum number of simultaneous connections.
Default is 4.
ftm_responder: sets the Wi-Fi FTM responder feature.
Only for ESP32-S2 and ESP32-C3 SoC!
Return true if the configuration was successful.
softAPConfig
/*F********************************************************************
* configure the IP as static (fixed) as well as the gateway and subnet.
**********************************************************************/
bool
softAPConfig( IPAddress local_ip, IPAddress gateway, IPAddress subnet );
Where:
local_ip: sets the local IP address.
gateway: sets the gateway IP.
subnet: sets the subnet mask.
Returns
true: if the configuration is successful.
AP Connection
softAPdisconnect
/*F********************************************************************
* force the AP disconnection.
**********************************************************************/
bool
softAPdisconnect( bool wifioff = false );
Where:
wifioff: sets the Wi-Fi off if true .
The function will return true if the configuration is successful.
softAPgetStationNum
/*F********************************************************************
* returns the number of clients connected to the AP.
**********************************************************************/
uint8_t
softAPgetStationNum();
softAPIP
/*F********************************************************************
* get the AP IPv4 address.
**********************************************************************/
IPAddress
softAPIP();
The function will return the AP IP address in IPAddress format.
softAPBroadcastIP
/*F********************************************************************
* get the AP IPv4 broadcast address.
**********************************************************************/
IPAddress
softAPBroadcastIP();
Returns the AP broadcast address in IPAddress format.
softAPNetworkID
/*F********************************************************************
* Get the softAP network ID.
**********************************************************************/
IPAddress
softAPNetworkID();
Returns the AP network address in IPAddress format.
softAPSubnetCIDR
/*F********************************************************************
* Get the softAP subnet CIDR.
**********************************************************************/
uint8_t
softAPSubnetCIDR();
softAPenableIpV6
/*F********************************************************************
* enable the IPv6 support.
**********************************************************************/
bool
softAPenableIpV6();
Returns true if the configuration is successful.
softAPIPv6
/*F********************************************************************
* get the IPv6 address.
**********************************************************************/
softAPIPv6();
Returns the AP IPv6 address in IPv6Address format.
softAPgetHostname
/*F********************************************************************
* get the AP hostname.
**********************************************************************/
const char*
softAPgetHostname();
softAPsetHostname
/*F********************************************************************
* set the AP hostname.
**********************************************************************/
bool
softAPsetHostname( const char * hostname );
Where:
hostname sets the device hostname.
Returns: true if the configuration is successful.
softAPmacAddress
/*F********************************************************************
* define the AP MAC address.
**********************************************************************/
uint8_t*
softAPmacAddress( uint8_t* mac );
Where:
mac sets the new MAC address.
/*F********************************************************************
* get AP MAC address
**********************************************************************/
softAPmacAddress( void );
softAPSSID
/*F********************************************************************
* get the AP SSID.
**********************************************************************/
String
softAPSSID( void ) const;
Returns the AP SSID.
WiFiSTA
/*F********************************************************************
* The WiFiSTA is used to configure and manage the Wi-Fi as Station.
The related functions for the STA are here.
**********************************************************************/
Basic Usage
The following code shows the basic usage of the WifiSTA functionality.
WiFi.begin( ssid, password );
Where the ssid and password are for the network you want to connect the ESP32.
To check if the connection is successful, you can use:
WiFi.status() != WL_CONNECTED)
{
delay( 500 );
Serial. print(".");
}
After a successful connection, you can print the IP address given by the network.
Serial.println( "IP address: " );
Serial.println( WiFi. localIP() );
Please see the full example of the WiFiSTA in: sta example .
STA Configuration
begin
/*F********************************************************************
* Functions begin are used to configure and start the Wi-Fi.
**********************************************************************/
begin( const char *ssid, const char *passphrase = NULL, int32_t channel = 0
, const uint8_t* bssid = NULL, bool connect = true);
Where:
ssid: sets the AP SSID.
passphrase: sets the AP password. Set as NULL for open networks.
connect: sets true to connect to the configured network automatically.
/*F********************************************************************
*
**********************************************************************/
begin( char* ssid, char *passphrase = NULL, int32_t channel = 0
, const uint8_t* bssid = NULL, bool connect = true);
Where:
ssid: sets the AP SSID.
passphrase: sets the AP password. Set as for open networks.
channel: sets the Wi-Fi channel.
bssid: sets the AP BSSID.
connect: sets true to connect to the configured network automatically.
/*F********************************************************************
* start the connection after being configured.
**********************************************************************/
begin();
/*F********************************************************************
* configure Wi-Fi. After configuring, you can call function begin to start the
Wi-Fi process.
**********************************************************************/
config()
/*F********************************************************************
*
**********************************************************************/
bool
config( IPAddress local_ip, IPAddress gateway, IPAddress subnet
, IPAddress dns1 = (uint32_t)0x00000000
, IPAddress dns2 = (uint32_t)0x00000000);
Where:
local_ip: sets the local IP.
gateway: sets the gateway IP.
subnet: sets the subnet mask.
dns1: sets the DNS.
dns2: sets the DNS alternative option.
Returns: true if the configuration is successful.
The IPAddress format is defined by 4 bytes as described here:
IPAddress( uint8_t first_octet, uint8_t second_octet, uint8_t third_octet
, uint8_t fourth_octet);
Example:
IPAddress local_ip( 192, 168, 10, 20);
See the WiFiClientStaticIP.ino for more details on how to use this feature.
STA Connection
reconnect
/*F********************************************************************
* Function used to reconnect the Wi-Fi connection.
**********************************************************************/
bool
reconnect();
disconnect
/*F********************************************************************
* Function to force disconnection.
**********************************************************************/
bool
disconnect( bool wifioff = false, bool eraseap = false);
Where:
- wifioff use true to turn the Wi-Fi radio off.
- eraseap use true to erase the AP configuration from the NVS memory.
Return: true: if the configuration is successful.
isConnected
/*F********************************************************************
* Function used to get the connection state.
**********************************************************************/
bool
isConnected();
Return: connection state.
setAutoConnect
/*F********************************************************************
* Function is deprecated.
**********************************************************************/
getAutoConnect
/*F********************************************************************
* Function is deprecated.
**********************************************************************/
setAutoReconnect
/*F********************************************************************
* Function used to set the automatic reconnection if the connection is lost.
**********************************************************************/
bool
setAutoReconnect( bool autoReconnect );
Where:
- autoConnect is set to true to enable this option.
getAutoReconnect
/*F********************************************************************
* Function used to get the automatic reconnection if the connection is lost.
**********************************************************************/
bool
getAutoReconnect();
Return: true if this setting is enabled.
setMinSecurity
/*F********************************************************************
* set the minimum security for AP to be considered connectable.
**********************************************************************/
bool
setMinSecurity( wifi_auth_mode_t minSecurity );
Where:
- minSecurity is the minimum security for AP to be considered connectable.
Default is WIFI_AUTH_WPA2_PSK .
WiFiMulti
The WiFiMulti allows you to add more than one option for the AP connection while
running as a station.
To add the AP, use the following function. You can add multiple AP’s and this
library will handle the connection.
/*F********************************************************************
*
**********************************************************************/
bool
addAP( const char *ssid, const char *passphrase = NULL);
After adding the AP’s, run by the following function.
/*F********************************************************************
*
**********************************************************************/
uint8_t
run( uint32_t connectTimeout= 5000 );
To see how to use the WiFiMulti , take a look at the WiFiMulti.ino example
available.
WiFiScan
To perform the Wi-Fi scan for networks, you can use the following functions:
Start scan WiFi networks available.
/*F********************************************************************
*
**********************************************************************/
int16_t
scanNetworks( bool async = false, bool show_hidden = false
, bool passive = false, uint32_t max_ms_per_chan = 300
, uint8_t channel = 0);
Called to get the scan state in Async mode.
/*F********************************************************************
*
**********************************************************************/
int16_t
scanComplete();
Delete last scan result from RAM.
/*F********************************************************************
*
**********************************************************************/
void
scanDelete();
Loads all infos from a scanned wifi in to the ptr parameters.
/*F********************************************************************
*
**********************************************************************/
bool
getNetworkInfo( uint8_t networkItem, String &ssid, uint8_t
&encryptionType, int32_t & RSSI, uint8_t* & BSSID
, int32_t &channel);
To see how to use the WiFiScan , take a look at the WiFiScan.ino example
available.
Examples
Wi-Fi AP Example
/*H*******************************************************
WiFiAccessPoint.ino creates a WiFi access point and provides a web server on it.
Steps:
1. Connect to the access point "yourAp"
2. Point your web browser to http://192.168.4.1/H to turn the LED on or
http://192.168.4.1/L to turn it off
OR
Run raw TCP "GET /H" and "GET /L" on PuTTY terminal with 192.168.4.1 as IP
address and 80 as port
Created for arduino-esp32 on 04 July, 2018
by Elochukwu Ifediora (fedy0)
********************************************************/
#include <WiFi.h>
#include <WiFiClient.h>
#include <WiFiAP.h>
//************************* DEFINES ************************************
#define BAUD 9600
#define LED_BUILTIN 2
//************************* PROTOTYPES ************************************
//************************* VARIABLES ************************************
WiFiServer server( 80 );
// SET TEST LED GPIO PIN OR COMMENT THIS LINE OUT IF BOARD HAS BUILT-IN LED
// SET THESE TO YOUR DESIRED CREDENTIALS.
const char *ssid = "yourAP";
const char *password = "yourPassword";
int value = 0;
/*F********************************************************************
*
**********************************************************************/
void
setup()
{
pinMode( LED_BUILTIN, OUTPUT );
Serial.begin( BAUD );
Serial.println();
Serial.println( "Configuring access point...");
// CAN REMOVE PASSWORD PARAMETER IF YOU WANT AP TO BE OPEN
WiFi.softAP( ssid, password );
IPAddress myIP = WiFi.softAPIP();
Serial.print( "AP IP address: " );
Serial.println( myIP );
server.begin();
Serial.println( "Server started" );
}
/*F********************************************************************
*
**********************************************************************/
void
loop()
{
WiFiClient client = server.available();
if( client ) // LISTEN FOR INCOMING CLIENTS
{
Serial.println( "New Client."); // IF YOU GET A CLIENT,
String currentLine = ""; // PRINT MESSAGE OUT SERIAL PORT
// MAKE A STRING TO HOLD INCOMING DATA FROM CLIENT
while( client.connected() )
{ // loop while the client's connected
if( client.available() )
char c = client.read(); // READ A BYTE, THEN
Serial.write( c ); // PRINT IT OUT SERIAL MONITOR
if( c == '\n')
{ // BYTE IS A NEWLINE CHARACTER
// IF CURRENT LINE IS BLANK, YOU GOT TWO NEWLINE CHARACTERS IN A ROW
// THAT'S THE END OF THE CLIENT HTTP REQUEST, SO SEND A RESPONSE:
if (currentLine.length() == 0)
{
// HTTP HEADERS ALWAYS START WITH A RESPONSE CODE (E.G. HTTP/1.1 200 ok)
// AND A CONTENT-TYPE SO THE CLIENT KNOWS WHAT'S COMING, THEN A BLANK LINE:
println( "HTTP/1.1 200 OK" );
client.println( "Content-type:text/html" );
client.println();
// CONTENT OF HTTP RESPONSE FOLLOWS HEADER:
client.print( "Click <a href= \"/H \">here</a> turn on LED.<br>");
client.print( "Click <a href= \"/L \">here</a> to turn OFF the LED.<br>");
client.println();// HTTP RESPONSE ENDS WITH BLANK LINE:
break; // BREAK OUT OF WHILE LOOP:
}
else
{ // if you got a newline, then clear currentLine:
currentLine = "";
}
}
else if( c != '\r')
{ // GOT ANYTHING ELSE BUT A CARRIAGE RETURN CHARACTER,
currentLine += c; // ADD IT TO THE END OF THE CURRENTlINE
}
// CHECK TO SEE IF CLIENT REQUEST WAS "GET /H" OR "GET /L":
if( currentLine.endsWith( "GET /H"))
{
digitalWrite( LED_BUILTIN, HIGH); // GET /H TURNS LED ON
}
if( currentLine.endsWith( "GET /L"))
{
digitalWrite( LED_BUILTIN, LOW); // GET /L TURNS LED OFF
}
}
}
client.stop(); // CLOSE CONNECTION:
Serial.println( "Client Disconnected.");
}
}
Wi-Fi STA Example
/*H*******************************************************
* This sketch sends data via HTTP GET requests to data.sparkfun.com service.
* You need to get streamId and privateKey at data.sparkfun.com and paste them
* below. Or just customize this script to talk to other HTTP servers.
********************************************************/
#include <WiFi.h>
//************************* DEFINES ************************************
typedef unsigned long ulong;
//************************* PROTOTYPES ************************************
//************************* VARIABLES ************************************
const char *ssid = "your-ssid";
const char *password = "your-password";
const char *host = "data.sparkfun.com";
const char *streamId = "....................";
const char *privateKey = "....................";
/*F********************************************************************
*
**********************************************************************/
void
setup()
{
Serial.begin( BAUD );
delay( 10 );
Serial.println();
Serial.println();
Serial.print( "Connecting to " );
Serial.println( ssid );
WiFi.begin( ssid, password ); // START BY CONNECTING TO A WiFi NETWORK
while( WiFi.status() != WL_CONNECTED)
{
delay( 500 );
Serial.print( "." );
}
Serial.println( "" );
Serial.println( "WiFi connected");
Serial.println( "IP address: ");
Serial.println( WiFi.localIP());
}
/*F********************************************************************
*
**********************************************************************/
void
loop()
{
delay( 5000 );
++value;
Serial.print( "connecting to ");
Serial.println( host );
WiFiClient client; // USE WiFiClient CLASS TO CREATE TCP CONNECTIONS
const int httpPort = 80;
if( !client.connect( host, httpPort))
{ // CLIENT CONNECT FAILED???
Serial.println( "connection failed");
return;
}
String url = "/input/"; // CREATE URI FOR REQUEST
url += streamId;
url += "?private_key=";
url += privateKey;
url += "&value=";
url += value;
Serial.print( "Requesting URL: ");
Serial.println( url );
// SEND REQUEST TO SERVER
client.print( String( "GET ") + url + " HTTP/1.1 \r\n" + "Host: " + host "
"+ " \r\n" + "Connection: close \r\n\r\n");
ulong timeout = millis();
while( client.available() == 0)
{
if( millis() - timeout > 5000 )
{
Serial.println( ">>> Client Timeout !");
client.stop();
return;
}
}
while( client.available() )
{ // READ ALL LINES OF REPLY FROM SERVER AND PRINT TO SERIAL
String line = client.readStringUntil( '\r');
Serial.print( line );
}
Serial.println();
Serial.println( "closing connection");
}
