Wi-Fi Smart Configuration on ESP32 controller
Previously in “Scanning of WiFi on ESP32 controller”, we used WiFi class to
connect to a WiFi network “WiFi.begin(ssid, password)”. Here we use “hard-coded”
ssid and password. It is really inconvenient when we bring our ESP32 to another
WiFi network, we have to modify ssid and password according to the new network,
recompile and flash new code. So in this tutorial, “Wi-Fi Smart Configuration on
ESP32 controller” there is a technique to overcome this called
“SmartConfiguration”. In order to do SmartConfiguration, you need a smartphone
or tablet (Android or iOS) that is connected to WiFi network (which you want
ESP32 to connect to).
Installed a special application like ESP8266 SmartConfig Arduino App”
(at the Google App Store) (this is for ESP8266 but you can use it for ESP32):
The library to use will be:
#include "WiFi.h"
Set ESP32 to Station mode (To run SmartConfig it must be set to Station mode)
and start smart configuration.
WiFi.mode( WIFI_AP_STA );
WiFi.beginSmartConfig();
Waiting for smart configuration packet from mobile and Checking smart
configuration done or not.
while( !WiFi.smartConfigDone() )
Then wait for the wifi to connect to AP.
while( WiFi.status() != WL_CONNECTED )
From smartphone (connected to WiFi) do:
Open the application (ESP8266 SmartConfig)-> fill ssid and password and then
press the Confirm button.
Wi-Fi Smart Configuration on ESP32 controller
Load Arduino project WiFiSmartConfig,
Wi-Fi Smart Configuration on ESP32 controller1

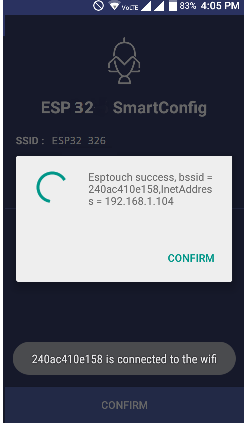

From Terminal SmartConfig done, ESP32 join WIFi network with IP address
CC3000 Smart Config - transmitting SSID and keyphrase
13 comments 2:54 PM
Initially TI clearly documented how the SSID and password were transmitted to a
CC3000 enabled device in their "CC3000 First Time Configuration" document.
However with release 1.10 they changed the approach to one called Smart Config
and now document the API but no longer explain what is happening at the network
level. Here I cover this missing information for the new approach.
So let's start at the start - we have a problem - we want to send two pieces of
information, an SSID and the keyphrase, from one party that is already a member
of the wifi network to an external party who can monitor all the encrypted wifi
traffic but who cannot decrypt it.
Someone who cannot decrypt the wifi traffic can still see quite a lot of
information, e.g. they can see the source and receiver MAC addresses of every
packet sent.
They can also see the length of the data portion of the packets. The encryption
affects that size of the packets sent but in a consistent manner, e.g. if one
sends n bytes of data in a given packet then the encrypted packet will contain
(n + x) bytes where x is constant across all packets.
So the solution to our problem is to encode the information in the size of the
packets sent (the actual content is irrelevant).
The party on the secured network just sends UDP packets with particular lengths
to another party on the network. That the other party is not interested in
receiving the packets is not important.
The external party cannot tell directly that a packet that it is looking at
contains UDP data, however the packets still include basic type information that
allows many packets to be excluded from consideration, e.g. any packet that is
not of 802.11 subtype "QoS data" can be excluded.
As the external party does not know in advance which wifi channel to look at or
which source and receiver address pair to pay attention to one must, in addition
to the underlying data, i.e. encoded SSID etc., send regular repeating patterns
that allow this data to be spotted.
We convert our SSID and keyphrase into a sequence of tag values, string lengths,
nibble values and separators values and then encode and transmit all these
values as packet lengths.
Let's look in detail at the values sent.
We use two tags - an SSID tag with value 1399 and a keyphrase tag with value
1459 and one standard separator sequence consisting of two values - 3 followed
by 23.
And we use two constants, L with value 28 and C with value 593, that we will see
used below.
So for the SSID the following sequence of values are generated in this order:
The SSID tag 1399.
L plus the length of the SSID in bytes.
The two separator values 3 and 23.
Then we loop over each byte of the SSID and generate a set of four values
for each:
Two values - one for each nibble of the byte, as described in the next
section.
Followed by the two separator values 3 and 23.
Values are generated in an identical fashion for the keyphrase (except that the
keyphrase tag 1459 is used in place of the SSID tag).
Note: the TI Android library and Java applet library generate values as
described above, oddly the TI iOS library produces a slightly different ordering
(which clearly doesn't affect the CC3000's ability to decode the data). This
difference can be seen in the example data length dumps shown latter.
Once we have all these values then UDP packets, each with an amount of data
corresponding to one of these values, are sent from the machine running the
Smart Config application, i.e. the one that has generated the values just
described, to another system on the same network (currently always the network's
default gateway).
The values are sent repeatedly until the external party, i.e. the CC3000 enabled
device, successfully sifts them out from all the other network traffic and uses
them to connect to the network, at which point it advertises its presence on the
network in a manner that the transmitting application can detect and which
causes it to stop transmitting.
Note that the range of packet lengths that need to be supported places a lower
bound on the maximum transmission unit (MTU) for the network. Currently the
Smart Config client application expects the MTU to be 1500 or greater (this is a
reasonable expectation on any normal network).
The TI Smart Config reference implementation resends the full set of UDP packets
corresponding to the SSID and keyphrase repeatedly. The TI Java applet library
pauses 100ms after each complete transmission of the full set of values, the
Android and iOS libraries do not bother pausing.
Encoding the characters of the SSID or keyphrase.
If an SSID consists of n characters 0 to n - 1 then we generate 2n corresponding
values.
Note: according to IEEE standard 802.11i-2004, Annex H.4.1, users may enter keys
as a string of 64 hexadecimal digits (or alternatively as a passphrase of
printable ASCII characters). Presumably WEP and WPA specify similar restrictions.
The SSID must be a sequence of between 1 and 32 bytes, there is no mandated
character set (more details in this StackOverflow answer) and how the SSID is
displayed is left up to the end user application (however many routers
apparently only accept printable ASCII characters for the SSID).
So if we assume ASCII characters encoded as 8 bit values then each value
consists of a high and low nibble.
E.g. 'M' in ASCII is hex 0x4D, the high nibble is 0x4 and the lower nibble is 0xD.
If we maintain a sequence number starting from 0 and increment it each time we
generate a value then for character i of the SSID, consisting of a high and low
nibble Hi and Li, we generate two values with sequence number 2i and (2i + 1)
respectively. Each of these values has a high and low nibble calculated as follows:
| Seq | High | Low
|
| 2i | Li-1 ^ (2i % 16) | Hi
|
| 2i+1 | Hi ^ ((2i + 1) % 16) | Li
|
Note that the value containing the high nibble of i is generated before the one
containing the low nibble of i. And note that caret, i.e. '^', is used here to
mean XOR, rather than power of.
The following shows how the SSID "MyPlace" would be split up into high and low
nibbles:
| 'M' | 'y' | 'P' | 'l' | 'a' | 'c' | 'e'
|
| Hex: | 0x4D | 0x79 | 0x50 | 0x6C | 0x61 | 0x63 | 0x65
|
| Nibbles:
| | 0x4 | 0xD | 0x7 | 0x9 | 0x5 | 0x0 | 0x6 | 0xC | 0x6 | 0x1 | 0x6 | 0x3 | 0x6 | 0x5
|
| H0 | L0 | H1 | L1 | H2 | L2 | H3 | L3 | H4 | L4 | H5 | L5 | H6 | L6
|
For each 4 bit nibble we generate a value whose lower 4 bits consist of the
nibble itself and whose higher 4 bits consist of the current sequence number
XORed with the value of the previously used nibble value. We then add the
constant C mentioned above, i.e. 593, to each value generated in this way and
this becomes the length of the packet that encodes such a value.
Note that the 4 bit constraint means that we only use the lower 4 bits of the
current sequence number, i.e. if the sequence number S is above 15 then we use
S % 16.
This results in the generation of 14 values for the 7 character of the SSID
name "MyPlace" like so:
C
h
a
r
|
S
e
q
| → | Hi | Lo | → | Byte | Hi | Lo | → | Hi | Lo | → | Sum | → | Len
|
| 'M'
| 0 | | 0x0 | Ho | | 0x4D | 0x0 | 0x4 | | 0x0 | 0x4 | | 0x04 + 593 | | 597
|
| 1 | | H0 ^ 0x1 | L0 | | 0x4 ^ 0x1 | 0xD | | 0x5 | 0xD | | 0x5D + 593 | | 686
|
| 'y'
| 2 | | L0 ^ 0x2 | H1 | | 0x79 | 0xD ^ 0x2 | 0x7 | | 0xF | 0x7 | | 0xF7 + 593 | | 840
|
| 3 | | H1 ^ 0x3 | L1 | | 0x7 ^ 0x3 | 0x9 | | 0x4 | 0x9 | | 0x49 + 593 | | 666
|
| 'P'
| 4 | | L1 ^ 0x4 | H2 | | 0x50 | 0x9 ^ 0x4 | 0x5 | | 0xD | 0x5 | | 0xD5 + 593 | | 806
|
| 5 | | H2 ^ 0x5 | L2 | | 0x5 ^ 0x5 | 0x0 | | 0x0 | 0x0 | | 0x00 + 593 | | 593
|
| 'l'
| 6 | | L2 ^ 0x6 | H3 | | 0x6C | 0x0 ^ 0x6 | 0x6 | | 0x6 | 0x6 | | 0x66 + 593 | | 695
|
| 7 | | H3 ^ 0x7 | L3 | | 0x6 ^ 0x7 | 0xC | | 0x1 | 0xC | | 0x1C + 593 | | 621
|
| 'a'
| 8 | | L3 ^ 0x8 | H4 | | 0x61 | 0xC ^ 0x8 | 0x6 | | 0x4 | 0x6 | | 0x46 + 593 | | 663
|
| 9 | | H4 ^ 0x9 | L4 | | 0x6 ^ 0x9 | 0x1 | | 0xF | 0x1 | | 0xF1 + 593 | | 834
|
| 'c'
| 10 | | L4 ^ 0xA | H5 | | 0x63 | 0x1 ^ 0xA | 0x6 | | 0xB | 0x6 | | 0xB6 + 593 | | 775
|
| 11 | | H5 ^ 0xB | L5 | | 0x6 ^ 0xB | 0x3 | | 0xD | 0x3 | | 0xD3 + 593 | | 804
|
| 'e'
| 12 | | L5 ^ 0xC | H6 | | 0x65 | 0x3 ^ 0xC | 0x6 | | 0xF | 0x6 | | 0xF6 + 593 | | 839
|
| 13 | | H6 ^ 0xD | L6 | | 0X6 ^ 0xD | 0x5 | | 0xB | 0x5 | | 0xB5 + 593 | | 774
|
The keyphrase is encoded in the same way, note that the sequence number starts again from 0 when encoding the keyphrase, i.e. the value is not carried over from encoding the SSID.
Currently Smart Config enforces an upper limit of 32 characters on the keyphrase length, i.e. shorter than the maximum length allowed by the relevant WPA2 standard.
I find the approach used to actively leak information from a secure wireless network to an external party (that does not have the relevant network keyphrase) interesting and would like to hear if anyone has come across it before or whether it is novel? I asked about this on Stack Overflow but have since moved the question to the sister site crypto.stackexchange.com after people suggested it was more appropriate there.
Update Oct 21, 2013: I've now got at least one good answer. In a paper from 2007 by P. Martin called "Covert channels in secure wireless networks" you can find section 4.4.2 "UDP Packet Size vs MAC Frame Size Experiment" that essentially describes exactly the process used by Smart Config. The question of patents has come up once or twice in relation to Smart Config (though no one has ever provided pointers to any actual patent applications or granted patent numbers). The answers and other comments on my question would seem to suggest that there's definitely prior art for the fundamental idea behind Smart Config.
Choosing the destination for the UDP packets
The current logic always sends the UDP messages, that encode the SSID etc., to the default gateway address. However it doesn't actually matter what address they're sent to as long as it's the address of another machine on the network that actually exists and is capable of receiving packets. However it makes sense to have decided on a definite address.
The CC3000 doesn't support ad hoc networks so you are never going to get a situation where it is used on a network that doesn't have an access point (AP), and in most normal setups the AP is also the default gateway. However I don't think a default gateway is mandatory (someone can correct me on this?), one can imagine a self contained wifi network where the AP isn't a gateway to anywhere else.
I wonder why TI didn't choose on the address of the AP rather than the default gateway. Even if the two are almost always the same I think an end user is probably likely to have much more luck, if needed, asking Google or their ISP first level technical support how they find the address of their wifi AP than asking about default gateways.
Note: in a network using an AP all traffic goes via the AP, so even if one chose the address of a machine other than the AP the traffic would still be received by the AP and retransmitted by the AP to the destination machine. This doesn't cause an issue if you try it with the CC3000 but it does mean the traffic in pointlessly duplicated.
Further details of the Smart Config library
The sections above cover the heart of how Smart Config works, the following covers details of TI's Smart Config Java applet library that don't immediately seem relevant - they may be left over from the development process and have just never been cleaned out or they may relate to non-default functionality that it's possible to use if a particular CC3000 device is configured in a particular way.
One can set the DatagramSocket used to send the UDP packets to something other than one simply setup to bind to any available port on the local machine.
One can set the port to which the UDP packets are sent to something other than 15000.
One can set the port on which mDNS UDP messages are expected to something other than 5353.
One can set can the timeout, i.e. the time the application waits, for the CC3000 enabled device to connect to something other than 5 minutes.
One can set the number of times all the details are retransmitted before taking a 100ms pause. By default this is 1, i.e. the logic takes a 100ms pause between every full transmission of the details.
One can set the two separators values, i.e. 3 and 23 mentioned above, to different values and more bizarrely set the characters used to make up the packets with these lengths.
These features are available in the library but are never made use of by the TI Smart Config application built on top of this library.
One can also set the network interface of the socket used to listen for mDNS message. However this seems completely pointless as this just affects outgoing multicast datagrams and the relevant logic is only looking for incoming datagrams.
With one exception all of this configurability looks pointless.
It's hard to think of why one might want to specify the bind address of the DatagramSocket used to send the UDP packets.
The machine receiving the packets will ignore them and so choosing a particular port seems irrelevant and with encrypted network traffic one cannot see port information so it shouldn't be relevant to the CC3000 device's ability to detect the relevant traffic.
mDNS always uses port 5353 and given how mDNS is used it's hard to imagine that port number being changed on a particular network.
The timeout is fairly arbitrary, 5 minutes seems extremely long so it does seem reasonable to adjust it down if one really cares about this.
Being able to set the number of full retransmits before a pause has no obvious benefits.
That leaves us with being able to change the separator lengths. Perhaps this is configurable on CC3000 devices. I can't see a reason why you'd want to change the default values. And if one did I suspect one would have to be careful what values one chose. The tag values for SSID and keyphrase, and the constants C and L mentioned above, along with the two separator length values, all seem to have been chosen to ensure no overlap in values between one kind of thing and another, the current setup means no packet length encoding a nibble of an SSID character or keyphrase will end up with a length equal to the tags or separator values.
Note: the port number 15000 mentioned above has not been registered by TI and actually belongs to a legitimate service called "hydap" which has been registered by HYPACK Inc. with IANA. This shouldn't be an issue for anyone.
Multicast mDNS
Above you saw some mention of mDNS. This is involved in detecting that a CC3000 device has successfully connected to the network and is discussed in more detail in this post.
What character set does the CC3000 use?
The Smart Config Java applet library stores the SSID etc. as standard Java strings, i.e. sequences of Unicode characters. It converts back and forward between these strings and arrays of bytes at various points, but takes no care of character sets, e.g. when it calls String.getBytes() it always uses the form that uses the platform's default character set. This will work on most systems, including pretty much everything in the US and Western Europe, but will obviously be an issue elsewhere. The CC3000 presumably has a fixed character set and this should be used explicitly in the library when converting between characters and bytes.
Update: experimentation shows that while the TI Java applet library just uses the default character set of the machine it's running on, when converting to and from bytes, the TI iOS and Android apps both seem to consistently use UTF-8.
Packet length dumps from the TI Smart Config applications
If any of the above wasn't too clear, hopefully this section will help with a practical example of the packet lengths generated by the TI Smart Config applications when sending the SSID "MyPlace" and the password "LetMeIn".
The first dump
shows the packet lengths generated by the Android and Java applet applications. The first colum just shows the UNIX time the packet was sent at, the second column shows the length of the packet and this is then followed by an indication of what the length of packet is encoding.
1381084544.032552000 1399 <----- SSID tag
1381084544.033572000 35 <----- SSID length + 28
1381084544.033589000 3 <--+-- separator
1381084544.033594000 23 <--'
1381084544.033667000 597 <----- 'M' hi-nibble
1381084544.033675000 3 <--+-- separator
1381084544.033723000 23 <--'
1381084544.034369000 686 <----- 'M' lo-nibble
1381084544.035385000 3 <--+-- separator
1381084544.036271000 23 <--'
1381084544.036448000 840 <----- 'y' hi-nibble
1381084544.036467000 3 <--+-- separator
1381084544.036481000 23 <--'
1381084544.036541000 666 <----- 'y' lo-nibble
1381084544.037262000 3 <--+-- separator
1381084544.037271000 23 <--'
1381084544.037496000 806 <----- 'P' hi-nibble
1381084544.038019000 3 <--+-- separator
1381084544.038032000 23 <--'
1381084544.038097000 593 <----- 'P' lo-nibble
1381084544.043096000 3 <--+-- separator
1381084544.044209000 23 <--'
1381084544.044785000 695 <----- 'l' hi-nibble
1381084544.045422000 3 <--+-- separator
1381084544.045855000 23 <--'
1381084544.048359000 621 <----- 'l' lo-nibble
1381084544.049327000 3 <--+-- separator
1381084544.049347000 23 <--'
1381084544.049406000 663 <----- 'a' hi-nibble
1381084544.049412000 3 <--+-- separator
1381084544.049416000 23 <--'
1381084544.049568000 834 <----- 'a' lo-nibble
1381084544.050052000 3 <--+-- separator
1381084544.050067000 23 <--'
1381084544.050808000 775 <----- 'c' hi-nibble
1381084544.051463000 3 <--+-- separator
1381084544.052082000 23 <--'
1381084544.055415000 804 <----- 'c' lo-nibble
1381084544.056319000 3 <--+-- separator
1381084544.056334000 23 <--'
1381084544.056398000 839 <----- 'e' hi-nibble
1381084544.056404000 3 <--+-- separator
1381084544.056407000 23 <--'
1381084544.056644000 774 <----- 'e' lo-nibble
1381084544.058021000 3 <--+-- separator
1381084544.058034000 23 <--'
1381084544.059236000 1459 <----- passphrase tag
1381084544.059252000 35 <----- passphrase length + 28
1381084544.059255000 3 <--+-- separator
1381084544.059258000 23 <--'
1381084544.059261000 597 <----- 'L' hi-nibble
1381084544.059937000 3 <--+-- separator
1381084544.059949000 23 <--'
1381084544.060043000 685 <----- 'L' lo-nibble
1381084544.060723000 3 <--+-- separator
1381084544.060729000 23 <--'
1381084544.060884000 823 <----- 'e' hi-nibble
1381084544.061407000 3 <--+-- separator
1381084544.061411000 23 <--'
1381084544.061954000 678 <----- 'e' lo-nibble
1381084544.062651000 3 <--+-- separator
1381084544.062709000 23 <--'
1381084544.063217000 616 <----- 't' hi-nibble
1381084544.063696000 3 <--+-- separator
1381084544.063699000 23 <--'
1381084544.064344000 629 <----- 't' lo-nibble
1381084544.064893000 3 <--+-- separator
1381084544.064897000 23 <--'
1381084544.065561000 629 <----- 'M' hi-nibble
1381084544.066131000 3 <--+-- separator
1381084544.066221000 23 <--'
1381084544.066947000 654 <----- 'M' lo-nibble
1381084544.066955000 3 <--+-- separator
1381084544.067371000 23 <--'
1381084544.067491000 679 <----- 'e' hi-nibble
1381084544.067871000 3 <--+-- separator
1381084544.068325000 23 <--'
1381084544.069089000 838 <----- 'e' lo-nibble
1381084544.069097000 3 <--+-- separator
1381084544.069593000 23 <--'
1381084544.069711000 837 <----- 'I' hi-nibble
1381084544.070191000 3 <--+-- separator
1381084544.070656000 23 <--'
1381084544.074244000 842 <----- 'I' lo-nibble
1381084544.074259000 3 <--+-- separator
1381084544.075225000 23 <--'
1381084544.075286000 679 <----- 'n' hi-nibble
1381084544.075291000 3 <--+-- separator
1381084544.075293000 23 <--'
1381084544.075521000 783 <----- 'n' lo-nibble
1381084544.075533000 3 <--+-- separator
1381084544.076058000 23 <--'
-------------------------- No delay on Android, 100ms delay with Java applet library, then repeat from start again.
1381084544.076246000 1399 <----- SSID tag
1381084544.076850000 35 <----- SSID length + 28
...
The output generated
by the TI iOS and Java applet Smart Config applications is identical (except for the noted 100ms delay). However oddly the iOS Smart Config application does not interleave the separator values 3 and 23 between the characters of the SSID and keyphrase, instead it always sends out a sequence of 10 separator value pairs as shown here and then sends out the SSID and keyphrase. So here one can hardly call 3 and 23 separators but I've stuck with this name here:
1381085051.154799000 3 <--+-- separator 1
1381085051.159414000 23 <--'
1381085051.164143000 3 <--+-- separator 2
1381085051.170050000 23 <--'
1381085051.174861000 3 <--+-- separator 3
1381085051.179503000 23 <--'
1381085051.185282000 3 <--+-- separator 4
1381085051.190274000 23 <--'
1381085051.195296000 3 <--+-- separator 5
1381085051.200047000 23 <--'
1381085051.206394000 3 <--+-- separator 6
1381085051.211076000 23 <--'
1381085051.215383000 3 <--+-- separator 7
1381085051.225363500 23 <--'
1381085051.235344000 3 <--+-- separator 8
1381085051.235459000 23 <--'
1381085051.236902000 3 <--+-- separator 9
1381085051.241718000 23 <--'
1381085051.249366000 3 <--+-- separator 10
1381085051.253099000 23 <--'
1381085051.257767000 1399 <----- SSID tag
1381085051.262315500 35 <----- SSID length + 28
1381085051.266864000 597 <----- 'M' hi-nibble
1381085051.273117000 686 <----- 'M' lo-nibble
1381085051.278023500 840 <----- 'y' hi-nibble
1381085051.282930000 666 <----- 'y' lo-nibble
1381085051.291178000 806 <----- 'P' hi-nibble
1381085051.294688000 593 <----- 'P' lo-nibble
1381085051.299266000 695 <----- 'l' hi-nibble
1381085051.308603000 621 <----- 'l' lo-nibble
1381085051.311723000 663 <----- 'a' hi-nibble
1381085051.315706000 834 <----- 'a' lo-nibble
1381085051.321567000 775 <----- 'c' hi-nibble
1381085051.326156000 804 <----- 'c' lo-nibble
1381085051.332654000 839 <----- 'e' hi-nibble
1381085051.337025000 774 <----- 'e' lo-nibble
1381085051.342818000 1459 <----- passphrase tag
1381085051.346519000 35 <----- passphrase length + 28
1381085051.353083000 597 <----- 'L' hi-nibble
1381085051.359196000 685 <----- 'L' lo-nibble
1381085051.362984000 823 <----- 'e' hi-nibble
1381085051.366772000 678 <----- 'e' lo-nibble
1381085051.373192000 616 <----- 't' hi-nibble
1381085051.382117000 629 <----- 't' lo-nibble
1381085051.386131000 629 <----- 'M' hi-nibble
1381085051.390145000 654 <----- 'M' lo-nibble
1381085051.393997000 679 <----- 'e' hi-nibble
1381085051.400047000 838 <----- 'e' lo-nibble
1381085051.404880000 837 <----- 'I' hi-nibble
1381085051.412003000 842 <----- 'I' lo-nibble
1381085051.414365000 679 <----- 'n' hi-nibble
1381085051.420336000 783 <----- 'n' lo-nibble
--------------------------- No delay then repeat from start again.
1381085051.432048500 3 <--+-- separator 1
1381085051.443761000 23 <--'
...
Dumping and decrypting wifi packets using tshark
The above dumps were produced with the command line version of the well known packet analyser tool Wireshark that's called tshark. Wireshark is available for Mac OS X, Windows and Linux. The following shows how I used it to produce these dumps.
First I started it off recording packets before doing anything with the particular TI Smart Config application I was working with like so:
$ tshark -i en0 -I -w output.pcap
Note that the -I flag puts your machine's wifi network interface into monitor mode, this disables standard network access for everything else on the machine while tshark is running but allows tshark to see all the traffic on the network, not just traffic intended for the machine that it's running on. On my Mac putting the network interface into monitor mode works fine but on other platforms this can be far more complicated - I'll discuss this further in a later post.
I then ran the particular Smart Config application on a different machine, i.e. an iPhone, an Android phone or a different desktop machine. I hit the start button that you find in each Smart Config application that tells it to start transmitting the SSID etc., and let it run for a while. There's no requirement to have an actual CC3000 enabled device listening for the data. After a few seconds I killed the tshark process with control-C and hit stop in the Smart Config application.
The resulting network traffic ends up in the file output.pcap, note the size of this file can grow very quickly as we're recording all traffic on a given wifi channel, not just the Smart Config related traffic.
Then we can filter out the Smart Config traffic and dump it out as above like so:
$ tshark -r output.pcap -o 'wlan.enable_decryption:TRUE' \
-Y 'wlan.fc.retry == 0 && !icmp && udp && ip.src == 192.168.1.177 && ip.dst == 192.168.1.1 && udp.dstport == 15000'
-T fields -e frame.time_epoch -e data.len | head -n 512
ip.src must to be changed to the IP address of the device running the Smart Config application, e.g. an iPhone, and ip.dst must be the IP address used as the gateway by the application.
Note that I exclude icmp packets, these are control packets that can contain embedded UDP packets that would be matched by the udp filter. In our case icmp packets are generated to tell us that the port we are sending the packets to is unreachable. With the wlan.fc.retry filter I also exclude retransmitted packets - I'll discuss this more in a later post.
As shown here tshark can actually decrypt the wifi packets (something which a CC3000 enabled device that's waiting for the network password obviously cannot do). Having done so it can then filter the traffic using higher level network terms like the IP protocol, in this case UDP, and IP addresses.
If the option wlan.enable_decryption is set to TRUE, as shown above, tshark will search for the keyphrase necessary to do the decryption in the file ~/.wireshark/80211_keys where it will expect to find something like:
"wpa-pwd","LetMeIn:MyPlace"
Note that the keyphrase comes before the SSID and that storing keys (in plain text, yes) in the file 80211_keys is relatively new to wireshark/tshark. For earlier versions of tshark you may have to specify the key information as a command line option - Google for what works for your version.
However even if it has the keyphrase it can only decrypt the traffic if your pcap file contains the EAPOL packets that are generated when the device designated by ip.src goes through the initial negotiation of a secure connection with the AP. To force my devices to generate such packets I flipped the phones in and out of airplane mode and on my desktops I temporarily disabled and then reenabled wifi. This didn't always seem to work - I don't know if even on being disabled and reenabled a device can sometimes avoid having to renegotiate its connection. One can check if the pcap file contains EAPOL packets like so:
$ tshark -r sc-ios.pcap -Y eapol
You should see about four packets which correspond to your device (check that the displayed MAC addresses match the MAC address of the device).
Obviously the CC3000 cannot decrypt the packets like this - I'll discuss in a later post how it does much the same as we've done here but without having the relevant decryption information.
*******************************************************
Smart Config API Reference Header File
/*F********************************************************************
*
**********************************************************************/
esp8266/include/esp_smartconfig.h
Functions
esp_smartconfig_get_version
/*F********************************************************************
*
**********************************************************************/
const char*
esp_smartconfig_get_version( void )
Get the version of SmartConfig.
Return
SmartConfig version const char.
esp_smartconfig_start
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_smartconfig_start( const smartconfig_start_config_t *config )
Start SmartConfig, config ESP device to connect AP. You need to broadcast information by phone APP. Device sniffer special packets from the air that containing SSID and password of target AP.
Attention
1. This API can be called in station mode.
Attention
2. Can not call esp_smartconfig_start twice before it finish, please call esp_smartconfig_stop first.
Return
ESP_OK: succeed
others: fail
Parameters
config: pointer to smartconfig start configure structure
esp_smartconfig_stop
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_smartconfig_stop( void )
Stop SmartConfig, free the buffer taken by esp_smartconfig_start.
Attention
Whether connect to AP succeed or not, this API should be called to free memory taken by smartconfig_start.
Return
ESP_OK: succeed
others: fail
esp_esptouch_set_timeout
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_esptouch_set_timeout( uint8_t time_s )
Set timeout of SmartConfig process.
Attention
Timing starts from SC_STATUS_FIND_CHANNEL status. SmartConfig will restart if timeout.
Return
ESP_OK: succeed
others: fail
Parameters
time_s: range 15s~255s, offset:45s.
esp_smartconfig_set_type
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_smartconfig_set_type( smartconfig_type_t type )
Set protocol type of SmartConfig.
Attention
If users need to set the SmartConfig type, please set it before calling esp_smartconfig_start.
Return
ESP_OK: succeed
others: fail
Parameters
type: Choose from the smartconfig_type_t.
esp_smartconfig_fast_mode
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_smartconfig_fast_mode( bool enable )
Set mode of SmartConfig. default normal mode.
Attention
1. Please call it before API esp_smartconfig_start.
Attention
2. Fast mode have corresponding APP(phone).
Attention
3. Two mode is compatible.
Return
ESP_OK: succeed
others: fail
Parameters
enable: false-disable(default); true-enable;
esp_smartconfig_get_rvd_data
/*F********************************************************************
*
**********************************************************************/
esp_err_t
esp_smartconfig_get_rvd_data( uint8_t *rvd_data, uint8_t len )
Get reserved data of ESPTouch_v2.
Return
ESP_OK: succeed
others: fail
Parameters
rvd_data: reserved data
len: length of reserved data
Structures
SC_EVENT_GOT_SSID_PSWD
struct smartconfig_event_got_ssid_pswd_t
Argument structure for SC_EVENT_GOT_SSID_PSWD event
Public Members
uint8_t ssid[32]
SSID of the AP. Null terminated string.
uint8_t password[64]
Password of the AP. Null terminated string.
bool bssid_set
whether set MAC address of target AP or not.
uint8_t bssid[6]
MAC address of target AP.
smartconfig_type_t type
Type of smartconfig(ESPTouch or AirKiss).
uint8_t token
Token from cellphone which is used to send ACK to cellphone.
uint8_t cellphone_ip[4]
IP address of cellphone.
smartconfig_start_config_t
struct smartconfig_start_config_t
Configure structure for esp_smartconfig_start
Public Members
bool enable_log
Enable smartconfig logs.
bool esp_touch_v2_enable_crypt
Enable ESPTOUCH V2 crypt.
char *esp_touch_v2_key
ESPTOUCH V2 crypt key, len should be 16.
Macros
SMARTCONFIG_START_CONFIG_DEFAULT
SMARTCONFIG_START_CONFIG_DEFAULT()
Enumerations
smartconfig_type_t
enum smartconfig_type_t
Values:
SC_TYPE_ESPTOUCH = 0
protocol: ESPTouch
SC_TYPE_AIRKISS
protocol: AirKiss
SC_TYPE_ESPTOUCH_AIRKISS
protocol: ESPTouch and AirKiss
SC_TYPE_ESPTOUCH_V2
protocol: ESPTouch V2
smartconfig_event_t
enum smartconfig_event_t
Smartconfig event declarations
Values:
SC_EVENT_SCAN_DONE
ESP32 station smartconfig has finished to scan for APs
SC_EVENT_FOUND_CHANNEL
ESP32 station smartconfig has found the channel of the target AP
SC_EVENT_GOT_SSID_PSWD
ESP32 station smartconfig got the SSID and password
SC_EVENT_SEND_ACK_DONE
ESP32 station smartconfig has sent ACK to cellphone
esp_smartconfig.h
/*F********************************************************************
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
**********************************************************************/
#ifndef __ESP_SMARTCONFIG_H__
#define __ESP_SMARTCONFIG_H__
#include
#include
#include "esp_err.h"
#include "esp_event_base.h"
#ifdef __cplusplus
extern "C" {
#endif
smartconfig_type_t
typedef enum {
SC_TYPE_ESPTOUCH = 0, /**< protocol: ESPTouch */
SC_TYPE_AIRKISS, /**< protocol: AirKiss */
SC_TYPE_ESPTOUCH_AIRKISS, /**< protocol: ESPTouch and AirKiss */
SC_TYPE_ESPTOUCH_V2, /**< protocol: ESPTouch V2*/
} smartconfig_type_t;
smartconfig_event_t
/** Smartconfig event declarations */
typedef enum {
SC_EVENT_SCAN_DONE, /*!< ESP32 station smartconfig has finished to scan for APs */
SC_EVENT_FOUND_CHANNEL, /*!< ESP32 station smartconfig has found the channel of the target AP */
SC_EVENT_GOT_SSID_PSWD, /*!< ESP32 station smartconfig got the SSID and password */
SC_EVENT_SEND_ACK_DONE, /*!< ESP32 station smartconfig has sent ACK to cellphone */
} smartconfig_event_t;
ESP_EVENT_DECLARE_BASE
/** @brief smartconfig event base declaration */
ESP_EVENT_DECLARE_BASE( SC_EVENT );
smartconfig_event_got_ssid_pswd_t
/** Argument structure for SC_EVENT_GOT_SSID_PSWD event */
typedef struct {
uint8_t ssid[32]; /**< SSID of the AP. Null terminated string. */
uint8_t password[64]; /**< Password of the AP. Null terminated string. */
bool bssid_set; /**< whether set MAC address of target AP or not. */
uint8_t bssid[6]; /**< MAC address of target AP. */
smartconfig_type_t type; /**< Type of smartconfig(ESPTouch or AirKiss). */
uint8_t token; /**< Token from cellphone which is used to send ACK to cellphone. */
uint8_t cellphone_ip[4]; /**< IP address of cellphone. */
} smartconfig_event_got_ssid_pswd_t;
smartconfig_start_config_t
/** Configure structure for esp_smartconfig_start */
typedef struct {
bool enable_log; /**< Enable smartconfig logs. */
bool esp_touch_v2_enable_crypt; /**< Enable ESPTOUCH V2 crypt. */
char* esp_touch_v2_key; /**< ESPTOUCH V2 crypt key, len should be 16. */
} smartconfig_start_config_t;
SMARTCONFIG_START_CONFIG_DEFAULT
#define SMARTCONFIG_START_CONFIG_DEFAULT() { \
.enable_log = false, \
.esp_touch_v2_enable_crypt = false,\
.esp_touch_v2_key = NULL \
};
esp_smartconfig_get_version
/*F********************************************************************
* * @brief Get the version of SmartConfig.
* @return
* - SmartConfig version const char.
**********************************************************************/
const char*
esp_smartconfig_get_version( void );
esp_smartconfig_start
/*F********************************************************************
* @brief Start SmartConfig, config ESP device to connect AP. You need to broadcast information by phone APP.
* Device sniffer special packets from the air that containing SSID and password of target AP.
* @attention 1. This API can be called in station mode.
* @attention 2. Can not call esp_smartconfig_start twice before it finish, please call
* esp_smartconfig_stop first.
* @param config pointer to smartconfig start configure structure
* @return
* - ESP_OK: succeed
* - others: fail
**********************************************************************/
esp_err_t
esp_smartconfig_start( const smartconfig_start_config_t *config );
esp_smartconfig_stop
/*F********************************************************************
* @brief Stop SmartConfig, free the buffer taken by esp_smartconfig_start.
* @attention Whether connect to AP succeed or not, this API should be called to free
* memory taken by smartconfig_start.
* @return
* - ESP_OK: succeed
* - others: fail
**********************************************************************/
esp_err_t
esp_smartconfig_stop( void );
esp_esptouch_set_timeout
/*F********************************************************************
* @brief Set timeout of SmartConfig process.
* @attention Timing starts from SC_STATUS_FIND_CHANNEL status. SmartConfig will restart if timeout.
* @param time_s range 15s~255s, offset:45s.
* @return
* - ESP_OK: succeed
* - others: fail
**********************************************************************/
esp_err_t
esp_esptouch_set_timeout( uint8_t time_s );
esp_smartconfig_set_type
/*F********************************************************************
* @brief Set protocol type of SmartConfig.
* @attention If users need to set the SmartConfig type, please set it before calling
* esp_smartconfig_start.
* @param type Choose from the smartconfig_type_t.
* @return
* - ESP_OK: succeed
* - others: fail
**********************************************************************/
esp_err_t
esp_smartconfig_set_type( smartconfig_type_t type );
esp_smartconfig_fast_mode
/*F********************************************************************
* * @brief Set mode of SmartConfig. default normal mode.
* @attention 1. Please call it before API esp_smartconfig_start.
* @attention 2. Fast mode have corresponding APP(phone).
* @attention 3. Two mode is compatible.
* @param enable false-disable(default); true-enable;
* @return
* - ESP_OK: succeed
* - others: fail
**********************************************************************/
esp_err_t
esp_smartconfig_fast_mode( bool enable );
esp_smartconfig_get_rvd_data
/*F********************************************************************
* * @brief Get reserved data of ESPTouch_v2.
* @param rvd_data reserved data
* @param len length of reserved data
* @return
* - ESP_OK: succeed
* - others: fail
**********************************************************************/
esp_err_t
esp_smartconfig_get_rvd_data( uint8_t* rvd_data, uint8_t len);
#ifdef __cplusplus
}
#endif
#endif
